Holistic

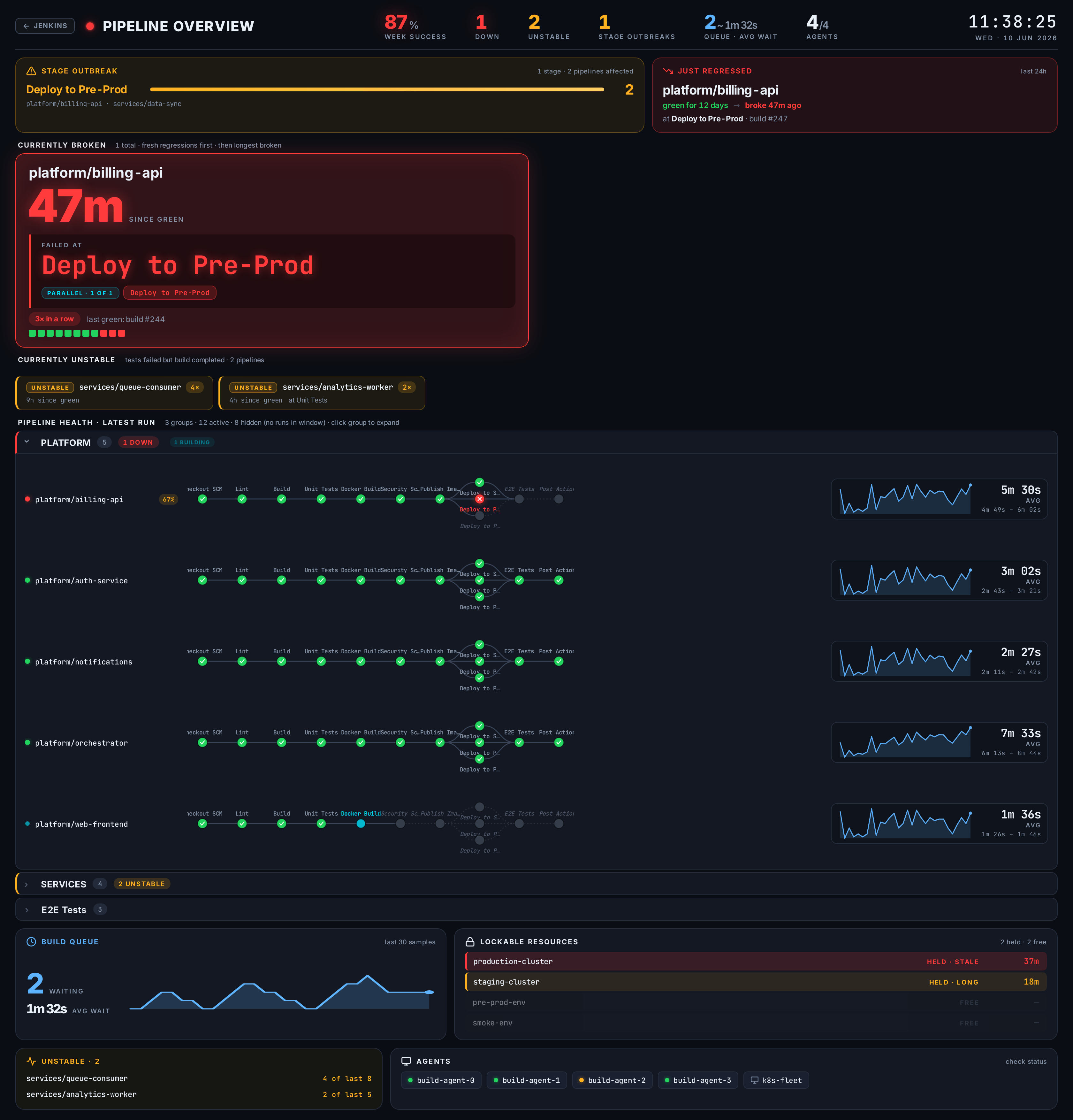

Jenkins dashboard for a TV in the office. shows what's broken, where, and for how long. designed to be read from across the room.

top strip is the at-a-glance state of your CI: weekly success rate, how many pipelines are currently down, how many are unstable, how many stage outbreaks are happening, build queue + avg wait, agents healthy / total.

below that:

• stage outbreak clusters broken pipelines by which stage they failed at. when 5 pipelines all break at "Deploy" or "E2E Tests" it's almost always a shared library or shared infra problem and you want to know fast.
• just regressed flags pipelines that were green for at least 6h then broke in the last 24h. the scariest class of failure because something just changed.
• currently broken shows pipelines whose latest build failed. fresh regressions (broke in the last 24h after >= 6h green) get the top cards so today's actionable failures don't get buried; the rest follow, longest-broken first.
• currently unstable is its own smaller section, separate from broken, since "tests failed but build completed" is a different problem from "the build itself blew up".
• pipeline health expands per group, each pipeline rendered like jenkins' native stage view but smaller, with curved bezier connectors. parallel branches fan out vertically, each branch keeping its own inner stage sequence.
• exec time graph per pipeline shows the last 30 successful build durations as a sparkline + avg + range. trend chip lights up amber if builds are getting consistently slower (↑ %) or green if faster (↓ %).
• build queue with a 60-sample sparkline. sustained queue depth is your signal to add agents.
• lockable resources pulses amber after 15min held, red after 30min. catches stuck CI environments before someone notices manually.
• agents panel at the bottom (k3s + ec2 fleet style).

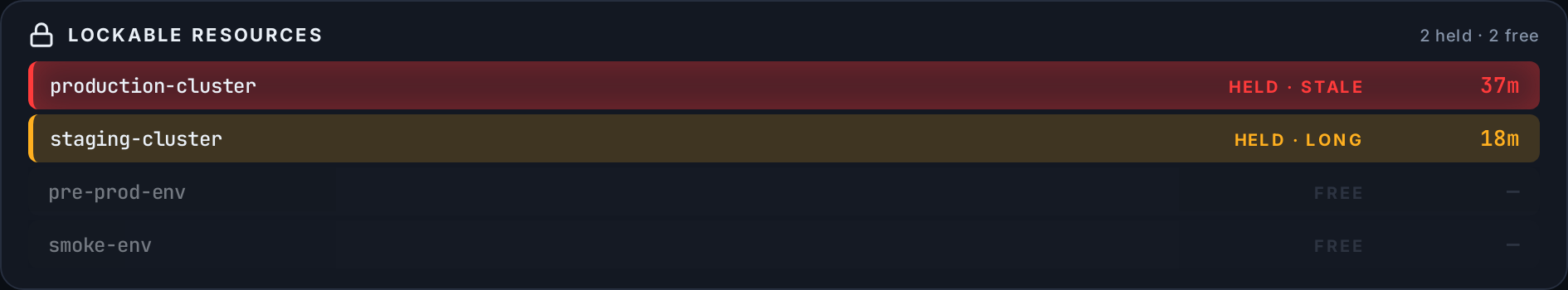

the lockable resources panel only shows when the lockable-resources plugin is installed, and it sorts the most-stuck locks to the top so a resource held far too long is the first thing you see:

Manage Jenkins → Plugins → Available plugins, search Holistic, install, and restart. With JCasC or a plugins list, add holistic.

Offline / air-gapped: grab holistic.hpi from a release (or mvn package it yourself) and drop it in $JENKINS_HOME/plugins/, or bake it into a docker image:

COPY holistic.hpi /usr/share/jenkins/ref/plugins/

with PLUGINS_FORCE_UPGRADE=true so a newer bundled HPI replaces an older one on the persistent volume.

JCasC. simplest setup, auto-discover everything jenkins knows about:

jenkins:
  views:
    - holistic:
        name: "Pipeline Overview"
        autoDiscover: true

that's it. groups are inferred from folder name or first dash-prefix of the job name (so platform-billing-api/main ends up under "PLATFORM"). PR branches and inactive pipelines get filtered out.

if you want a curated subset instead:

jenkins:
  views:
    - holistic:
        name: "Pipeline Overview"
        refreshIntervalSeconds: 30
        historyDays: 30
        groups:
          - name: "Platform"
            pipelines:
              - jobName: "platform/auth-service/main"
              - jobName: "platform/billing-api/main"
          - name: "Services"
            pipelines:
              - jobName: "services/analytics-worker/main"
              - jobName: "services/queue-consumer/main"
          - name: "E2E Tests"
            pipelines:
              - jobName: "scheduled-e2e-staging"
              - jobName: "scheduled-e2e-prod"

other knobs:

• refreshIntervalSeconds. how often the dashboard re-fetches. default 30, min 5.
• historyDays. how far back to look for week stats, exec times, regression detection. default 30, max 90. pipelines with no builds in this window get filtered out as inactive.
• dashboardTitle. heading text in the command strip.
• autoExcludeFolders. list of folder prefixes auto-discover should skip, e.g. ["sonar", "releases"] if you want to ignore sonar scan jobs.

once a view is configured (above), there are two ways to open it:

• embedded: open the view from the Jenkins views bar (or /view/<name>/). renders inside Jenkins with the normal sidebar and breadcrumbs. good for day-to-day use, and it respects the active Jenkins theme (light or dark).
• full-screen: click Pipeline Overview in the left sidebar. opens the dashboard chromeless and full-screen with a small "← Jenkins" back button, sized to be read across the room. bookmark that URL (/pipeline-overview/) on your office TV browser and walk away.

both render the same dashboard off the same view config; the full-screen entry just drops the Jenkins chrome.

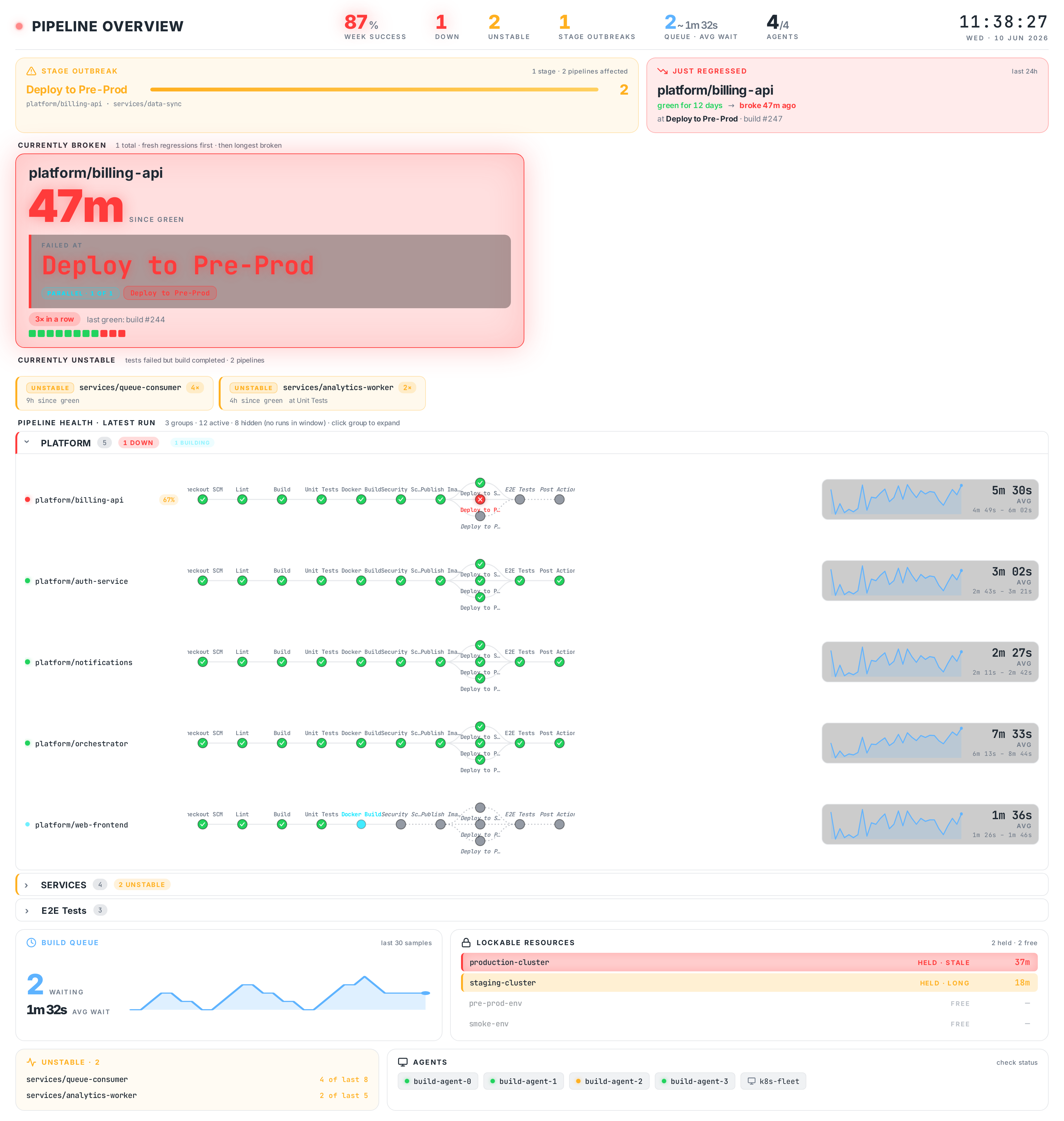

the embedded view follows the active Jenkins theme. the dark full-screen look is at the top of this README; here is the same dashboard in a light theme:

open docs/preview.html in a browser. it mocks the data so the dashboard renders without needing a jenkins. useful if you just want to see what the layout looks like before installing.

mvn package

needs JDK 17+, maven 3.6+. targets jenkins 2.541+. depends on workflow-api, workflow-job, pipeline-rest-api, ionicons-api, caffeine-api. lockable-resources is an optional dependency: the locks panel only loads when that plugin is installed, otherwise it's skipped.

• multibranch jobs: auto-discover treats <multibranch>/main as one entry. branches matching PR-* get skipped.
• declarative parallel { stage(...) } blocks render as fanned-out branches; a branch with nested stages keeps that inner sequence, the same shape as jenkins' native stage view.
• folder-organised jobs (releases/X, sonar/X) get the top-level folder name as their group.
• the historyDays window is doing a lot of work. pipelines with no builds in it get filtered out entirely. so a pipeline that's been broken for 3 months but nobody touches won't show up unless you bump the window.
• if a build is UNSTABLE because a post-build test publisher (junit/jacoco) flagged it, but every individual stage was technically SUCCESS, the dashboard propagates UNSTABLE to the last non-skipped stage so the visual matches the build's overall result.

apache 2.0
