vManager Charts

A Jenkins plugin that adds an interactive vManager Charts view to any Jenkins job, showing build trends and live, per-build numeric metrics fetched straight from a Cadence Verisium Manager (vManager) server.

The built-in trend charts (build duration, success/failure rate) work out-of-the-box for any job. The Custom Metrics feature additionally lets you connect to a Verisium Manager server and chart Session, vPlan and Coverage attributes per build.

Plugin development and support is made by Cadence Design Systems.

Cadence Verisium Manager exposes a REST API (vAPI) for querying regression, session, coverage and vPlan data. This plugin uses that API to:

• Attach a numeric value (per metric, per build) to every build of a job, and
• Render those values together with Jenkins' own build-history data on a dedicated vManager Charts page in the job's left sidebar.

There is no required pre-existing integration with the Cadence vManager Plugin - the charts plugin can read session names from a workspace file. However, when the vManager Plugin is also installed, this plugin can pick up session names automatically.

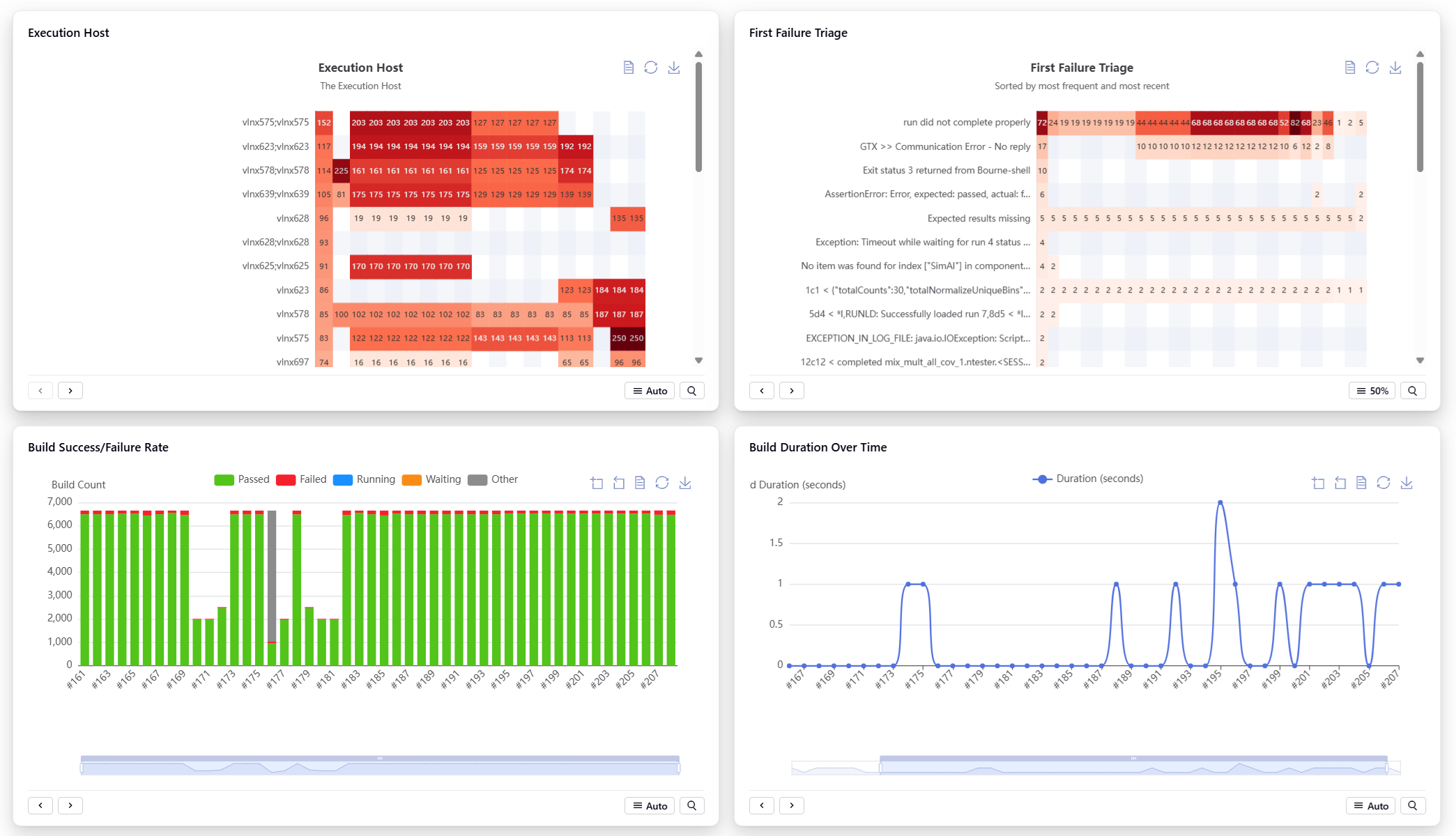

Example - job-level dashboard:

• Job-level integration - adds a vManager Charts link to the job's left sidebar; rendering uses the ECharts API plugin for zoom, tooltips and PNG export.
• Build-level charts - a separate vManager Charts link is also added to every individual build's sidebar. These charts are populated per build (not aggregated across the job) and currently include the Runs Duration Chart, which renders a distribution of the build's runs (only passed runs) by start time (X axis) and run duration (Y axis), so you can spot if there's any potential for faster turn-around time for the overall regression (see Runs Duration Chart below for details).
• Build Duration Chart - line chart showing each build's wall-clock duration over the configured window (50 last builds) (no Verisium Manager server required).
• Success/Failure Rate Chart - stacked bar chart of build outcomes (success / failure / unstable / aborted) over the configured window (50 last builds) (no Verisium Manager server required).
• Custom Metrics charts sourced from Verisium Manager vAPI:
  • Session Level - Chart on any numeric session attribute across the build's sessions (one POST to /rest/sessions/list per chart).
  • vPlan Level - Chart on any any numeric vPlan attribute under a vPlan + optional hierarchy path (one POST to /rest/vplan/get per hierarchy).
  • Coverage Level - Chart on any numeric coverage attribute under an optional coverage hierarchy + verification scope (one POST to /rest/metrics/get per hierarchy). (Attributes that share the same hierarchy only need to have the verification scope filled in for the first one.)
• Custom Grouped Run's Chart (Heatmap) - aggregated run-level chart that groups the build's runs by any RUN_LEVEL attribute exposed by vManager (e.g. first_failure_description, host, status, seed ...) and renders the result as a heat-map of most-recent N builds × group values, with each cell coloured by the number of runs in that bucket. Each chart instance has its own title, group-by attribute, Y-axis limit, max-builds window and an optional Statuses multi-select that restricts the underlying /rest/runs/list query to runs whose status matches one of the picked values (running, finished, other, waiting, stopped, passed, failed). Leaving the Statuses selector empty counts runs in every status.
• Two configuration sources - GUI (wizard) or JSON file loaded at build time (from the agent workspace for freestyle jobs, from the build's work dir on the controller for pipeline jobs). Pick the JSON path for fully data-driven, per-build chart definitions; see Configuration source.
• Export configuration to JSON - one-click export of the current GUI configuration to a JSON file you can check into source control, hand-edit and later drop into a build's workspace (freestyle) or work dir on the controller (pipeline) as the JSON config source. Credentials, server URL and session source are intentionally not exported.
• Per-metric chart type: line, bar or scatter.
• Multiple charts per job, each with its own title, max-builds window and list of metrics.
• Same attribute, multiple times in a chart - supported via the per-metric Nickname field; one REST fetch fans out to all duplicates.
• Refinement files for Coverage / vPlan attribute resolution.
• Live form validation - every server-dependant field pings vManager and shows red inline errors on the spot (auth/404/TLS/connection failures, etc.).
• Verbose build logging toggle - by default the per-build console is quiet (only WARNING / error lines from the plugin are printed). Tick Verbose build logging on the job to get every REST URL, request header, payload, response routing OID and per-session listing on the build's console while reproducing an issue.
• System-log diagnostics at FINE - the same trace lines are also emitted to Jenkins' system log via java.util.logging at FINE level under the package org.jenkinsci.plugins.vmanager.charts. They are hidden by default; enable them via a Log Recorder (see System log diagnostics).
• REST de-duplication - attribute lists (per entity type) and the vPlan list are fetched at most once per configuration page load and reused across every combobox row, regardless of how many charts / metrics you have configured.
• Pipeline-friendly - the job property is configured via the standard Jenkins Configure UI; no DSL step is required.

Required:

• ECharts API plugin (5.6.0+)
• Credentials plugin
• Plain Credentials plugin
• Ionicons API plugin

Optional:

• JUnit plugin - required for the Test Results built-in chart.
• Cadence vManager Plugin - required only when the Session source is set to Leverage vManager Jenkins Plugin Information.

1. Manage Jenkins ? Plugins ? Advanced settings.
2. Under Deploy Plugin, choose vmanager-charts.hpi and upload.
3. Restart Jenkins when prompted.

1. Copy vmanager-charts.hpi to $JENKINS_HOME/plugins/.
2. Restart Jenkins.

All configuration lives in the job's Configure page, under the vManager Charts section.

The checkboxes below are shown only when Configuration source = GUI:

Server URL, credentials, the session source and the verbose-logging flag are always taken from the GUI, even when the Configuration source is set to JSON file from workspace.

Select where the per-build session names come from - these names drive every custom-metric REST call.

If a build has no sessions (file missing, file empty, vManager Plugin didn't record any), every custom metric for that build is recorded as 0 and the build log will contain a skipped (no sessions or no id) = 0 line per metric, so the chart still has a data point.

Click Add Custom Chart for every chart you want on the vManager Charts page. Each chart has:

Then add one or more Metrics to the chart.

To minimise vAPI traffic the plugin batches metrics into a single REST call when they share the same hierarchy path within a chart:

• Coverage Level metrics are grouped by Coverage Hierarchy (treating blank as one bucket). Inside a group, only the first metric's Verification Scope and Refinement Files are sent; later metrics in the same group inherit them and any value typed into their own Verification Scope / Refinement Files fields is ignored for the REST request.
• vPlan Level metrics are grouped by Hierarchy Path (blank = one bucket). Inside a group, only the first metric's Refinement Files and vPlan Refinement Files are used; later metrics' lists are ignored.

In practice this means: if two metrics in the same chart share the same hierarchy but need different verification scopes or different refinement files, give each one a different hierarchy (or split them into separate charts). If they truly share a hierarchy, only fill the scope and refinement-file fields on the first metric; the others can leave them blank.

The chart's vPlan (name + type) is configured once per chart and is shared by every vPlan-level metric in that chart.

If a metric is saved with a blank Attribute Name, or its REST call returns no value, the build records 0 for that metric and a warning is written to the build log:

[vManager Charts] [<chart title>] '<metric>' (<level>) skipped (no sessions or no id) = 0

Charts will still render - the missing builds simply show 0.

• vManager Server URL - must start https://. Empty or malformed: red outline, inline error, Save is blocked while you stay on the page.
• Attribute Name - required. The form pings vManager when you change the attribute, server URL or credentials, and surfaces server-side errors inline (auth, 404, TLS, connection refused, ...).
• Nickname:
  • Must be unique within a chart when set.
  • Becomes mandatory when the same attribute is picked more than once in the chart - every duplicate occurrence must carry its own nickname so the chart can tell them apart. The form turns the offending nickname inputs red and blocks Save until each duplicate has a nickname.
• Maximum builds - non-negative integer; 0 is allowed but produces a yellow warning that the chart will scan the entire job history.

Shown only when Configuration source = GUI and Show Custom Grouped Run's Charts is on. Each instance produces a separate heat-map under the vManager Charts page. Click Add Grouped Run's Chart for every heat-map you want; each one is configured independently with the fields below.

Per chart the plugin issues one POST per build using for the build's sessions, grouped by the picked attribute and sorted DESC by number_of_entities. The resulting map of group-value → count is stored on the build and rendered as a heat-map cell.

1. Open any job's Configure page.
2. Tick Enabled under vManager Charts (it is on by default once the property is added).
3. Decide which built-in charts you want; uncheck the ones you don't.
4. To add custom metrics:
   1. Tick Show Custom Metrics.
   2. Enter the vManager Server URL and pick Credentials.
   3. Choose your Session source.
   4. Click Add Custom Chart, fill Chart Title and Maximum builds.
   5. (Optional) Pick a vPlan Type and vPlan - required only if any metric on this chart will be vPlan Level.
   6. Click Add Metric for each series, fill in the fields above.
5. Save.
6. Run a build. After the build finishes, the metrics are fetched and stored as a CustomMetricsBuildAction on the build (a RunListener does the work, so no custom build step is needed).
7. Open the job page and click vManager Charts in the left sidebar.

The first time you open the page after enabling custom metrics, only the builds run after that moment will have custom values - historical builds simply show 0 for the new metrics.

By default the per-build console only shows WARNING and error lines from the plugin. Server-side failures are logged at WARNING and recorded as 0 for the build so the chart still renders.

When reproducing an issue, tick Verbose build logging on the job configuration to also print every chatty [vManager Charts] trace line to the build's console (REST URLs, request headers, payloads, response routing OIDs, per-session listings and the per-metric summary line, e.g.):

[vManager Charts] Configuration source: GUI (job configuration page).
[vManager Charts] sessions input file: .../42.42.sessions.input (1 session)
[vManager Charts]   session: vmgr.linux64.x86_64.agile_mdv.051226
[vManager Charts] POST https://host:port/vmgr/vapi/rest/sessions/list
[vManager Charts]   payload: { ... }
[vManager Charts] [Coverage Closure] 'Expression Hit' (COVERAGE_LEVEL id='CoverageAttributes.EXPRESSION_HIT' hierarchy='top.uart' scope='cover' refinement=2) = 87.43
[vManager Charts] [Session KPIs] 'Passed' (SESSION_LEVEL id='SessionAttributes.PASSED_RUNS' sessions=3) = 412

Turn it back off once you're done to keep the console clean.

The same diagnostic traces are also emitted through Jenkins' java.util.logging system, under the logger org.jenkinsci.plugins.vmanager.charts, at level FINE. They are hidden by default - enable them via a Log Recorder:

1. Manage Jenkins ? System Log (under Status Information).
2. Add new log recorder ? name it e.g. vManager Charts ? Create.
3. Under Loggers, click Add and enter:
   • Logger: org.jenkinsci.plugins.vmanager.charts
   • Log level: FINE (or FINEST for maximum detail)
4. Save, then open the recorder and click Log records.

The recorder is global (visible to all Jenkins users); the per-job Verbose build logging checkbox above controls only the per-build console and is opt-in per job.

This chart analyzes the duration of all runs within a session (or across multiple sessions). It sorts them by runtime and divides them into three equal groups:

• Shortest 33%
• Middle 33%
• Longest 33%

In an optimized TAT scenario, the longest tests (red) should start first, followed by medium (yellow), and finally the shortest (green). If all tests start at the same time, it indicates that the environment is not configured for optimal TAT. This visualization allows users to immediately spot the issue.

The ability to maximize the TAT (Turnaround Time) is provided by the Verisium Manager Regression Health capability.

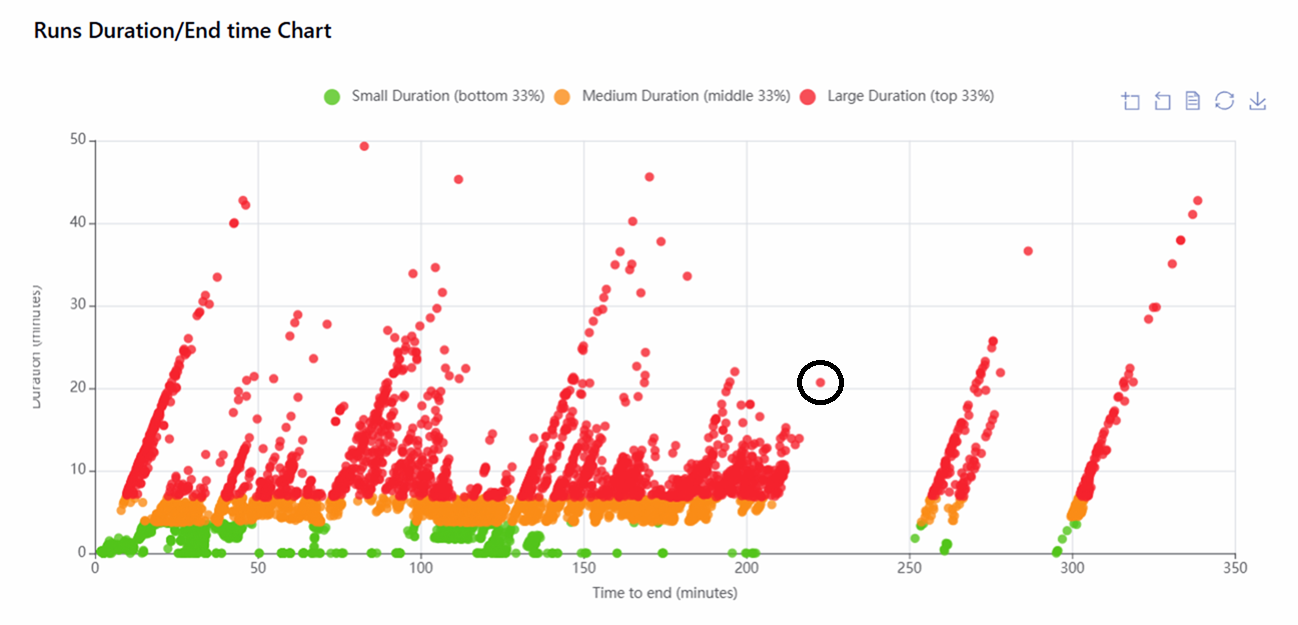

Example - TAT is not maximized:

Example - TAT is maximized (via Verisium Manager Regression Health):

In both examples above you can see one initial regression followed by two consecutive reruns that start after the previous one ends. The gap between each cluster of runs tells you how much time passes between when the first regression execution ends and when the next rerun actually starts - useful for spotting idle time in the overall regression pipeline.

The vManager Charts sidebar link doesn't appear. Make sure the vManager Charts job property is added on the job's Configure page and Enabled is ticked.

Custom charts are empty / all zeros.

• Confirm the build log has [vManager Charts] lines. If not, the RunListener didn't run - check that the property is enabled and that Show Custom Metrics is on.
• Check the build log for WARNING lines from [vManager Charts] - they contain the underlying vAPI error.
• Verify Session source: with the vManager Plugin option, the build must have actually launched a vManager session. With the Input file option, verify the file exists in the workspace and that its name matches the configured path (or the default ${BUILD_NUMBER}.${BUILD_ID}.sessions.input).

Two metrics with the same attribute show the same value. Add a Nickname to each. The plugin will refuse to save without one when the attribute is duplicated within a chart.

Refinement files / verification scope on a metric look ignored. This is expected when another metric in the same chart uses the same hierarchy - only the first metric's scope and refinement-file list are sent (see the batching note above). Give each one a different hierarchy, or move them into separate charts.

vPlan combobox is empty. Either vPlan Type is not set to DB, or POST {serverUrl}/rest/vplan/list-vplans failed (check the system log; the field's red inline error will also tell you).

Charts don't load at all.

• Ensure the ECharts API plugin is installed and enabled.
• Open the browser console; missing JS dependencies show up there.

Under Charts configuration the job offers two radio options:

• GUI (configure charts below) (default) - the chart selection and Custom Chart definitions come from the wizard on the same page (this is what the rest of this README describes).
• JSON file - at build completion the plugin loads a JSON file and uses it to replace the entire chart configuration for that build. The path is taken from the Config JSON File field; when blank, the plugin looks for vmanager-charts-config.json. Where the file is expected to live depends on the job type — see below.

For pipeline jobs there is no single persistent agent workspace, so the file must be available on the controller. Three common ways to get it there:

1. Use the vManagerChartHelper pipeline step provided by this plugin inside your pipeline (after your vManager regression step). It copies ${BUILD_NUMBER}.${BUILD_ID}.sessions.input, ${BUILD_NUMBER}.${BUILD_ID}.session_launch.output and vmanager-charts-config.json from the agent workspace into the build's work dir on the controller.
2. Use a stash / unstash (or archiveArtifacts) pair to bring the file to the controller and then write it under the build's work dir.
3. Generate / drop the file directly on the controller via the Config JSON File field (absolute path).

After each successful FILE-mode build, the plugin also mirrors the loaded JSON next to the build log as vmanager-charts-config.json so the job-level and build-level chart pages can render the right sections even after the workspace is wiped or the agent is offline.

Even when JSON file is selected, the following continue to come from the GUI (and must be filled in on the GUI):

• vManager Server URL
• Credentials
• vManager Session (source + input-file path)
• Verbose build logging

If the JSON file is missing, unreadable, or contains "enabled": false, the build is recorded with a single warning line and no charts are populated for that build.

The Charts configuration section contains an Export configuration to JSON button. Clicking it serializes the current GUI configuration to the browser as vmanager-charts-config.json. The export intentionally omits:

• credentialsId

• serverUrl

• sessionSource / sessionInputFile

• verboseLogging

• configSource / configFilePath

• so the exported file is safe to commit to source control and to share across jobs / Jenkins instances.

The loader accepts the JSON shape produced by the exporter; any field may be omitted (defaults are applied). Top-level keys:

{
  "enabled":                         true,
  "vManagerSchema":                  "latest",
  "maxBuilds":                       50,

  // Built-in charts � all default to false
  "showBuildLevelCharts":            true,
  "showRegressionOptimizationChart": true,
  "showBuildDuration":               true,
  "showSuccessRate":                 false,

  // Custom charts list
  "showCustomMetrics":               true,
  "customCharts": [
    {
      "title":     "Coverage Closure",
      "vPlanType": "DB",          // "", "DB" or "FILE"
      "vPlanPath": "my_vplan",   // vPlan name (DB) or absolute path (FILE)
      "maxBuilds": 50,
      "metrics": [
        {
          "entityType":         "COVERAGE_LEVEL",     // SESSION_LEVEL | VPLAN_LEVEL | COVERAGE_LEVEL
          "attributeName":      "Expression Hit (CoverageAttributes.EXPRESSION_HIT)",
          "chartType":          "line",               // line | bar | scatter
          "nickname":           "uart-cover",         // unique within chart; required when an attribute is repeated
          "hierarchyPath":      "",                  // VPLAN_LEVEL only
          "coverageHierarchy":  "top.uart",          // COVERAGE_LEVEL only
          "verificationScope":  "cover",             // COVERAGE_LEVEL only
          "refinementFiles":      [{"path": "/abs/refine.refine"}],
          "vplanRefinementFiles": [{"path": "/abs/vplan_refine.refine"}]
        }
      ]
    }
  ]
}

The following fields, even if present in a hand-edited file, are always ignored on load (they come from the GUI): credentialsId, serverUrl, sessionSource, sessionInputFile, verboseLogging, configSource, configFilePath.

mvn -DskipTests clean package

The output is target/vmanager-charts.hpi. Drop it into $JENKINS_HOME/plugins/ and restart Jenkins.

This plugin follows the standard Jenkins project licensing.

For issues and feature requests, please use the project's issue tracker.

• Renamed Test Results built-in chart to Regression Anomaly Detection Summary.
• New Build Level Charts section with the Runs Duration Chart (per-build distribution of runs by start time and duration); accessed via the vManager Charts link added to every build's sidebar.
• New Configuration source radio: choose between GUI and JSON file from workspace. JSON file fully replaces the chart selection at build time; Server URL, credentials, session source and verbose-logging flag stay in the GUI.
• New Export configuration to JSON button that downloads the current GUI configuration as vmanager-charts-config.json, omitting credentials, server URL, session source and the verbose-logging flag.
• New Verbose build logging checkbox - by default the per-build console only shows WARNING / error lines from the plugin. Turn this on to see every REST URL, payload and per-session listing.
• System-log diagnostics demoted from INFO to FINE; enable via a Log Recorder on logger org.jenkinsci.plugins.vmanager.charts at FINE.
• All built-in chart checkboxes (Build Duration, Success/Failure Rate, Regression Anomaly Detection Summary) now default to off so a newly enabled job starts with a clean configuration.
• REST de-duplication: attribute lists per entity type and the vPlan list are fetched at most once per configuration page load and reused across every combobox row.

• Built-in Build Duration, Success Rate, Test Results trend charts.
• Custom Metrics framework with Session / vPlan / Coverage entity types.
• Per-chart vPlan (DB or local file) selection.
• Per-metric Nickname for duplicate attributes within a chart.
• Per-hierarchy batching for vPlan and Coverage REST calls.
• Live in-form validation that pings vManager and surfaces server errors inline; mandatory fields enforced with red outlines that block Save while keeping the user on the page.
