This aims to be a collection of various rolestrategy macros that can be used with Jenkins Role Strategy Plugin.
One of the issues with Jenkins Role Strategy Plugin together with an external OIDC realm is that you should create each group locally in Jenkins. This can be cumbersome when you have many groups, like in enterprise situations. The AuthorizeByAuthority macro, for example, lets you match the user authorities in order to dynamically give access to specific pipelines with certain permissions.
The plugin needs Role Strategy plugin to be installed and configured. Once activated, it will enable several macros that will be available in the Role Strategy Macros page of Role Strategy Plugin.
The plugin actually does not have any configuration per se, but it exposes the macros to the Role Strategy Plugin. Each macro has different functions.
This macro allows you to match user authorities in order to dynamically give access to specific pipelines.
Syntax is:
@AuthorizeByAuthority(template, style)
To use it, configure a new permission template in the Permission Template section in the Role Strategy Plugin and give it a name.
The name of each template will identity a user TEMPLATE in AuthorizeByAuthority. The template name must not contain the default separator character, which is _ and the macro will skip any template that contains this character.
Then, in your external IdP, let's say a Keycloak, define roles for your users with an appropriate naming convention. The roles must contain exactly one separator character. For example, frontend-application_builder and backend-cron_builder are valid, while frontend_application_builder is not.
Presently you can use two different styles:
- PATTERN_TEMPLATE
- TEMPLATE_PATTERN
Where the PATTERN is what will be used to match your authority in the pipeline, and TEMPLATE is the name of the template you have defined above. For example, you assign your user the following roles in Keycloak:
- frontend-application_builder
- backend-cron_builder
- backend-module_viewer
And in Jenkins you have the following pipelines:
- pipeline-deployer-mytest-frontend-application
- pipeline-deployer-mytest-backend-cron
- pipeline-dependencies-my-backend-module
- pipeline-deployer-mytest-frontend-cron
Let's say you have defined two templates, named viewer and builder as above.
In the Manage Roles section of the Role Strategy Plugin, add two roles with the macro:
@AuthorizeByAuthority(viewer, PATTERN_TEMPLATE)
@AuthorizeByAuthority:2(builder, PATTERN_TEMPLATE)

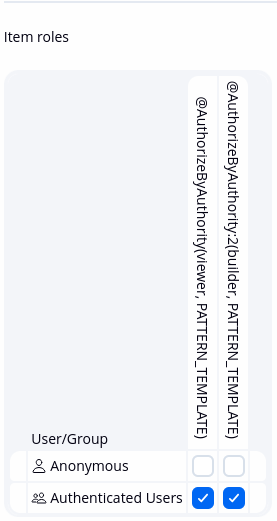

Finally assign the two macros to Authenticated Users in the Assign Roles section of the Role Strategy plugin configuration:
When the user logs in, the PATTERN is extracted from each of his authorities (roles) and then matched against the available pipelines. If a match is found, the user is given the permission corresponding to the TEMPLATE block in their authority, for that match.
Using the PATTERN_TEMPLATE style for example, the frontend-application_builder role will match the /frontend-application/ pattern on every pipeline, and if that matches, the given permissions will be taken from the builder Permission template. If you used the TEMPLATE_PATTERN, the role definition would be expected as reversed, like builder_frontend-application.
In the above case the user will have the viewer template assigned for the pipeline pipeline-dependencies-my-backend-module, and the builder template assigned for the pipelines pipeline-deployer-mytest-frontend-application, pipeline-deployer-mytest-backend-cron.
Both in a situation where pipelines are created by an administrator, automation or scripts, and there is no self service, or where the users can create their own pipeline, it's adviceable to enable naming convention checks on pipeline name definitions. You also can use the ownership plugin for self service pipeline creation access control.
