Description

This plugin adds Gradle Support to Jenkins. Gradle is managed as another tool inside Jenkins (the same way as Ant or Maven), including support for automatic installation and a new build step is provided to execute Gradle tasks.

It also allows detecting Build Scans in arbitrary console logs, for Maven and Gradle builds and display them in the Jenkins UI.

You can have the Gradle Enterprise Gradle plugin and the Gradle Enterprise Maven extension automatically injected into your Gradle and Maven builds. See Gradle Enterprise integration for more details.

Configuration

Gradle configuration is performed in the Configure System (before Jenkins 2.0) or Global Tool Configuration (starting in Jenkins 2.0). In both cases these options reside in the Manage Jenkins section.

In the Gradle section provided by this plugin, several installations can be configured:

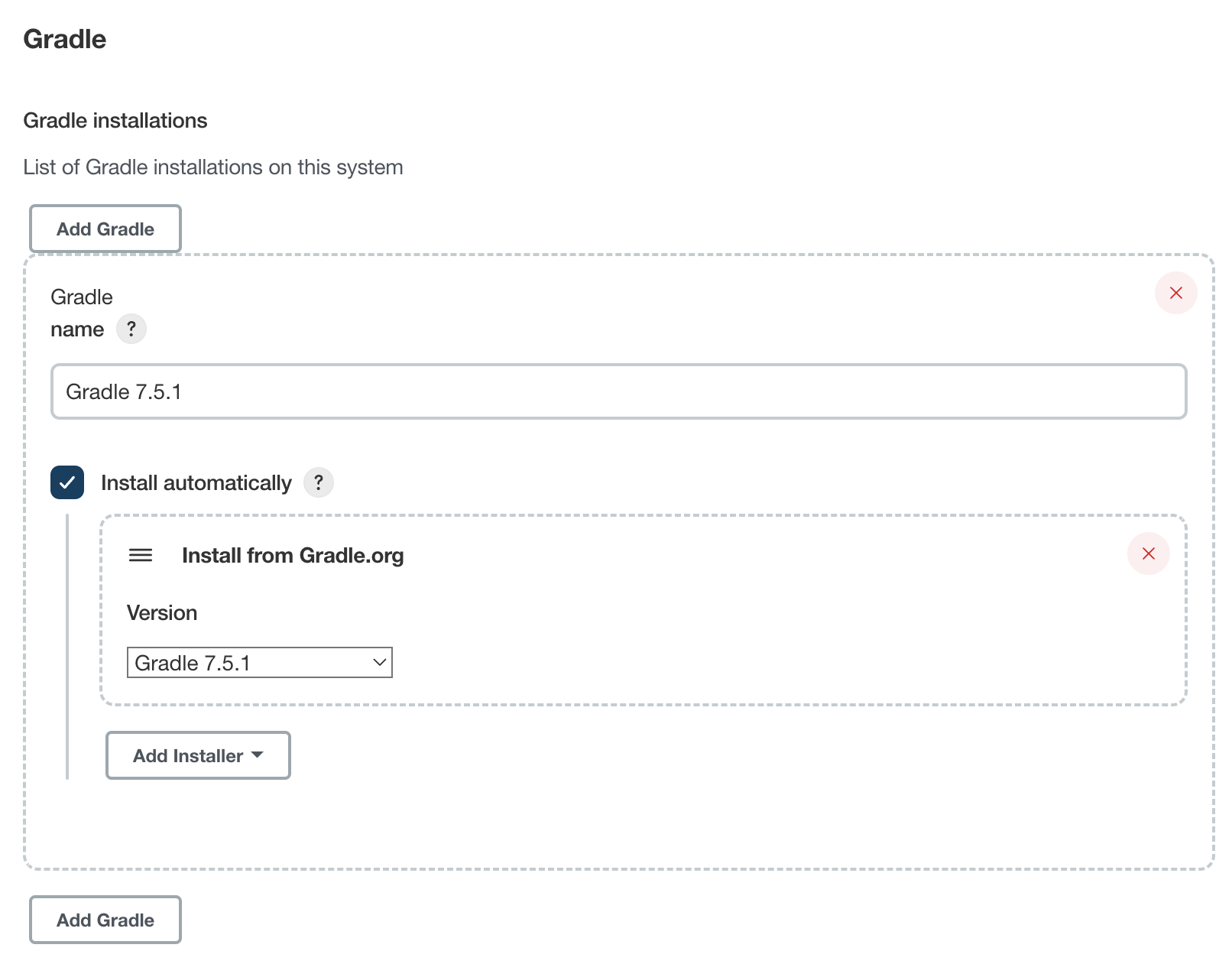

Tool installations

The system provides both automatic installation, which can be performed by directly downloading a Gradle distribution from the Gradle website or executing some shell commands to achieve the same. Besides, for nodes which already have Gradle installed, the tool can be manually configured, by unchecking the Install automatically checkbox and providing the base path (as a GRADLE_HOME environment variable) of the installation.

Usage

The Gradle plugin provides an Invoke Gradle script build step.

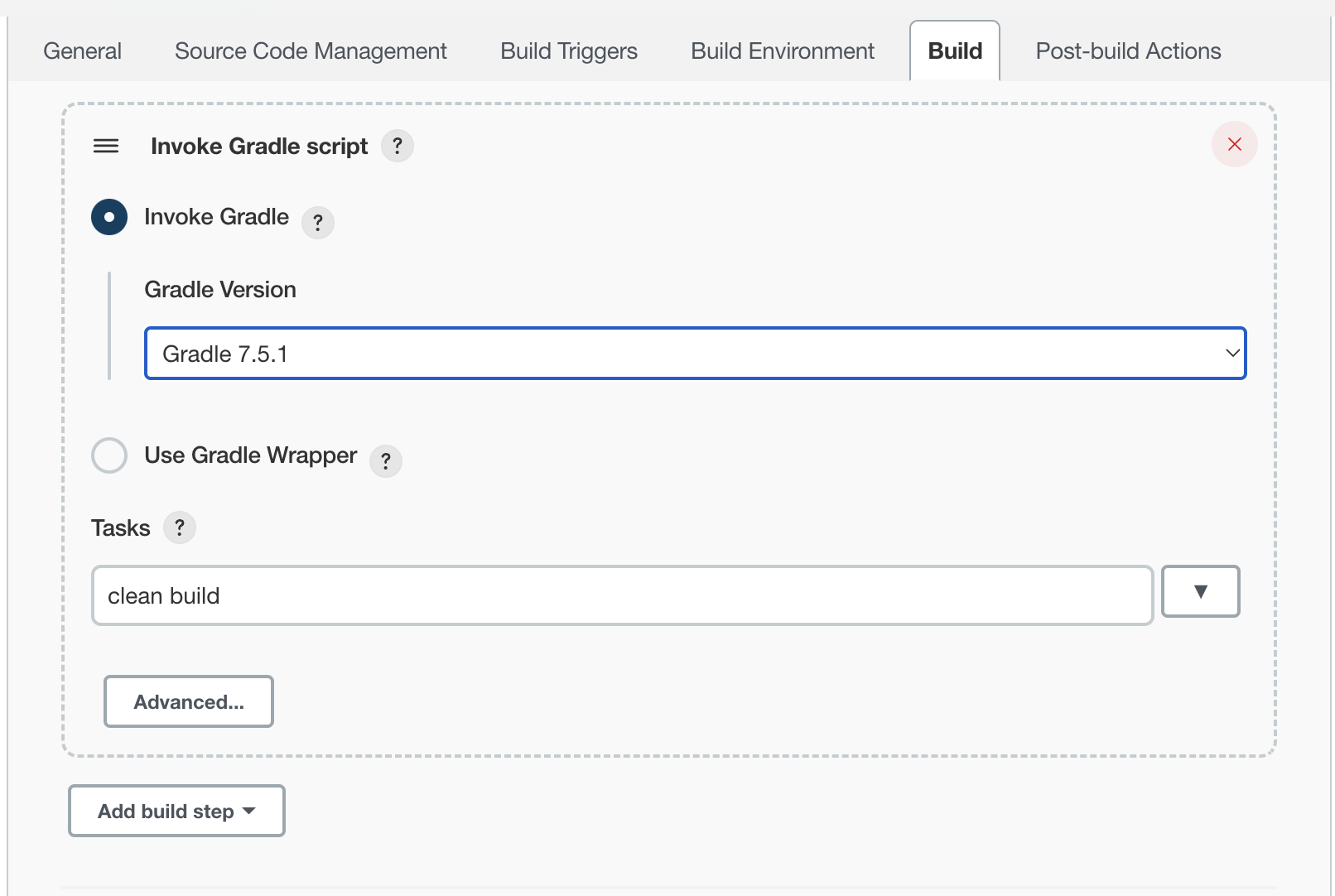

Build step

The first configuration option is whether to use one of the installation configured in Jenkins (see previous section) of use the Gradle Wrapper which is the Gradle-provided mechanism to "embed" the use of a specific Gradle version in a build, installing it if necessary.

Other configuration options include:

  • A description to use for the build step.

  • Switches (options) to provide to the Gradle execution.

  • Tasks to execute (if blank the defaults tasks of the build will be invoked).

  • Path to the build script if different from the root directory of the build.

  • Name of the build script if different from build.gradle.

If a Gradle Build Scan is produced during a build, then a link to it is added to the build page.

Build Scan link

Capturing build scans from the console log

If you are not using the Gradle build step described above, or have a Maven build, you can configure to detect published build scans from the console log. For doing so, go to Build Environment and check Inspect build log for published build scans.

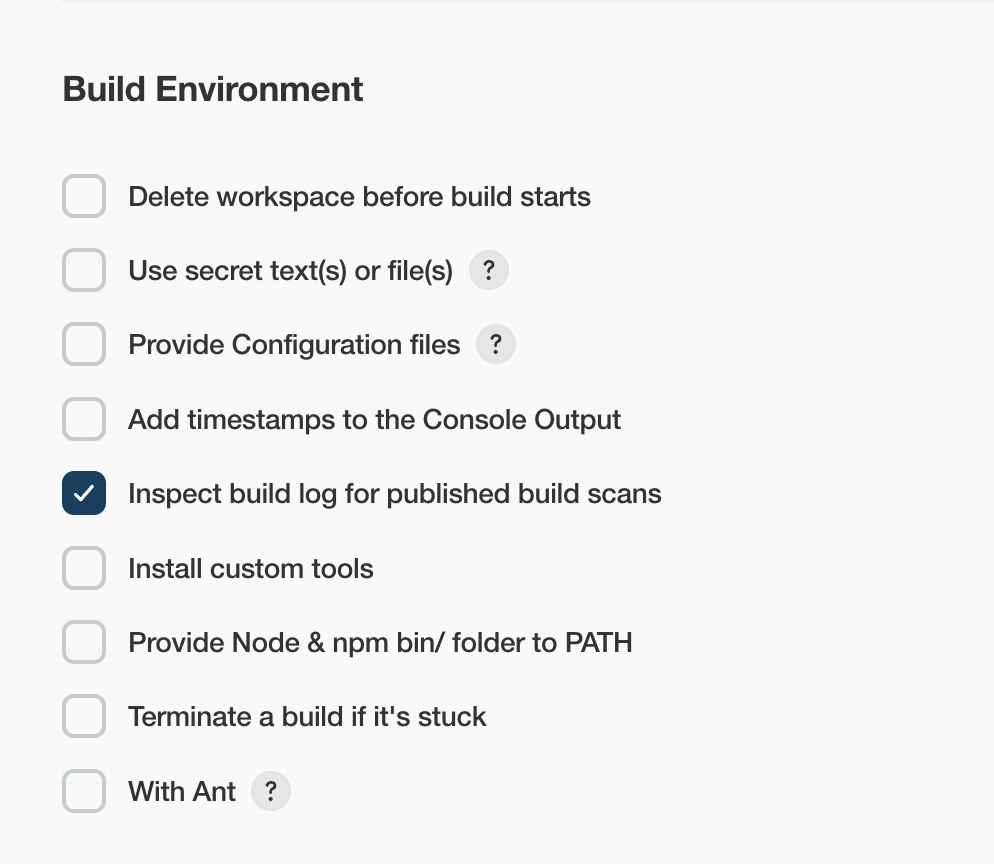

Inspect build log for Build Scan

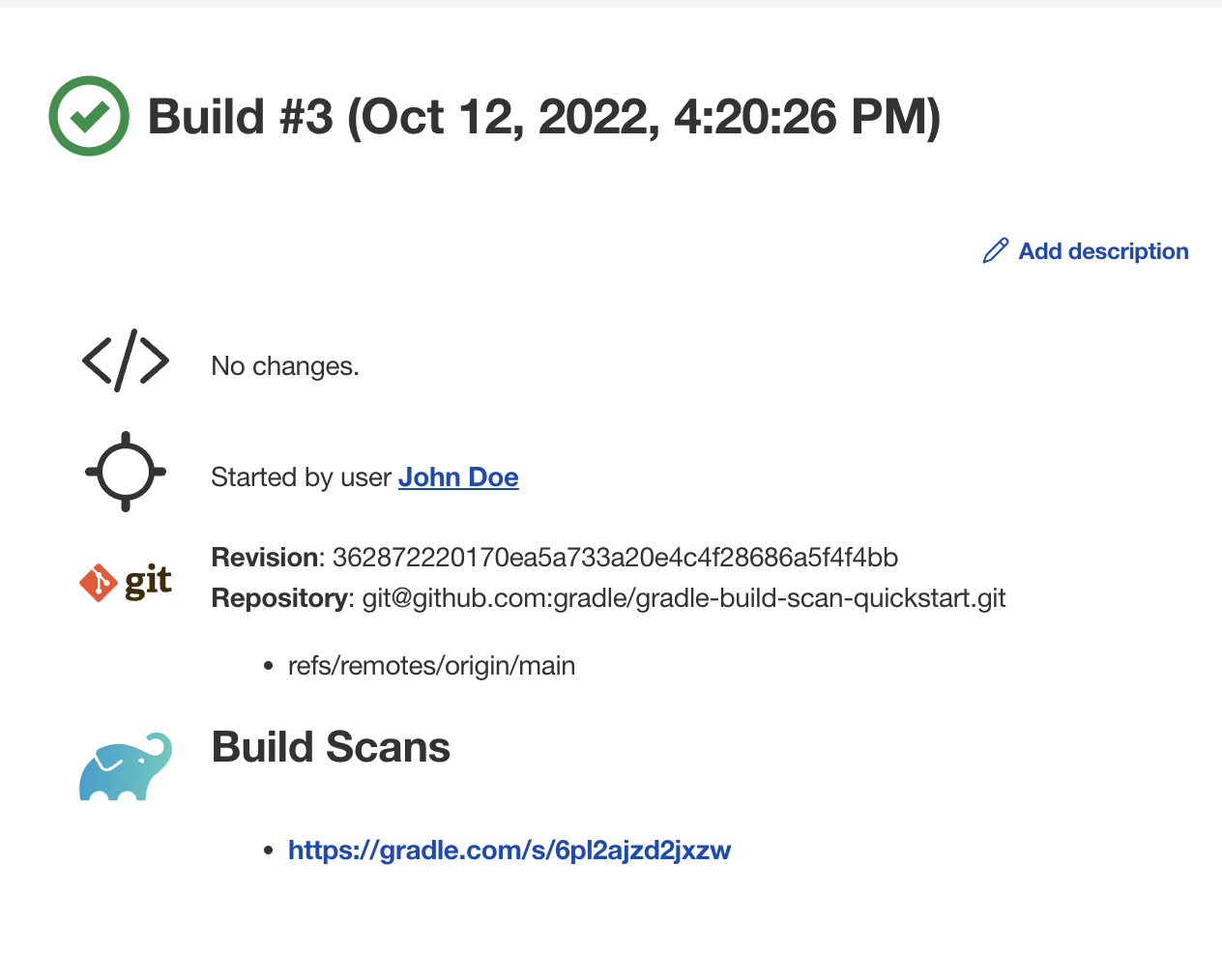

If build scans are detected in the console log of a build, a badge will be added to the build page. This works for build scans produced by Gradle and Maven builds.

Build Scan link

Capturing build scans from Jenkins Pipeline

When using Jenkins pipeline, there is the build step wrapper withGradle which can be used to find the build scans emitted by Gradle or Maven builds and show them on the build page. In order to do so, wrap your sh or bat steps which invoke Gradle or Maven into withGradle.

For example:

node {
  withGradle {
    sh './gradlew build'
  }
}

This causes the shell output to be highlighted and build scan links, which are published, are captured. The captured build scan links are then shown on the build page and in the pipeline steps view.

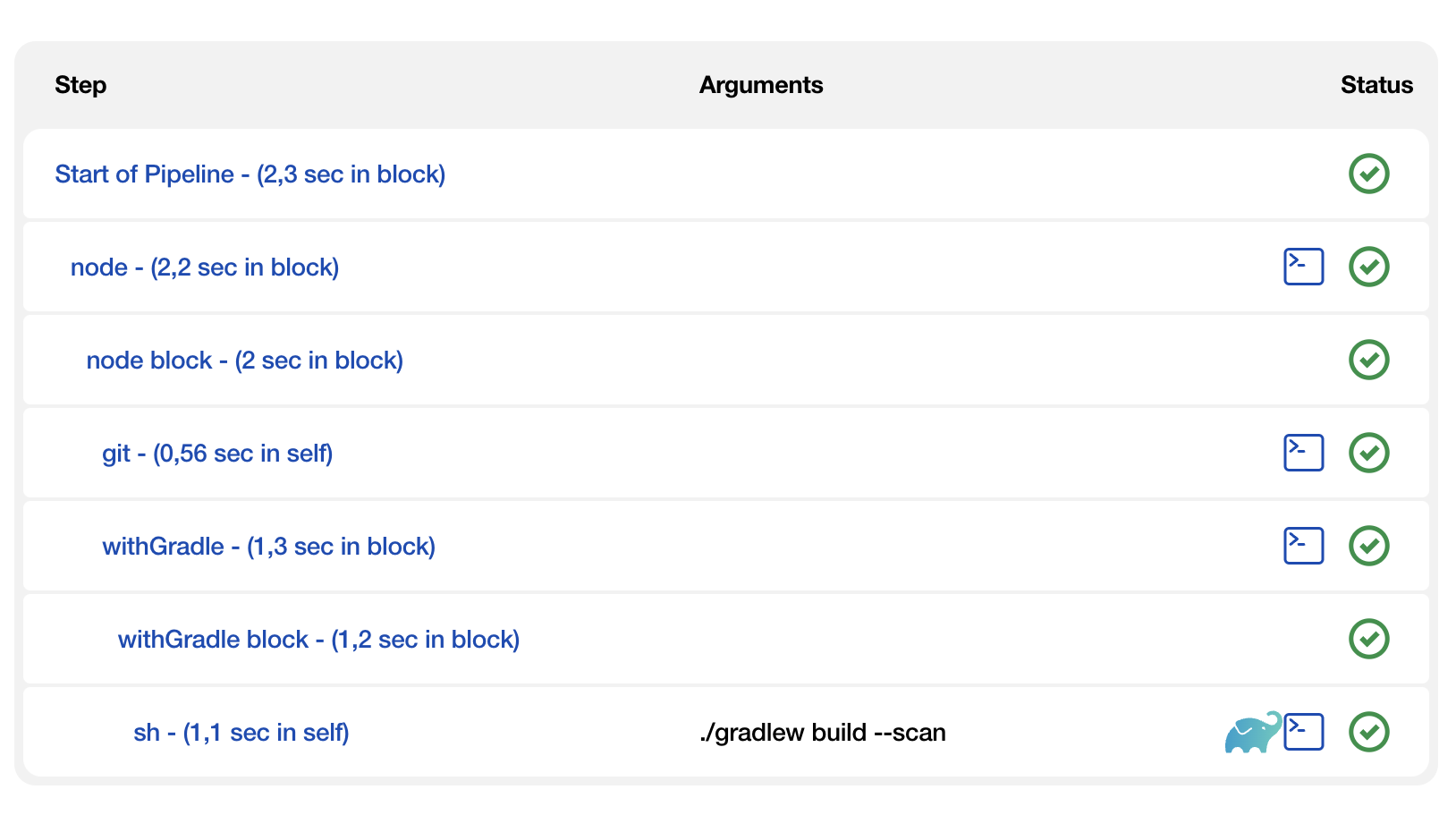

Build scan in pipeline view

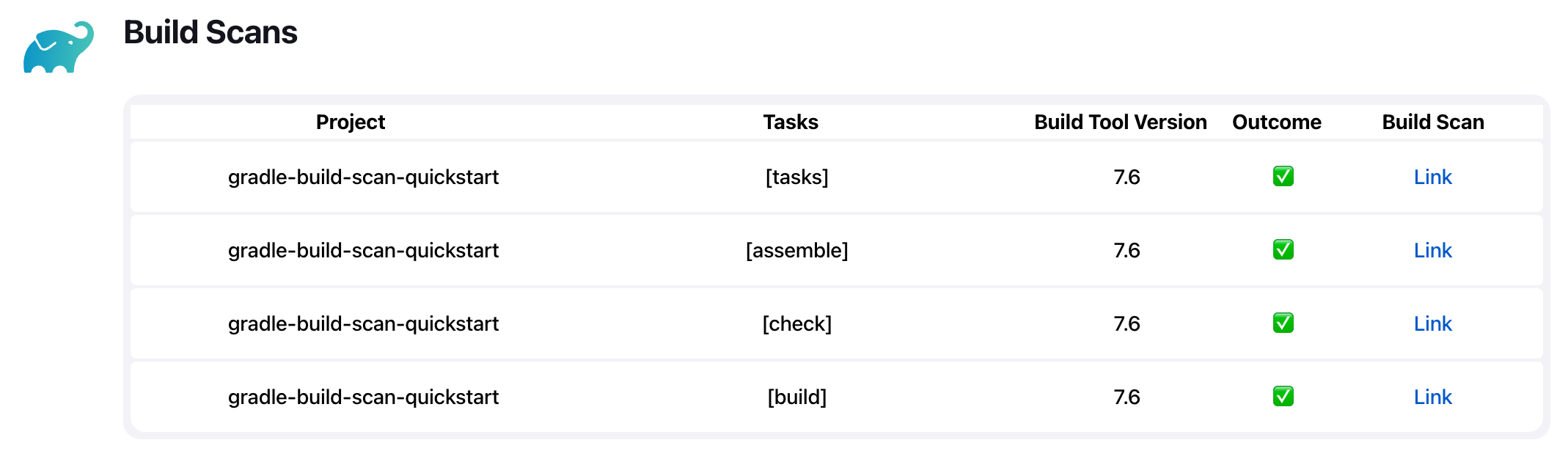

There is also the findBuildScans() step, which finds the build scans in the complete log of the pipeline job. The withGradle wrapper should be used instead, since it also deals well with parallel output.

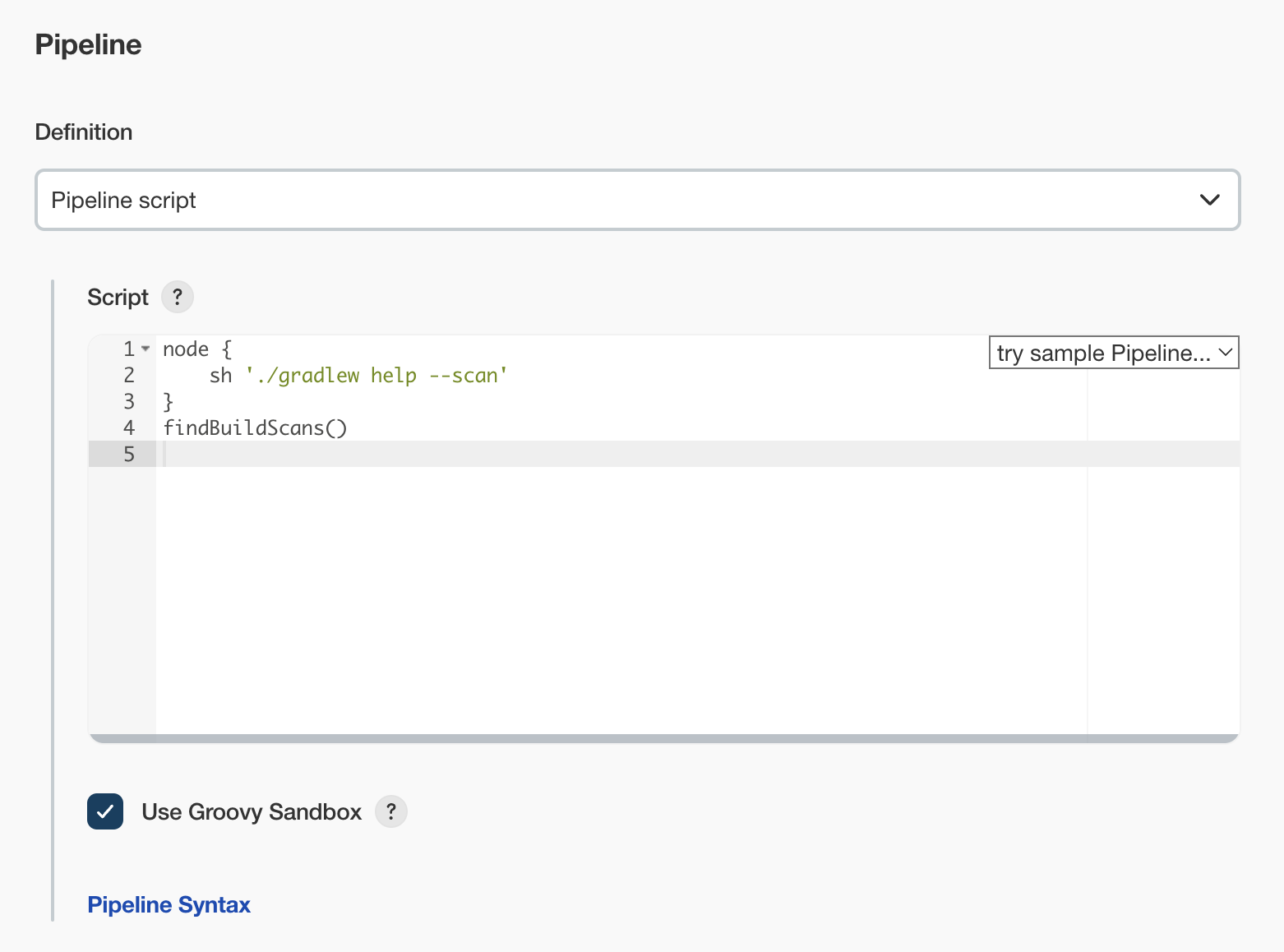

Find build scans

Gradle Enterprise integration

The plugin can be configured to inject the Gradle Enterprise Gradle plugin or the Gradle Enterprise Maven extension into any Gradle or Maven build that is executed on the Jenkins server or on any of its connected agents. To achieve this, the plugin installs various files on each agent depending on the configuration via the global options in the Manage Jenkins/Configure System section.

The same auto-injection behavior is available for the Common Custom User Data Gradle plugin and the Common Custom User Data Maven extension.

Note - The configuration applies to all builds on all connected agents matching the specified label criteria, or all in case no label criteria are defined.

Enable auto-injection

The auto-injection is split into three levels to have fine-grained control over the enablement of this feature.

Global

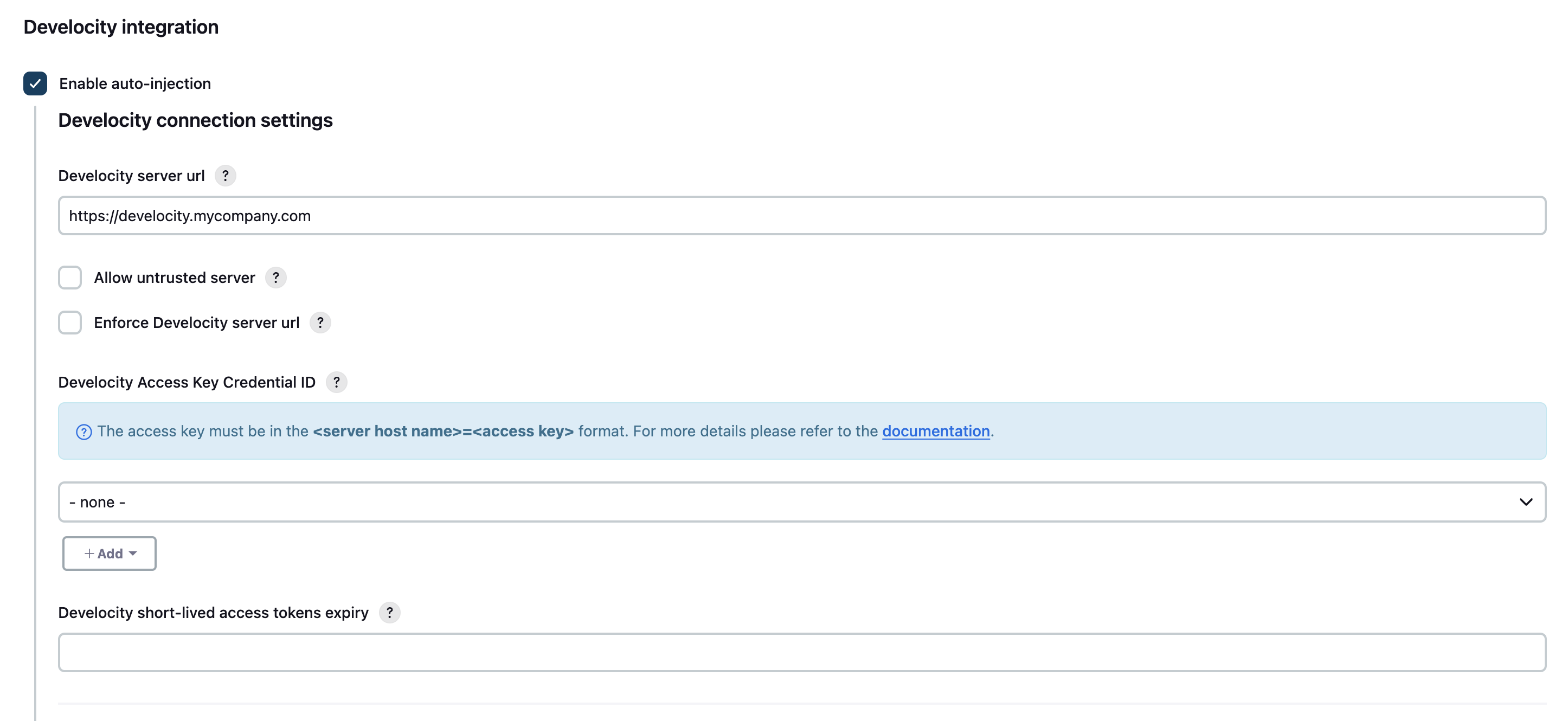

To globally enable the auto-injection, click the Enable auto-injection checkbox in the Gradle Enterprise integration section of the global options in the Manage Jenkins/Configure System section. Next set the URL of the Gradle Enterprise instance to which the build scans should be published to.

Enable auto-injection

Gradle

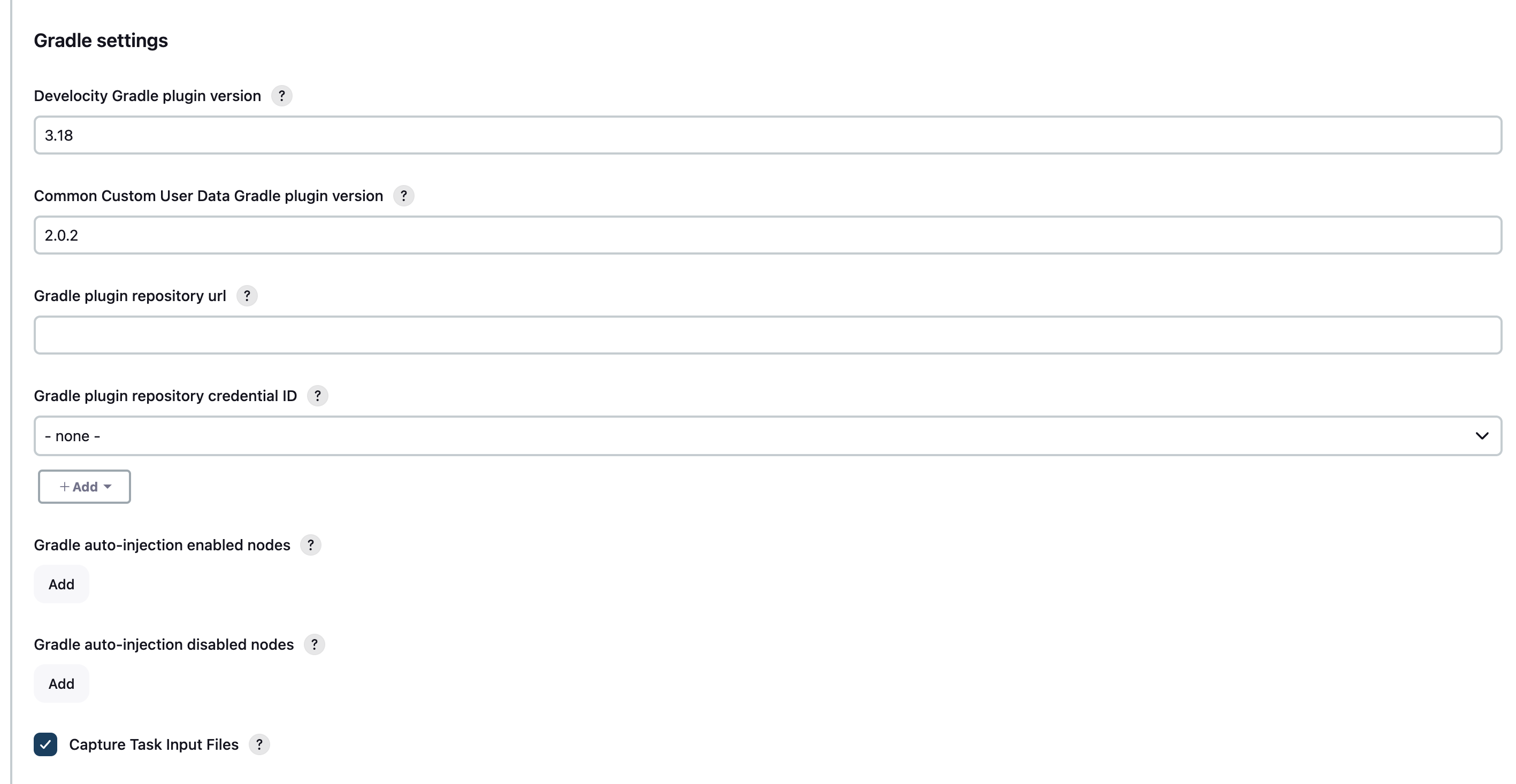

To enable the auto-injection for Gradle builds, set the desired Gradle Enterprise Gradle plugin version in the Gradle Enterprise Gradle plugin version field in the Gradle settings section of the configuration form.

Gradle settings

Optionally set the desired version of the Common Custom User Data Gradle plugin to be used.

Maven

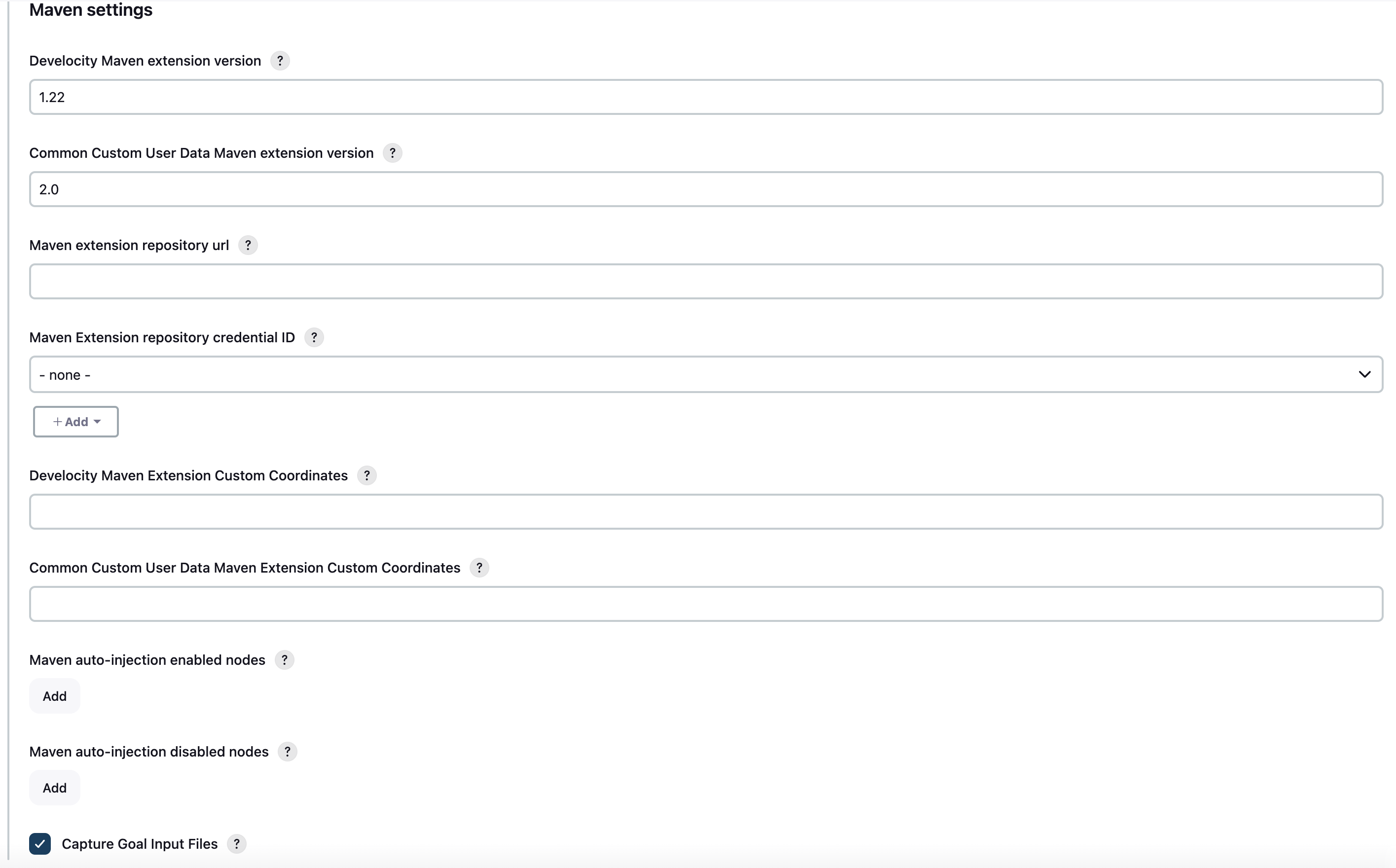

To enable the auto-injection for Maven builds, click the Enable Gradle Enterprise Maven extension auto-injection checkbox in the Maven settings section of the configuration form.

Maven settings

Optionally click the Enable Common Custom User Data Maven extension auto-injection checkbox to enable the auto-injection of the Common Custom User Data Maven Extension.

To see which versions are injected, refer to Auto-injection compatibility.

Warning - Maven injection only works if MAVEN_OPTS is not configured as a global environment variable.

Disable auto-injection

Disabling the auto-injection requires that all Gradle Enterprise resources are cleaned up from the agents. To achieve this, the Gradle or Maven injections must be disabled individually (see the following sections). This triggers a cleanup of the resources. If the auto-injection should be disabled globally, then uncheck the Enable auto-injection checkbox as well.

Gradle

To disable the auto-injection for Gradle builds, remove the Gradle Enterprise Gradle plugin version in the Gradle settings section of the configuration form.

Maven

To disable the auto-injection for Maven builds, uncheck the Enable Gradle Enterprise Maven extension auto-injection checkbox in the Maven settings section of the configuration form.

Control auto-injection based on node labels

Auto-injection can be enabled or disabled based on specific node labels. To enable auto-injection only on specific nodes, add the desired labels to the Gradle auto-injection enabled nodes list for Gradle or Maven auto-injection enabled nodes for Maven. To disable auto-injection on specific nodes, add the desired labels to the Gradle auto-injection disabled nodes list for Gradle or Maven auto-injection disabled nodes for Maven.

The disabled labels list will take precedence over the enabled labels list.

Configuration options

The following sections list all available configuration options which can be set via the configuration form.

Common configuration options

Enable auto-injection
Globally enable auto-injection.

Gradle Enterprise server url
The URL of the Gradle Enterprise instance.

Allow untrusted server
Whether to allow publishing to a server with a self-signed certificate.

Gradle Enterprise access key
The access key for authenticating with the Gradle Enterprise server. The access key is stored encrypted within the Jenkins instance. During the job execution, the access key is decrypted and set as GRADLE_ENTERPRISE_ACCESS_KEY environment variable. Refer to the Gradle Enterprise Gradle plugin manual and the Gradle Enterprise Maven Extension manual for more details about this configuration.

Gradle specific configuration options

Gradle Enterprise Gradle plugin version
Enables auto-injection for Gradle builds and defines which version of the Gradle Enterprise Gradle plugin to use.

Common Custom User Data Gradle plugin version
Defines which version of the Common Custom User Data Gradle plugin to use.

Gradle plugin repository url
The URL of the repository to use to resolve the Gradle Enterprise Gradle plugin and the Common Custom User Data Gradle plugin. This is required if the Jenkins agents are not able to access the Gradle Plugin Portal.

Gradle auto-injection enabled nodes
A list of node labels on which the Gradle Enterprise Gradle plugin or Common Custom User Data Gradle plugin injection should be enabled. By default, all nodes are enabled.

Gradle auto-injection disabled nodes
A list of node labels on which the Gradle Enterprise Gradle plugin or Common Custom User Data Gradle plugin injection should be disabled. By default, all nodes are enabled.

Maven specific configuration options

Enable Gradle Enterprise Maven extension auto-injection
Enables auto-injection for Maven builds and injects Gradle Enterprise Maven extension.

Enable Common Custom User Data Maven extension auto-injection
Enables auto-injection of Common Custom User Data Maven extension.

Maven auto-injection enabled nodes
A list of node labels where the Gradle Enterprise Maven extension or Common Custom User Data Maven extension injection should be enabled. By default, all nodes are enabled.

Maven auto-injection disabled nodes
A list of node labels where the Gradle Enterprise Maven extension or Common Custom User Data Maven extension injection should be disabled. By default, all nodes are enabled.

Auto-injection compatibility

The following sections list the compatibility of the plugin with the Gradle Enterprise version based on the given build tool in use.

For Gradle builds

For Gradle builds the version used for the Gradle Enterprise Gradle plugin is defined in the Gradle Enterprise Gradle plugin version field in the Gradle settings section of the configuration form. See Enable auto-injection for details. The compatibility of the specified version with Gradle Enterprise can be found here.

For the optional Common Custom User Data Gradle plugin which is defined the same form, you can see the compatibility of the specified version with the Gradle Enterprise Gradle plugin here.

For Maven builds

For Maven builds the version of the Gradle Enterprise Maven extension is bundled into the plugin, meaning that the user can’t change what version is injected into the Maven build.

The following table shows the compatibility of the plugin version with Gradle Enterprise:

Jenkins Gradle Plugin version

Injected Gradle Enterprise Maven extension version

Injected Common Custom User Data Maven extension version

Minimum supported Gradle Enterprise version

2.1.1

1.15.5

1.11.1

2022.3

2.1

1.15.4

1.11.1

2022.3

2.0

1.15.4

1.11.1

2022.3

1.40

1.15.3

1.11.1

2022.3

< 1.40

Not supported

Not supported

Not supported

Disabling/uninstalling Gradle Jenkins plugin

To ensure that all Gradle Enterprise resources are cleaned up from the agents, before disabling/uninstalling the plugin the auto-injection has to be manually disabled. Please, refer to the Disable auto-injection section for details.

Upgrade notes

2.0

Note - These upgrade notes only apply if you configured the Gradle Enterprise auto-injection feature.

A new form based configuration was introduced in this version, which replaces the configuration via environment variables. There is no automatic migration, therefore you need to manually migrate the already configured auto-injection via environment variables you’d need to follow these steps:

  1. Copy the values of the following environment variables and then remove them in the global configuration following environment variables from the global configuration:

    • JENKINSGRADLEPLUGIN_GRADLE_ENTERPRISE_INJECTION

    • JENKINSGRADLEPLUGIN_GRADLE_ENTERPRISE_URL

    • JENKINSGRADLEPLUGIN_GRADLE_ENTERPRISE_ALLOW_UNTRUSTED_SERVER

    • GRADLE_ENTERPRISE_ACCESS_KEY

    • JENKINSGRADLEPLUGIN_GRADLE_ENTERPRISE_PLUGIN_VERSION

    • JENKINSGRADLEPLUGIN_CCUD_PLUGIN_VERSION

    • JENKINSGRADLEPLUGIN_GRADLE_PLUGIN_REPOSITORY_URL

    • JENKINSGRADLEPLUGIN_GRADLE_INJECTION_ENABLED_NODES

    • JENKINSGRADLEPLUGIN_GRADLE_INJECTION_DISABLED_NODES

    • JENKINSGRADLEPLUGIN_GRADLE_ENTERPRISE_EXTENSION_VERSION

    • JENKINSGRADLEPLUGIN_CCUD_EXTENSION_VERSION

    • JENKINSGRADLEPLUGIN_MAVEN_INJECTION_ENABLED_NODES

    • JENKINSGRADLEPLUGIN_MAVEN_INJECTION_DISABLED_NODES

  2. Copy the previously saved values and enter them in the new form based configuration to have the same configuration as before.

Roadmap

  • Using the Gradle API for accessing all the Gradle functionalities

  • Providing a Maven-like or Ivy-like integration

    • Multi-project detection

    • Adding automatic tests result path detection

    • Listing executed tasks with time execution for each task

    • Providing a log for each module in a multi-project

Release Notes

For the current release notes (v1.34+), please check the GitHub releases page.

For the older releases < v1.34 see this list:

1.33 (July 5th 2019)

  • Remove support for dry-run plugin #72

  • Support detecting build scans in pipeline jobs (#71)

  • Increase required core version to 2.60.3 #73

  • Use consistent file formatting for sources #74. Thanks @darxriggs.

1.32 (May 24th 2019)

  • Expose build scan action via Jenkins API (#70)

1.31 (Mar 16th 2019)

  • Support detecting build scans for non-Gradle build steps #66

  • Support for detecting Maven build scans #68

1.30 (Jan 11th 2019)

1.29 (Jul 3rd 2018)

  • Update licensing information in pom.xml.

  • Support console annotations for Gradle 4.7 and later.

1.28 (Oct 2 2017)

  • Empty job parameters are passed as empty (JENKINS-45300)

  • Console annotator endless loop in combination with using the Ant plugin fixed (JENKINS-46051)

1.27.1 (Jul 1 2017)

  • Increase required core version to 1.642.1

  • Make finding wrapper location more robust on Windows

  • Job parameters are now correctly quoted when passed as system properties (JENKINS-42573 and JENKINS-20505)

  • Do not pass all job parameters as (system) properties to Gradle by default

  • Include automated test for CLI command JENKINS-42847

  • Ensure that Gradle’s bin directory is on the path for Pipeline tool steps JENKINS-42381

  • Add option to pass only selected system properties to Gradle

  • Add option to pass only selected project properties to Gradle

  • Progress status FROM-CACHE and NO-SOURCE are highlighted in the console, too.

  • Support build scan plugin 1.8

1.27 (Jun 23 2017)

1.26 (Feb 13 2016)

  • Use @DataBoundSetter instead of a (too) large @DataBoundConstructor

  • Add @Symbol annotations for step and tool JENKINS-37394

  • Make it possible to configure the wrapper location JENKINS-35029

  • Update icon for build scan integration

  • Remove description from build step

Release 1.25

  • Update core dependency to 1.580.1 JENKINS-34790

  • Fix for Gradle wrapper not working when Gradle version was previously selected (JENKINS-24682)

  • Long task names in console outline should not overlap console output (JENKINS-26287)

  • It is now possible to pass Gradle build parameters as project properties (JENKINS-17523)

  • If a Gradle Build Scan is produced during the build then a link is added to the build page.

Release 1.24

  • Fix JENKINS-18629 - Jenkins fails to save configuration when using Invoke Gradle script in Conditional Step (single).

Release 1.23

  • Fix issue #17386 * Gradle.properties ignored after 1.22 upgrade. GRADLE_USER_HOME is now no longer set to the workspace of the job by default. If you wish to have the workspace job as the GRADLE_USER_HOME, you will need to change the config to reflect this.

Release 1.22

  • Fix JENKINS-17294 - mask sensitive variables (Password parameters)

  • Fix JENKINS-13412 - use hudson.util.ArgumentListBuilder#toWindowsCommand

  • Set GRADLE_USER_HOME all the time

Release 1.21

  • Add the ability to allow gradlew to still be run from workspace top, but to also configure it so that gradlew is found in the root build script directory.

  • Fix JENKINS-12769 - Cannot specify location of gradle wrapper

  • Fix JENKINS-15406 - When using gradlew, root build script field is not used to locate gradlew

Release 1.20

  • Fix JENKINS-15166 - Gradle plugin fails to save selected Gradle Version in Project configuration

Release 1.19

  • Fix broken file permission introduced by JENKINS-14780

Release 1.18

  • Fix JENKINS-14780 - make gradlew script executable

Release 1.17

  • Merge pull request - Change Gradle Wrapper logic to use the launcher’s OS type rather than master’s OS type when determining Gradle Wrapper script name

Release 1.16

  • Fix reopened JENKINS-9538 - hudson.model.FreeStyleBuild & GradleInstallation not serializable ⇒ Gradle build not working anymore

Release 1.15

  • Fix reopened JENKINS-13412 - Gradle plugin fails to quote parameters without whitespace when containing input/output redirection symbols, e.g. in XML strings

Release 1.14

  • Fix JENKINS-13412 - Gradle plugin fails to quote parameters without whitespace when containing input/output redirection symbols, e.g. in XML strings

Release 1.13

  • Fix JENKINS-9538 - hudson.model.FreeStyleBuild & GradleInstallation not serializable ⇒ Gradle build not working anymore

Release 1.12 (October 30, 2011)

  • Fix JENKINS-9553 - Gradle wrapper command fails on Windows

Release 1.11 (October 02, 2011)

  • Coloring output log and Navigation executed tasks (from pull request of ikikko)

Release 1.10 (September 07, 2011)

  • Provide dry-run option for the

Release 1.9 (June 24, 2011)

  • Integrate pull request - Enable JAVA_OPTS

Release 1.8 (April 01, 2011)

  • Add pull request 'Let users use the Gradle wrapper'

Release 1.7.1 (March 24, 2011)

  • Fix 1.7 to properly set required Jenkins version.

Release 1.7 (March 23, 2011)

  • Add automatic tool installer

Release 1.6 (February 27, 2011)

  • Fix 1.5 to properly set required Jenkins version.

Release 1.5 (February 19, 2011)

  • Update to Jenkins 1.397 API and metadata

  • Change UI labels from Hudson to Jenkins

Release 1.4 (June, 09, 2010)

  • Fix help messages

  • Add technical internal behavior for a suitable Artifactory/Gradle integration (with the buildinfo)

Release 1.3 (February 23, 2010)

  • Add a description message in the build step

  • The plugin makes it possible to extract a Gradle distribution from a shared location or from a command line, and uses this distribution for running the build.

Release 1.2 (February 07, 2009)

  • Add a distinction between switches and tasks

  • The plugin makes its possible to specify the location of the build script if the workspace has a top-level build.gradle in somewhere other than the module root directory

  • Improve user help messages

Release 1.1 (November 07, 2008)

  • Add the support of Gradle 0.5. Before the version 0.5, the gradle windows executable file was "gradle.exe", and you lost the ERRORLEVEL value. From Gradle 0.5, the window launcher is a .bat file that conserves the correct ERRORLEVEL value.

Release 1.0 (October 04, 2008)

  • Initial release
