Pick a container image tag from a GitLab project’s Container Registry when you start a build — no hard-coded versions in the job config.
Pipeline symbol: gitLabRegistryImage
Point the job at a GitLab project, choose the image name, and verify access with Test connection.
Tags load on demand when you open the build form; choose a tag and run the job.
- Lists tags via GitLab project APIs (project URL + image name), not a generic Docker Registry host/path.
- Works with self-hosted GitLab and usual Jenkins credentials (token / username+password).
- Lazy loading on the Build with Parameters page — the job form stays fast until you need the list.
- Test connection on the config screen before the first build.
| Plugin | Difference |
|---|---|
| Image Tag Parameter | Talks to a Docker Registry HTTP API. This plugin uses GitLab’s project + registry APIs. |
| Quay Tag Parameter | Quay-specific. This plugin is GitLab-only. |
| ORAS Parameters | OCI / ORAS artifact refs. This plugin lists Container Registry image tags for a GitLab project. |
| GitLab Plugin | MRs, webhooks, SCM. This plugin is only a build-parameter dropdown. |
- Add a Jenkins credential (Username with password or Secret text / PAT). For private projects, scopes are typically
read_registry/read_api. - In the job: This project is parameterized → Add Parameter → GitLab Registry Image Tag.

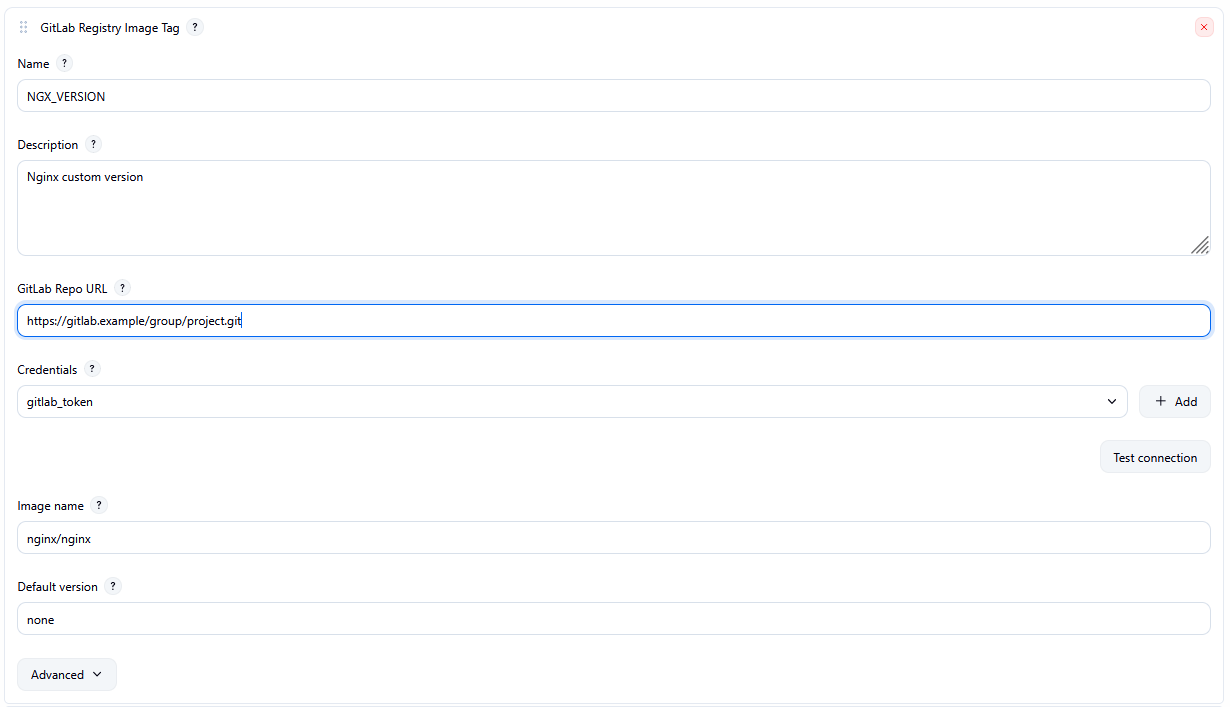

- Set Name, GitLab Repo URL, Image name; optionally pick credentials and click Test connection.

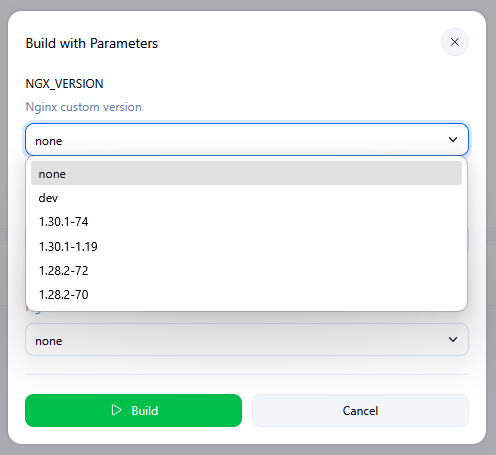

- Open Build with Parameters, wait for the dropdown to load, select a tag, build.
Generate from Pipeline Syntax → Sample Step properties: Set job properties → parameterized job → GitLab Registry Image Tag.
Required: name, repoUrl, imageName. Other fields are optional.
properties([
parameters([
gitLabRegistryImage(
name: 'ES_VERSION',
repoUrl: 'https://gitlab.example/group/project.git',
imageName: 'elasticsearch',
credentialsId: 'gitlab_token',
defaultVersion: 'none'
)
])
])
Replace gitlab.example with your GitLab host.
More templates: examples/PipelineSyntax.gitLabRegistryImage.groovy, examples/Jenkinsfile.images.plugin
- Jenkins 2.541.3 or newer (see
pom.xml) - Optional credentials as above
| Field | Description |
|---|---|
name |
Required. Environment variable name (e.g. ES_VERSION) |
repoUrl |
Required. Project URL (http:// or https://) |
imageName |
Required. Image name in the project registry |
description |
Optional help text on the Build with Parameters page |
credentialsId |
Optional. Empty = public project |
defaultVersion |
Optional preselected value; added to the list if missing |
exclude / regex |
Optional Java regex to drop / keep tags |
perPage |
Values per API page (1–100, default 50) |
maxPages |
Max pages to fetch (1–50, default 2) |
maxRows |
Max values in the dropdown (1–500, default 30) |
sortMode |
NONE / ASC / DESC / *_SMART |
connectTimeoutMs / readTimeoutMs |
HTTP timeouts for build-time fetch (Test connection uses defaults) |
- Build-page AJAX sends only the parameter name (values come from the job’s stored definition).
- For self-signed or internal GitLab, add your company CA to the Jenkins controller JDK truststore (do not disable TLS verification).
- Loopback, link-local, and cloud metadata addresses are blocked. Private RFC1918 hosts are allowed for typical self-hosted GitLab.
MIT — see LICENSE.
See SECURITY.md.
