Webhook Relay

Receive GitHub, GitLab, Bitbucket, and Gitea webhooks in Jenkins without exposing Jenkins to the public internet. The plugin opens an outbound connection to a Webhook Relay bucket and forwards every webhook it receives to the matching Jenkins endpoint (/github-webhook/, /bitbucket-hook/, …), so your SCM can trigger builds even when Jenkins lives on a private network, behind a firewall, or on your laptop.

Because delivery goes through a Webhook Relay bucket (the forwarding feature — not a tunnel), every request is recorded on the bucket's logs page, giving you a full request/response history for debugging.

GitHub / GitLab / Bitbucket / Gitea
        │  (webhook)
        ▼
https://<your-bucket>.hooks.webhookrelay.com      ← public URL you paste into the SCM (GitHub, GitLab, Bitbucket, Gitea)
        │
        ▼
   Webhook Relay bucket  ──────────────►  logs page (every request + Jenkins response)
        │  (outbound WebSocket, started by the plugin)
        ▼
   Jenkins  →  /github-webhook/  →  build triggered

1. The plugin authenticates to Webhook Relay with your API token and subscribes to a bucket over a persistent outbound WebSocket (wss://my.webhookrelay.com/v1/socket). No inbound ports are opened on Jenkins.
2. When a webhook hits the bucket's public input URL, Webhook Relay streams it down the socket to the plugin.
3. The plugin replays the request against the Jenkins webhook endpoint for your SCM (selected via the SCM Webhook Preset) and sends Jenkins' response (status, headers, body) back to the bucket log.

The SCM Webhook Preset decides where inside Jenkins the plugin replays each webhook. These are the same endpoints you would give the provider if Jenkins were public — the plugin just delivers to them from the inside.

The trailing slash on /github-webhook/ and /bitbucket-hook/ matters: Jenkins answers 403 No valid crumb was included in the request when it is missing. The presets include it.

Install from the Jenkins update center: Manage Jenkins → Plugins → Available plugins, search for Webhook Relay, install it, and restart Jenkins. Alternatively, download the .hpi from the plugin page and upload it under Manage Jenkins → Plugins → Advanced settings → Deploy Plugin.

You will need a free Webhook Relay account and an API token (create one here).

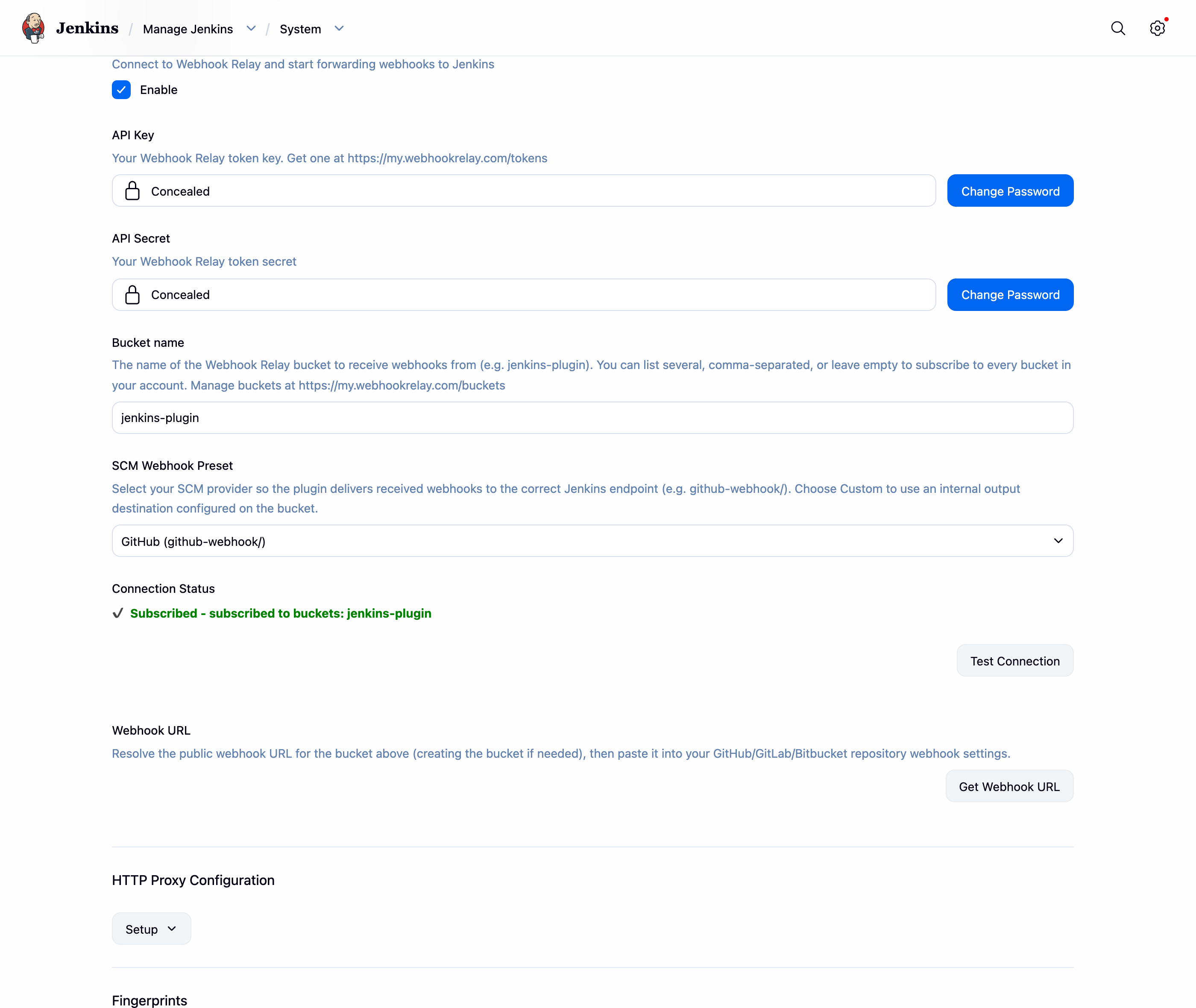

1. Go to Manage Jenkins → System and scroll to the Webhook Relay section.
2. Enter your API Key and API Secret (get them here).
3. Enter a Bucket name (e.g. jenkins-plugin). It can be an existing bucket or a new name — the plugin creates it for you.
4. Choose your SCM Webhook Preset (GitHub, GitLab, Bitbucket, Gitea, or Generic Webhook Trigger).
5. Tick Enable and click Save.

When connected, the Connection Status shows ✔ Subscribed. Use Test Connection to verify your credentials without saving.

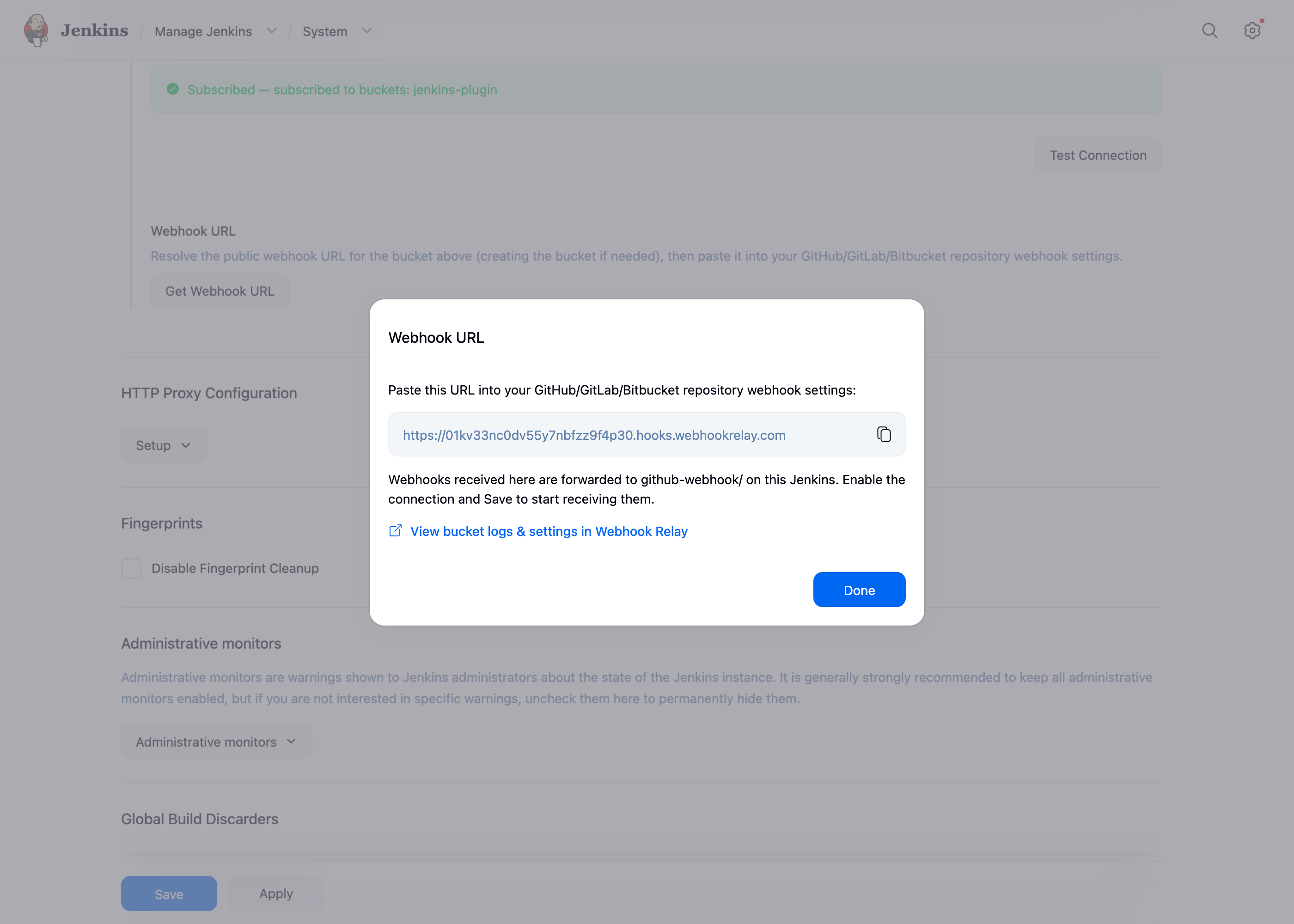

Click Get Webhook URL to resolve the bucket's public input URL (creating the bucket if needed). A dialog shows the URL with a copy button and a link to the bucket — paste the URL into your repository's webhook settings.

That's it — you don't change anything else in the SCM. Webhook Relay receives the webhook on the public URL and the plugin forwards it to the right Jenkins endpoint.

The plugin only delivers the webhook to Jenkins — your job decides what to do with it, exactly as it would if Jenkins were reachable from the internet. There is no special Webhook Relay configuration on the job; you use the normal SCM trigger.

For a GitHub job (Freestyle or Pipeline):

1. Create a job: New Item → Freestyle project (or Pipeline).

2. Under Source Code Management, choose Git and set the Repository URL to your repo (add credentials if it is private):

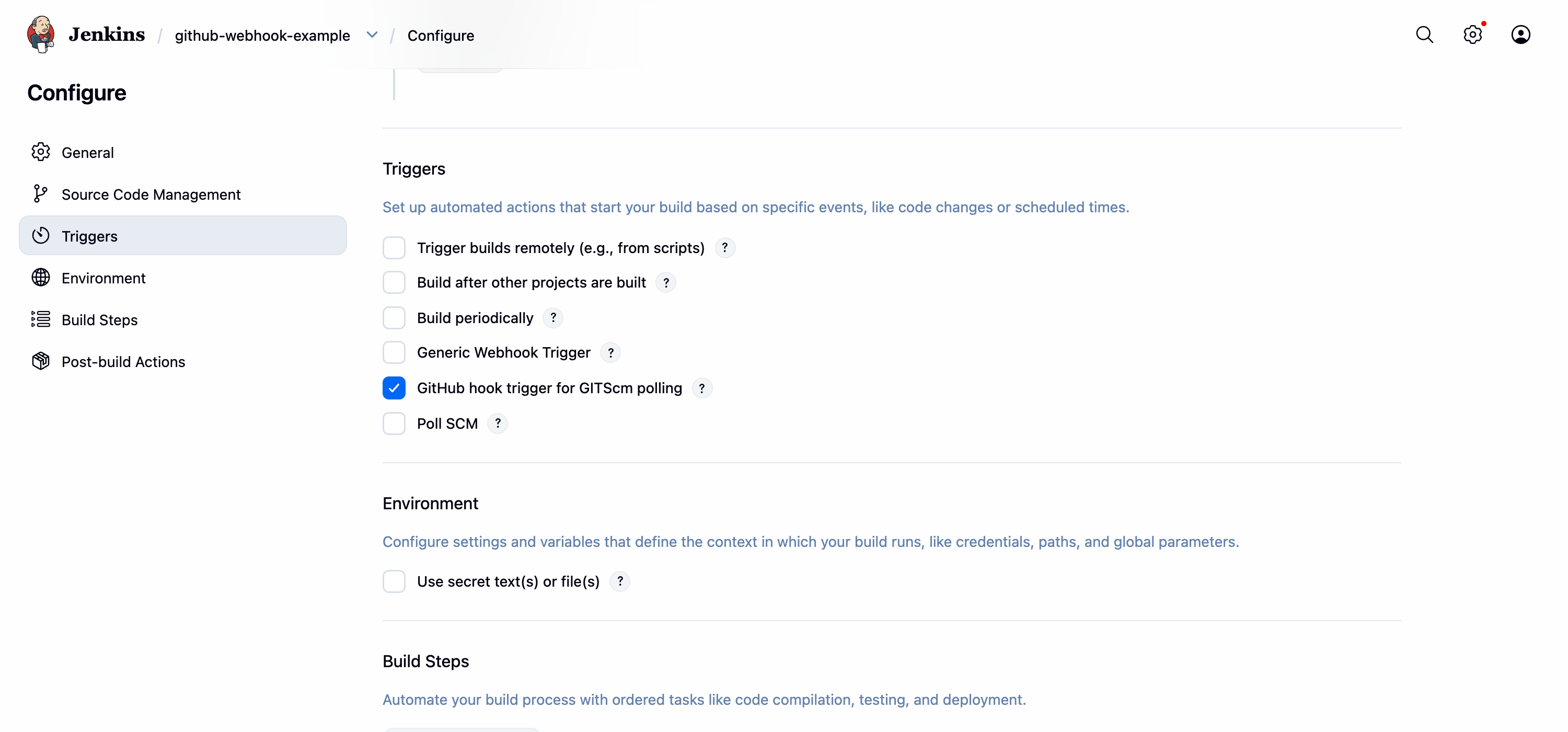

3. Under Triggers, tick GitHub hook trigger for GITScm polling, then Save:



In a declarative Pipeline the equivalent of step 3 is a triggers { githubPush() } block in the Jenkinsfile (see demo/Jenkinsfile).

For other providers, tick the matching trigger in the same Triggers section:

• GitLab — Build when a change is pushed to GitLab (GitLab plugin).
• Bitbucket — the Bitbucket push trigger (Bitbucket plugin).
• Gitea — the Gitea push trigger (Gitea plugin); the preset delivers to /gitea-webhook/post.
• Anything else — Generic Webhook Trigger (shown in the screenshot above), which fires on any POST and needs no SCM match.

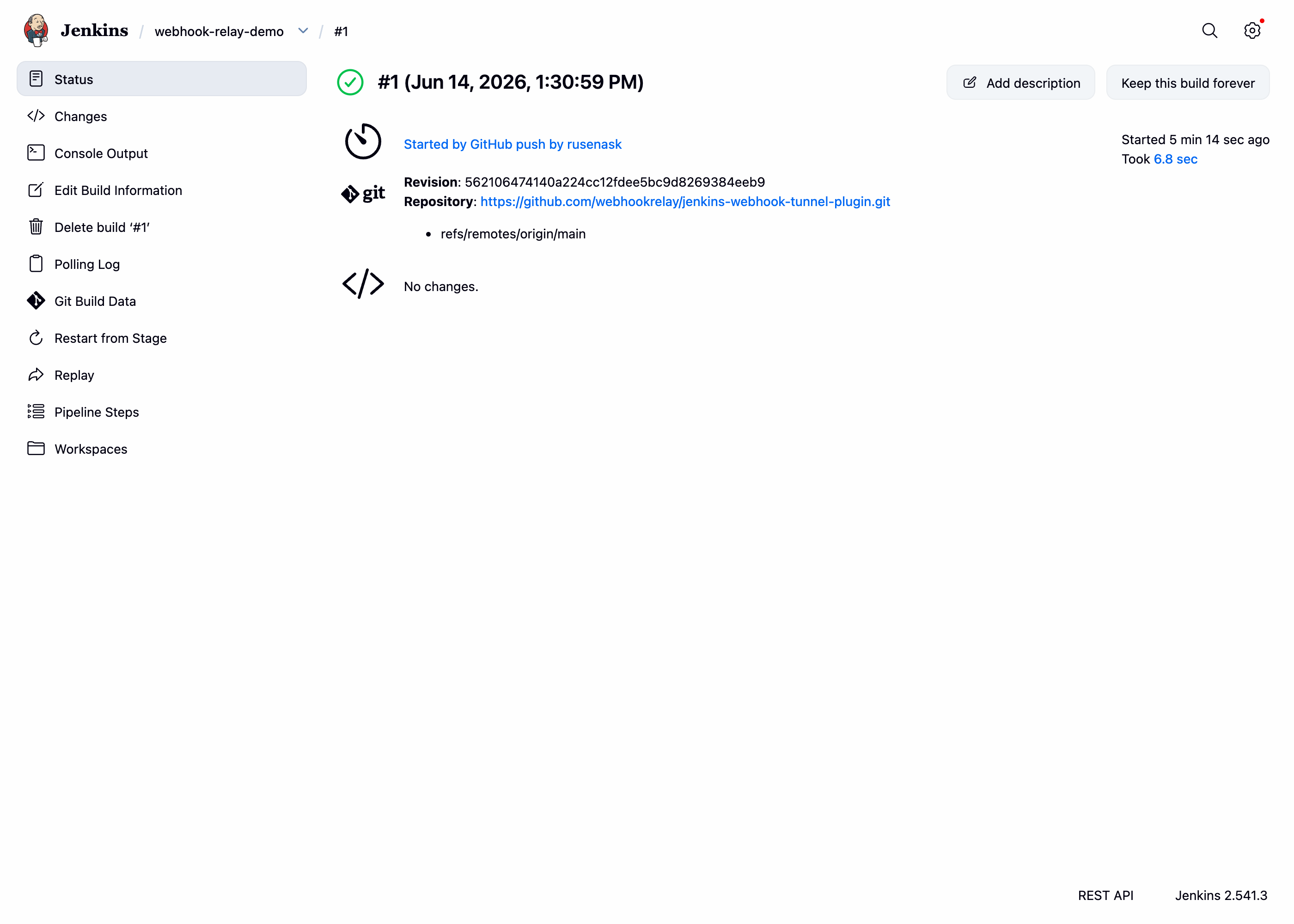

When a push arrives, the build starts — triggered by the webhook that travelled through the bucket and the plugin (note “Started by GitHub push”):

Every webhook is recorded on the bucket's logs page, including the response Jenkins returned. A sent status with a 200 response status means Jenkins accepted the webhook. The plugin links straight to it — both in the Get Webhook URL result and as a View bucket logs & settings link under the connection status — once the bucket has been resolved.

A ready-to-run demo lives in demo/:

mvn -q clean package                                   # builds target/webhook-relay.hpi
docker compose -f demo/docker-compose.yml up --build   # Jenkins on http://localhost:8095

The demo image pre-installs the git, github, workflow-aggregator and generic-webhook-trigger plugins and an admin user via Configuration as Code. Install target/webhook-relay.hpi from Manage Jenkins → Plugins → Advanced, then configure the Webhook Relay section as above. See demo/README.md for details.

Custom preset / internal outputs: if you configure an internal output on the bucket with a full http://… destination, the plugin honours that path instead of the preset.

Can Jenkins receive GitHub webhooks without a public IP? Yes. Install this plugin, add your API token and bucket, and Jenkins subscribes to the bucket over an outbound WebSocket. GitHub posts to the bucket's public URL and the plugin replays each request to /github-webhook/ inside Jenkins. No inbound ports, reverse proxy or public IP address is required.

Does this work with GitLab, Bitbucket and Gitea as well? Yes. Pick the matching preset and the plugin replays each webhook to that provider's Jenkins endpoint (/project/<job>, /bitbucket-hook/, /gitea-webhook/post). Anything that can POST to an HTTPS URL — Jira, in-house tooling, another CI — can trigger Jenkins the same way through the Generic Webhook Trigger preset.

Do I need to run a separate relay agent next to Jenkins? No. The plugin runs inside Jenkins, so there is nothing else to install or keep alive. If you prefer, the relay CLI or Docker agent can forward to Jenkins from any machine on the same private network instead.

What happens if Jenkins is offline when a webhook arrives? Webhook Relay stores the request, so the provider sees a successful response and does not give up. With durable retries enabled on the bucket, delivery is retried for up to 30 days; with replay missing on connect enabled on the output, requests that arrived while the plugin was disconnected are redelivered when it reconnects; and every request can be re-sent from the bucket's logs page.

Can I filter which events reach Jenkins? Yes. Add forwarding rules or a transformation function on the bucket to only forward pushes to certain branches, pull-request events, or requests with a valid signature, so Jenkins never sees the rest. See filter or drop webhooks.

Does Jenkins inside Kubernetes need this plugin or the operator? Either works. The plugin needs no cluster-level setup; the Webhook Relay Kubernetes operator is the better fit when several in-cluster services should receive webhooks declaratively.

• Jenkins plugin tutorial — step-by-step with screenshots.
• Jenkins webhooks: the complete setup guide — every Jenkins webhook URL for GitHub, Bitbucket, GitLab and Gitea, and how to fix 403 No valid crumb.
• Webhooks to internal servers — the delivery model behind the plugin.

See CONTRIBUTING.md for how to build, test, and run the plugin locally.

MIT. See LICENSE.
