Delinea Secret Server_Platform

The Delinea Secret Server_Platform Jenkins Plugin enables Jenkins to securely access and reference secrets stored in Delinea Secret Server or Delinea Platform during builds.

For detailed information, refer to the Delinea documentation

This integration provides two main approaches for fetching secrets into Jenkins:

You can retrieve secrets from Secret Server or Platform and inject them into your Jenkins build environment using either:

• Configure your build environment to include:
  • Secret ID (the identifier of the secret to fetch)
  • Secret Server / Platform URL
• Secrets become available as environment variables during the build.
• Ideal for integrating secrets into various stages of a freestyle Jenkins build.

Use the withSecretServer step in your Jenkins pipeline to fetch and map secret fields to environment variables.

Example Pipeline:

pipeline {
    agent any
    stages {
        stage('Print Secret Fields') {
            steps {
                withSecretServer(secrets: [
                    [
                        id: 'SecretID',
                        credentialId: 'CredentialID',
                        baseUrl: 'Secret Server or Platform URL',
                        mappings: [
                            [field: 'username', environmentVariable: 'username'],
                            [field: 'password', environmentVariable: 'password']
                        ]
                    ]
                ]) {
                    bat '''
                        echo Username field: %TSS_username%
                        echo Password field: %TSS_password%
                    '''
                }
            }
        }
    }
}

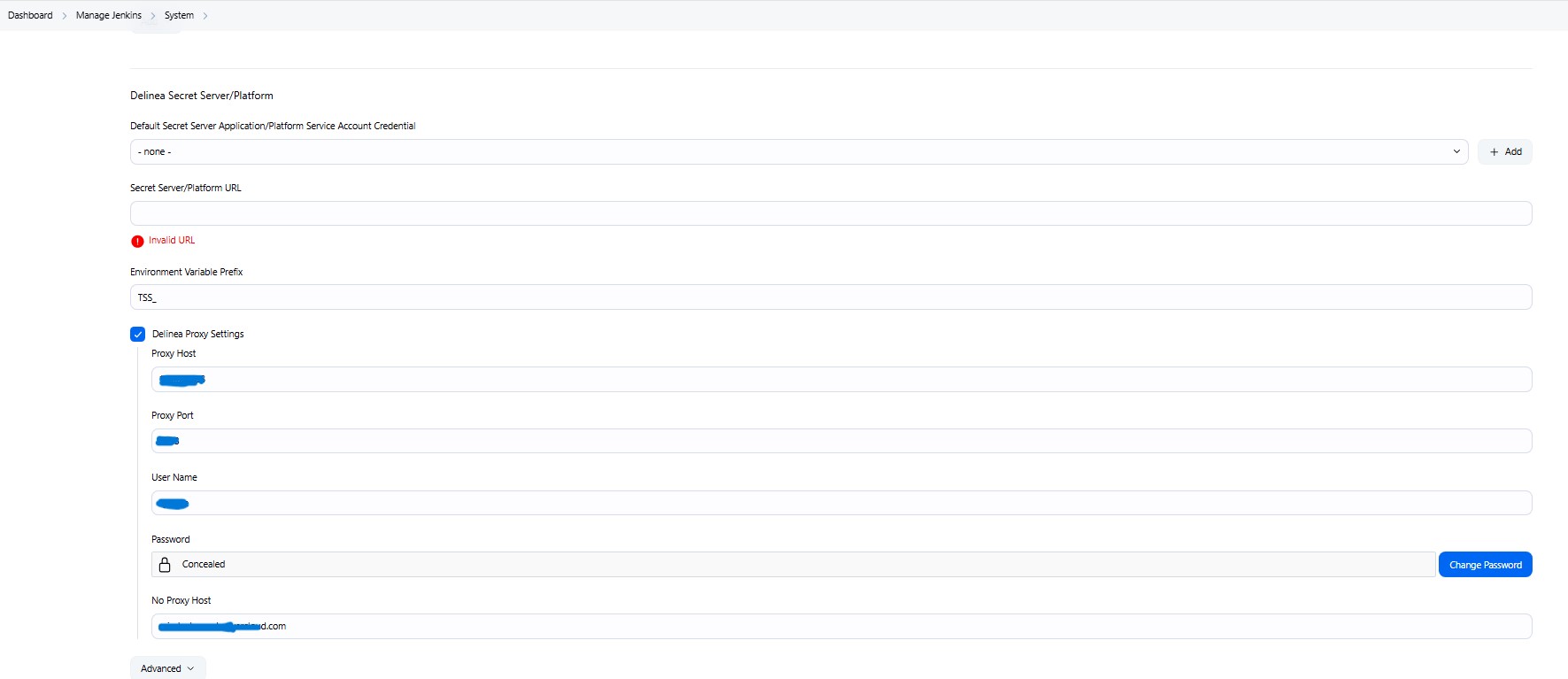

If your uses a proxy, configure global Delinea proxy settings. It is applicable for Freestyle Project and Pipeline.

Steps:

1. Navigate to:
   Dashboard > Manage Jenkins > System > Delinea Secret Server/Platform
2. Configure:
   • Proxy Host: Hostname or IP of proxy server
   • Proxy Port: Port number
   • Username (optional): Proxy authentication username
   • Password (optional): Proxy authentication password
   • No Proxy Hosts: Comma-separated list of hosts to bypass proxy
     (e.g., test.secretserver.com,my-internal-server.com)

You can directly retrieve secrets into a configuration called credential resolver and store the fetched credentials either in the Jenkins global credentials store or in a specific folder, limiting access to the folder to only certain users.

In addition to retrieving the standard username and password fields into the credential resolver, you can also fetch and store custom secret fields, for example, client id and client secret.

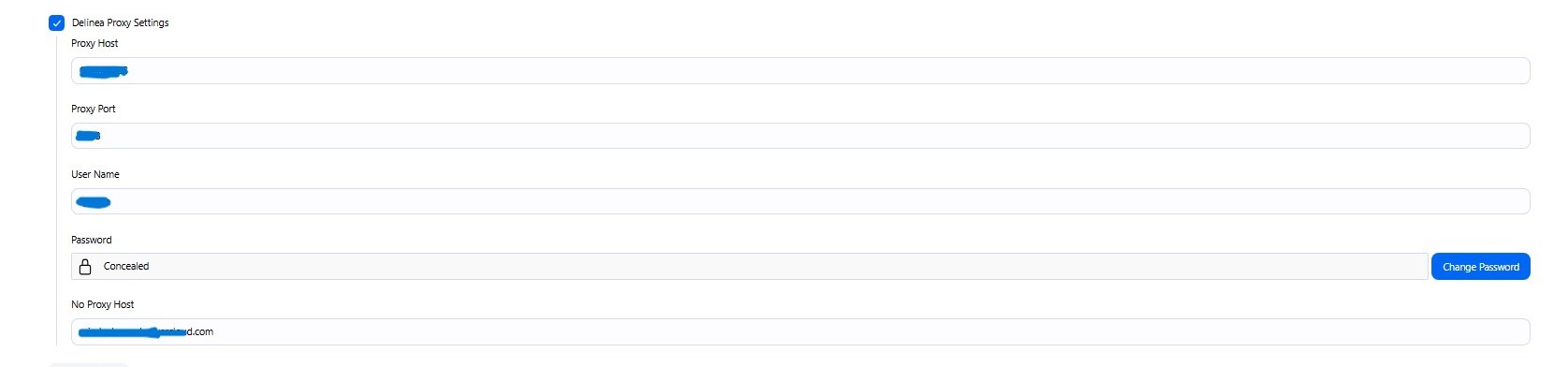

If your uses a proxy, configure Delinea proxy settings.

Steps:

1. Configure:
   • Proxy Host: Hostname or IP of proxy server
   • Proxy Port: Port number
   • Username (optional): Proxy authentication username
   • Password (optional): Proxy authentication password
   • No Proxy Hosts: Comma-separated list of hosts to bypass proxy
     (e.g., test.secretserver.com,my-internal-server.com)

This method is particularly useful if you want to be able to reference the stored secret values wherever you’re required to provide a username and password in Jenkins.
