Test Results Analyzer

Shows the history of your test results across builds, so you can see when a package, class or test started failing, how often it flips between passing and failing, and which tests break most.

When a test fails it is usually not enough to know that it failed in the latest build: you want to know whether it is a new failure, whether it is flaky, and how long it has been like that. Finding that out by opening every build's test report is slow.

The analyzer collects the results published by "Publish JUnit test result report" (or the TestNG plugin) and shows them in one place. Open it from the Test Results Analyzer link in a job's side panel.

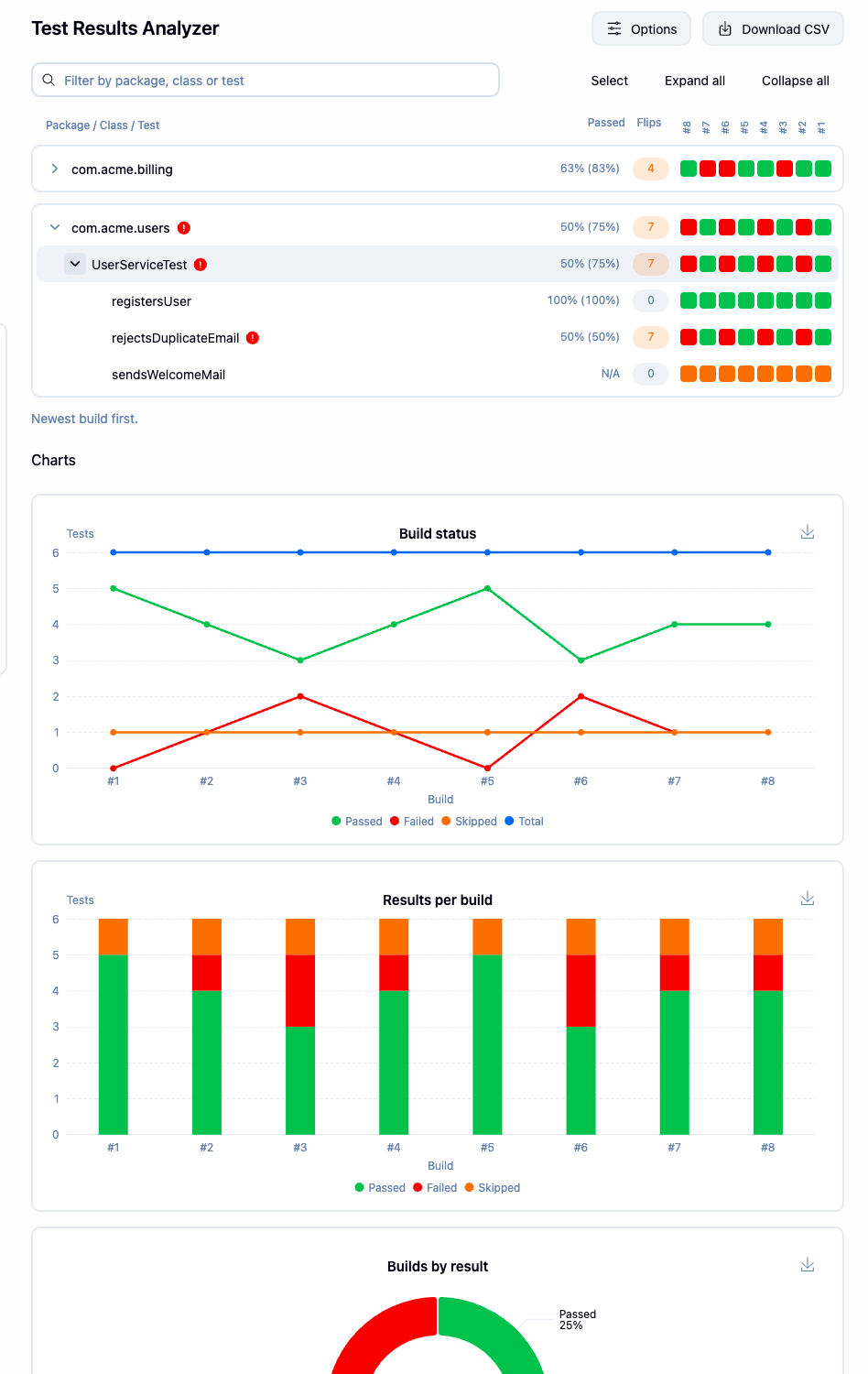

• History: one card per package. Expand a package to see its classes and tests. Each row has a strip of squares, one per build with the newest first, coloured by result. Click a square to open that build. Rows also show how often the item passed and how many times it switched between passing and failing. A red marker flags a test that passed in the previous build and fails now.
• Filter: type part of a package, class or test name to narrow the list.
• Charts: line, stacked bar and pie charts of passes and failures per build, the pass rate, or test run times. Click Select and tick packages, classes or tests to chart only those. Click a build on the line chart to show it in the pie chart. Each chart can be saved as an image.
• Most broken tests: the tests that failed most often, with links to the builds they failed in.
• Download CSV: exports every test for the builds shown, ignoring the filter and display options.

Use Options to change the number of builds, or choose Specific builds and list build numbers and ranges such as 12, 36, 40-53 to compare those builds. Options can also show run times instead of results, show tests that did not run in the builds shown, show only the tests whose status differs between the builds, hide TestNG configuration methods, change how many most broken tests are listed, or pick which charts to draw. Defaults, run-time thresholds, custom status names and custom status colours are set under Manage Jenkins › System › Test Results Analyzer.

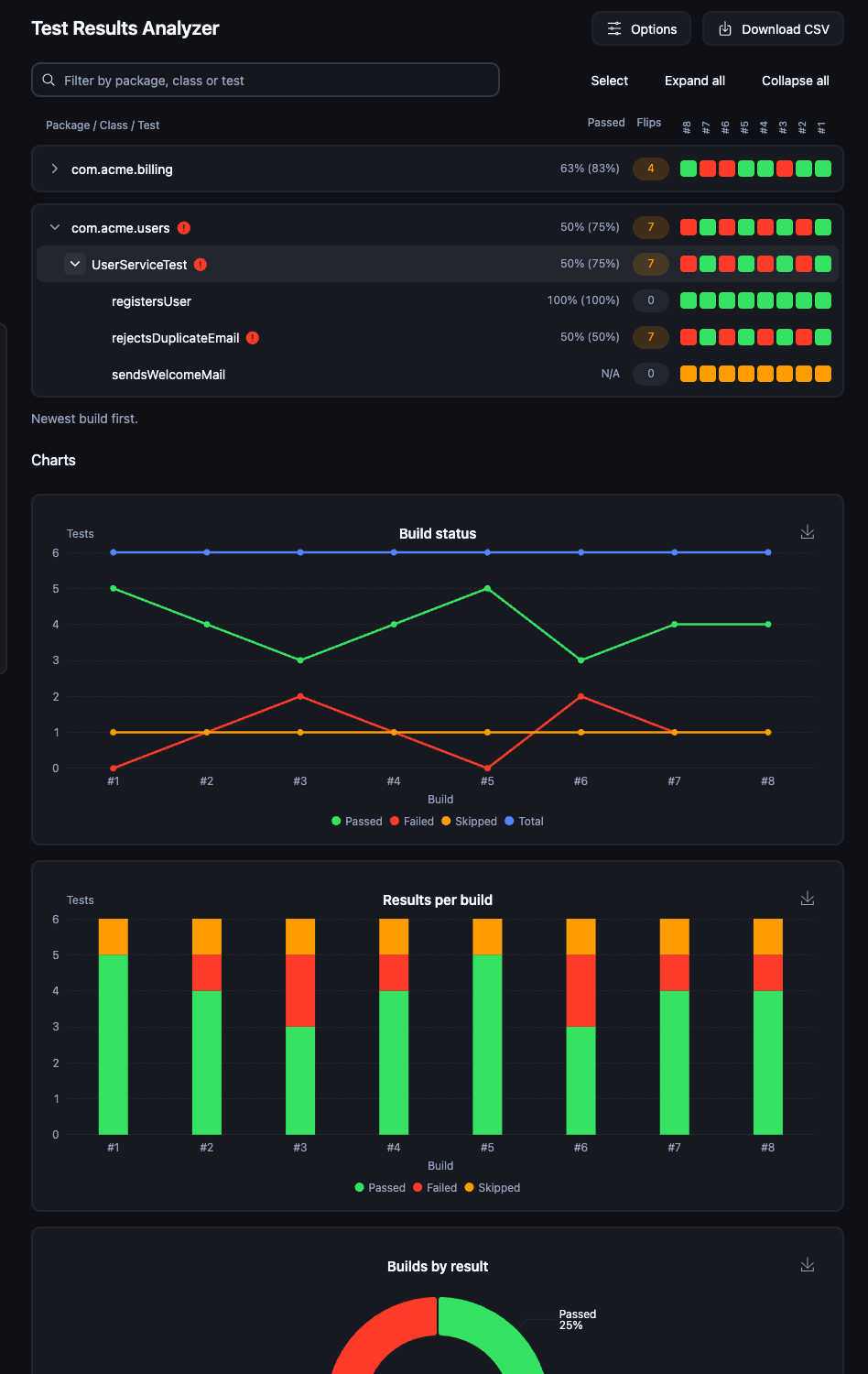

The page follows the Jenkins theme, including dark mode, and adapts to small screens.

The data behind the page can be fetched by scripts. Both endpoints live under the job's analyzer URL, take a GET, and need Job › Read on the job. Authenticate with a user's API token; no crumb is needed.

For a job in a folder, use the job's full URL, for example job/<folder>/job/<job>/test_results_analyzer/data.

Parameters:

• builds: how many of the latest completed builds to include. Leave it out, or pass -1, for all of them (limited by No. of Runs To Fetch Reports in the global configuration).
• buildNumbers: build numbers and ranges to include instead of the latest builds, such as 12,36,40-53. When it is given and not blank, builds is ignored; a blank value falls back to builds. The list may be at most 1,000 characters long and cover at most 10,000 builds, or fewer when No. of Runs To Fetch Reports is set: it then caps how many builds can be chosen, but not how old they are. Overlapping ranges count each time. Builds that do not exist or are still running are left out; an invalid list, or one over the limit, is answered with a 400.
• hideConfigMethods (data only): true leaves out TestNG configuration methods.
• durations (csv only): true exports run times in seconds instead of results.

curl -u "$USER:$API_TOKEN" "$JENKINS_URL/job/my-job/test_results_analyzer/data?builds=10"
curl -u "$USER:$API_TOKEN" -o test-results.csv "$JENKINS_URL/job/my-job/test_results_analyzer/csv?builds=10"
curl -u "$USER:$API_TOKEN" "$JENKINS_URL/job/my-job/test_results_analyzer/data?buildNumbers=12,36,40-53"

The JSON has the build numbers, newest first, details of those builds, and a tree of packages, classes and tests. Every node has one buildResults entry per build, in the same order as builds:

{
  "builds": ["2", "1"],
  "buildInfo": [
    {
      "number": 2,
      "displayName": "#2",
      "timestamp": 1767225600000,
      "url": "https://jenkins.example.com/job/my-job/2/"
    },
    {
      "number": 1,
      "displayName": "#1",
      "timestamp": 1767139200000,
      "url": "https://jenkins.example.com/job/my-job/1/"
    }
  ],
  "results": [
    {
      "text": "com.example",
      "buildResults": [ ... ],
      "children": [
        {
          "text": "CalculatorTest",
          "buildResults": [ ... ],
          "children": [
            {
              "text": "testAdd",
              "buildResults": [
                {
                  "buildNumber": "2",
                  "totalTests": 1,
                  "totalFailed": 1,
                  "totalPassed": 0,
                  "totalSkipped": 0,
                  "totalTimeTaken": 0.25,
                  "status": "FAILED",
                  "url": "https://jenkins.example.com/job/my-job/2/testReport/com.example/CalculatorTest/testAdd"
                },
                { "buildNumber": "1", "status": "N/A" }
              ],
              "children": []
            }
          ]
        }
      ]
    }
  ]
}

• buildInfo has one entry per build, in the same order as builds: its number, its displayName (# and the number unless it was changed), its timestamp (when it was scheduled, in milliseconds since the epoch) and the url of the build, absolute when the Jenkins URL is configured, otherwise relative to the Jenkins root (such as job/name/1/).
• status is PASSED, FAILED (failures and errors), SKIPPED or N/A. N/A means the item did not run in that build, and its entry has no other fields.
• The total* counts are of the tests below the node; for a test they are 0 or 1.
• totalTimeTaken is in seconds.
• url links to the test report of that build. It is absolute when the Jenkins URL is configured, otherwise relative to the Jenkins root.

The CSV has the columns Package, Class, Test, then one column per build number, newest first. Its cells use the custom status names when they are configured.

The analyzer page is a React and TypeScript app in src/main/frontend, built by Vite into src/main/webapp/js/bundles. Maven installs Node and builds it, so mvn hpi:run and mvn verify work as usual; mvn verify also runs the Biome, TypeScript and Vitest checks.

While working on the page, run npm run build:dev next to mvn hpi:run to rebuild on save, and npm run test:dev to run the Vitest specs on save. npm run format and npm run biome:fix fix formatting and lint findings.
