SCM-Manager Plugin

Integrate your repositories from different SCM with this plugin!

Note: This plugin requires SCM-Manager in order to be useful. Feel free to check it out in case you haven't been used to it yet.

Download/Install latest SCM-Manager version »

Documentation in German

Requirements

For full functionality, this plugin requires SCM-Manager v3 (see above) with an installed Jenkins plugin for the triggers and the CI plugin to show the build results inside SCM-Manager. To create SSH connection between Jenkins and SCM-Manager, you can use the SSH plugin.

Description

This plugin gives various ways to connect your SCM-Manager with Jenkins, like sending build status, multibranch pipelines, folders for complete namespaces, and navigation items.

Build Status

Once the plugin is installed, it will automatically detect whether any jobs have configured an scm pointing to an instance of an SCM-Manager. If such a build job starts, the plugin will send the PENDING state for the checkout revision to SCM-Manager. After the build is complete, the plugin will send the resulting state to SCM-Manager (SUCCESS, UNSTABLE or FAILURE).

Multibranch Pipelines

For multibranch pipelines, there is a new branch source named "SCM-Manager". You can create pipelines in Jenkins that can find branches, tags, and pull requests in SCM-Manager hosted repositories on their own. In cooperation with the Jenkins plugin in SCM-Manager, the Jenkins CI server will receive hooks on every change and trigger new builds. To remove stale jobs like for no longer available repositories, you can manually execute "Scan Namespace Now".

To create such a pipeline, select "New Item" on the Jenkins top level page, then enter a name and select "Multibranch Pipeline".

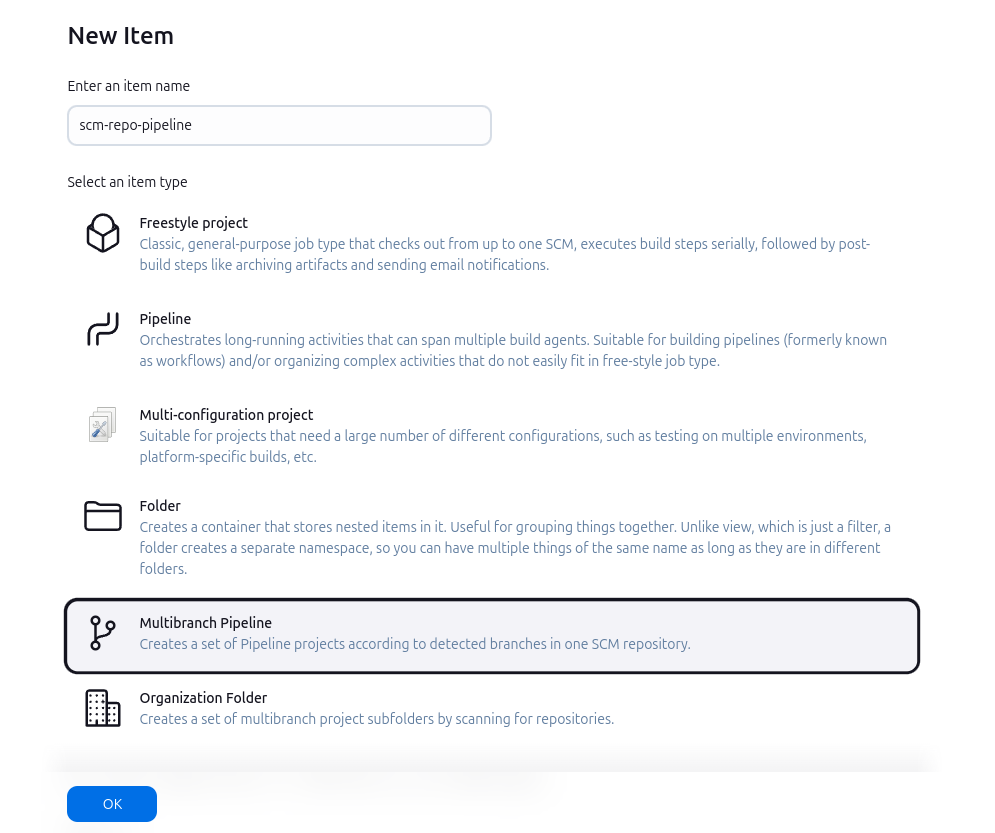

How to select a multibranch pipeline

In the configuration form for this item, select the matching "SCM-Manager" entry for your repository type in the "Add source" dropdown in the section "Branch Sources".

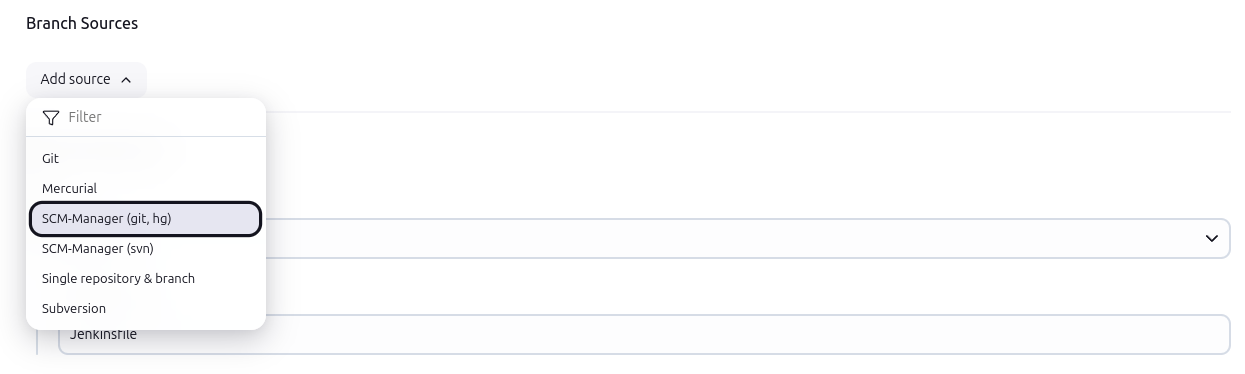

How to select a multibranch pipeline source

In the new configuration, enter the base URL of your SCM-Manager instance and select according credentials. This plugin will then load a list of all available repositories you can select from. You may also copy and paste a repository into the field.

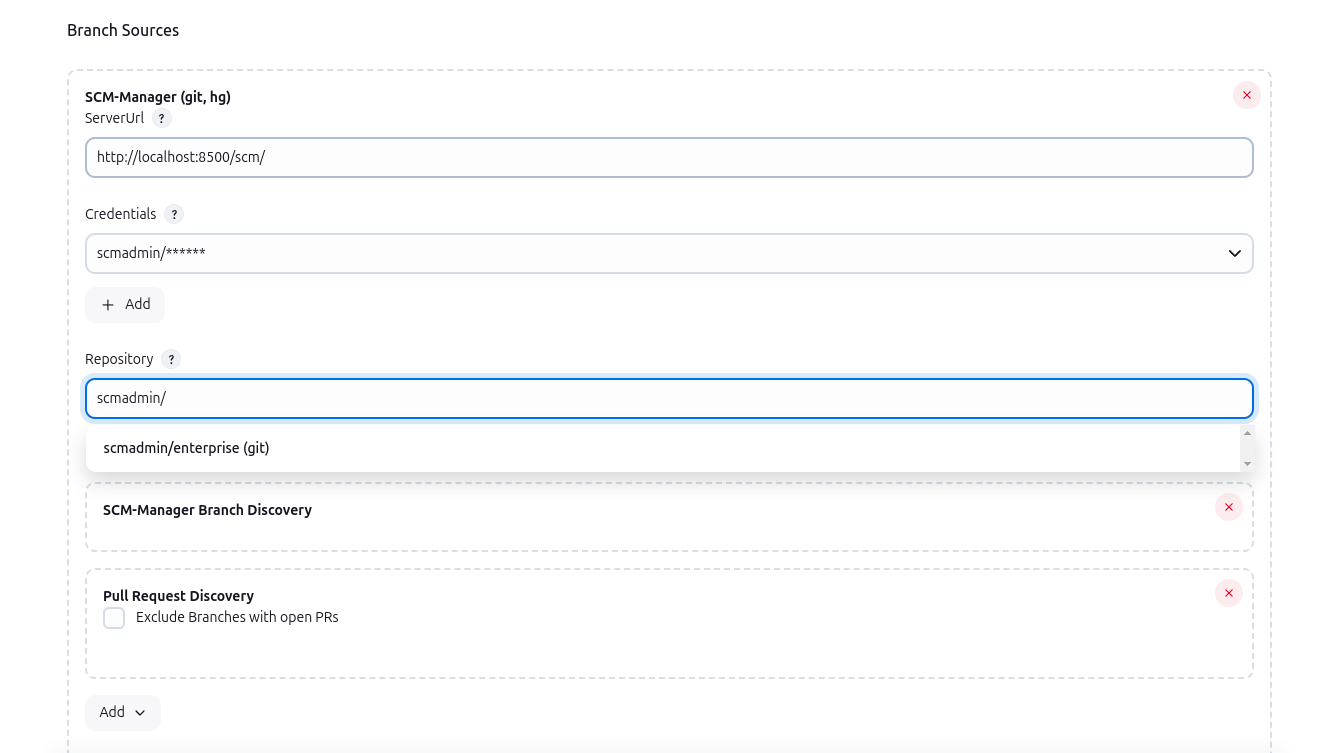

Example of a config for a multibranch pipeline

Finally, you can select behaviours where you can choose whether branches, tags or pull requests shall be built (among others).

JobDSL

In order to create an SCM-Manager Mercurial or Git repository with the Jenkins JobDSL, the following syntax can be used:

multibranchPipelineJob('heart-of-gold') {
  branchSources {
    scmManager {
      id('spaceships/heart-of-gold')
      serverUrl('https://scm.hitchhiker.com')
      credentialsId('my-secret-id')
      repository('spaceships/heart-of-gold')
      discoverBranches(true)
      discoverPullRequest(true)
      discoverTags(false)
    }
  }
}

The parameters discoverBranches, discoverPullRequest and discoverTags are optional and describe which heads of the repository are build. The example shows the default values.

Have a look at the following example for a Subversion repository:

multibranchPipelineJob('heart-of-gold') {
  branchSources {
    scmManagerSvn {
      id('spaceships/heart-of-gold')
      serverUrl('https://scm.hitchhiker.com')
      credentialsId('my-secret-id')
      repository('spaceships/heart-of-gold')
      includes("trunk,branches/*,tags/*,sandbox/*")
      excludes("")
    }
  }
}

Organization Folders – Namespaces

If you want to have build jobs for every repository in a namespace, you can create "SCM-Manager Namespace" jobs. These will scan all repositories in the given namespace and create multibranch pipelines for each repository where a Jenkinsfile can be found. If a new repository is created in this namespace, a new pipeline will be created automatically.

To create such a folder for a complete namespace, select "New Item" on the Jenkins top level page, then enter a name and select "Organization Folder".

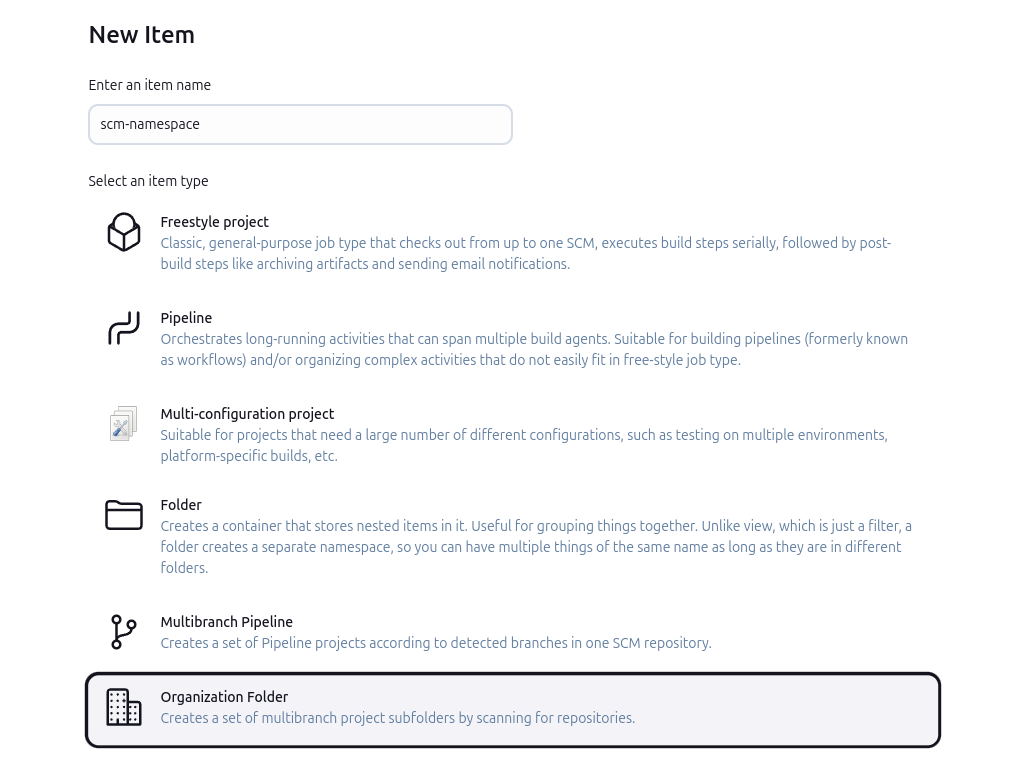

How to select an organization folder

In the configuration form for this item, select the Repository Sources > Add button and choose SCM-Manager Namespace.

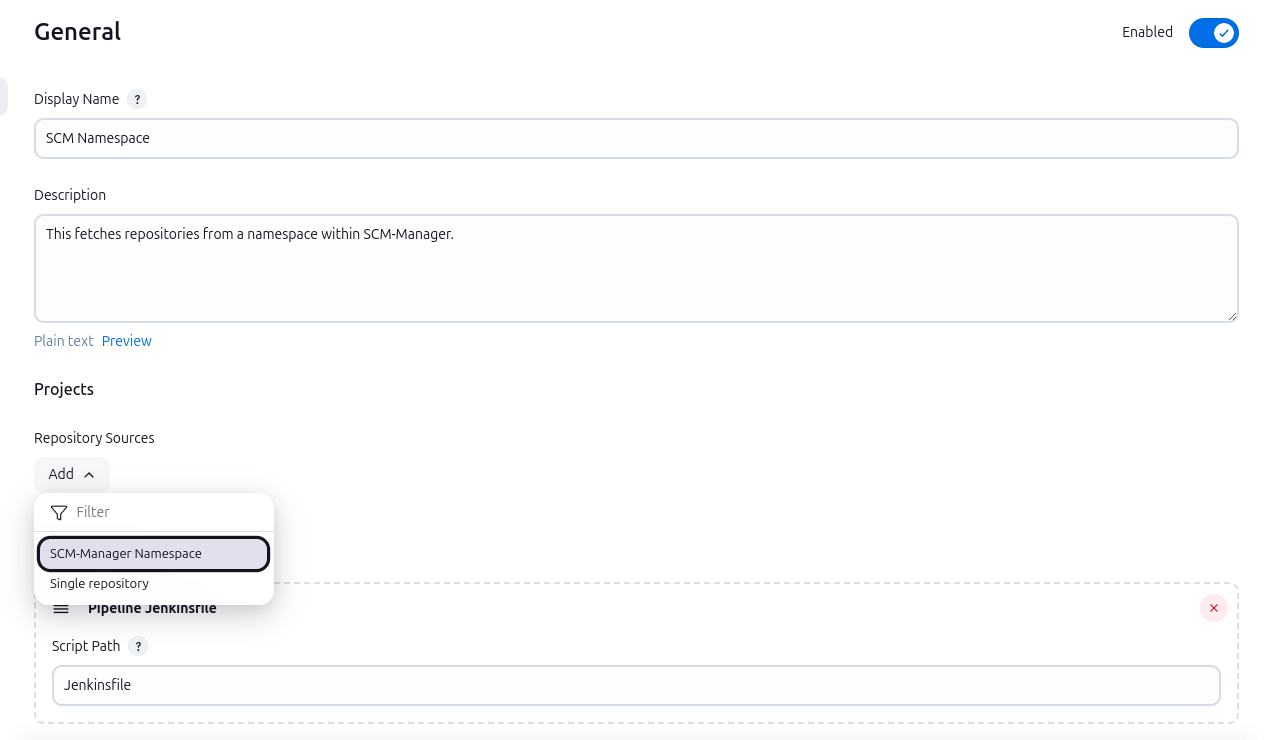

How to select an SCM-Manager namespace as organization folder

Within the new form, enter the base URL of your SCM-Manager instance and select according credentials. This plugin will then load a list of all available namespaces you can select from.

As an alternative to a concrete namespace, you can select --all-- if you want to create build jobs for all repositories of the whole SCM-Manager instance. Please note that in this case, the folders for the jobs will be named with the pattern namespace/name.

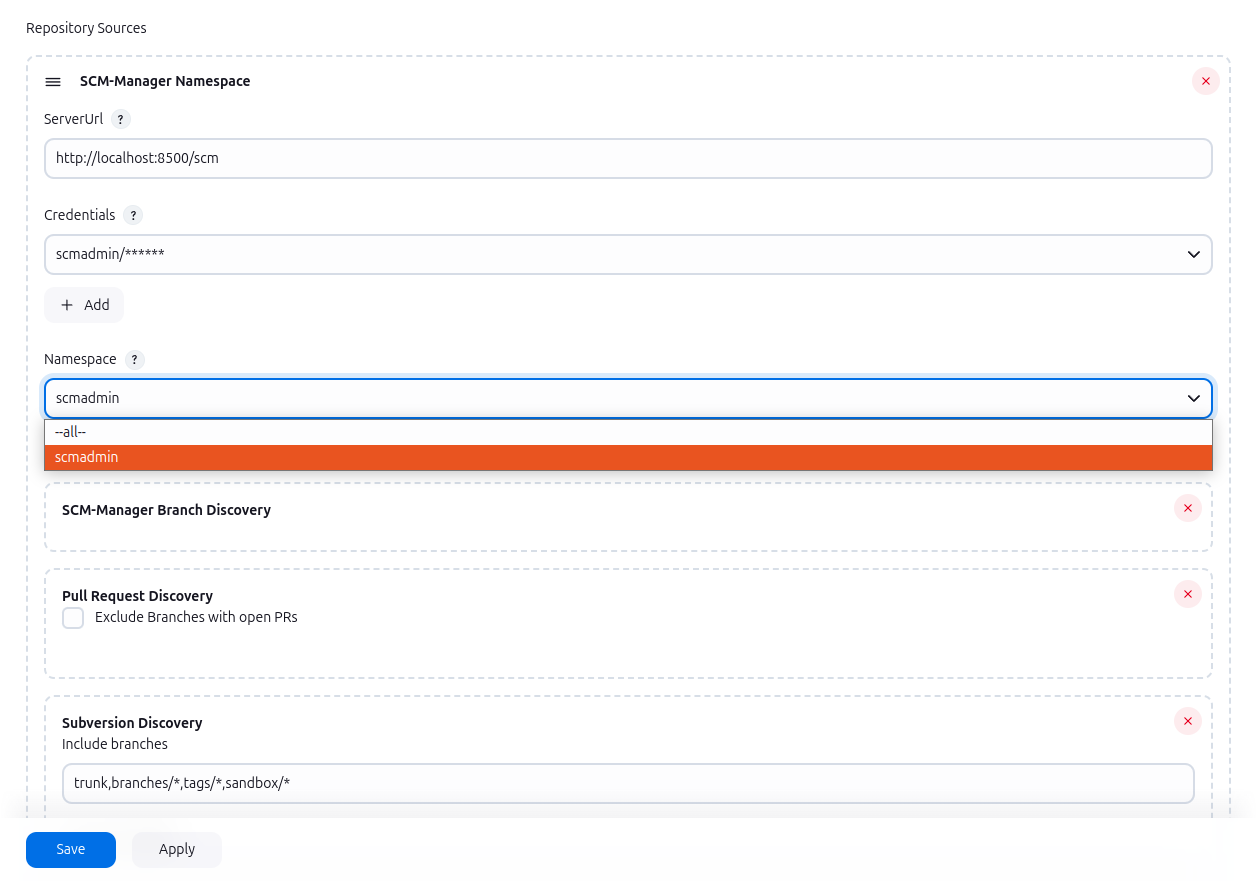

Example of a config for a namespace item

Finally, you can select behaviours where you can choose whether (for example) branches, tags or pull requests shall be built.

JobDSL

Have a look at the following example in order to create a build job for an SCM-Manager namespace with the JobDSL:

organizationFolder("spaceships") {
  organizations {
    scmManagerNamespace {
      serverUrl('https://scm.hitchhiker.com')
      credentialsId('my-secret-id')
      namespace("spaceships")
      discoverBranches(true)
      discoverPullRequest(true)
      discoverTags(false)
      discoverSvn {
        includes("trunk,branches/*,tags/*,sandbox/*")
        excludes("")
      }
    }
  }
}
// scan namespace directly after creation
queue("spaceships")

The discover* parameters are optional, the example above shows the default values. To disable subversion builds, a false can be passed to the discoverSvn method e.g.: discoverSvn(false). To build all namespaces of the SCM-Manager instance, the pseudo namespace --all-- can be used.

Navigation

In different pages of Jenkins, you can find links to the corresponding SCM-Manager page:

  • In multibranch pipelines, you can find the link "SCM-Manager" in the main navigation on the left. This leads you directly to the main page of the repository in SCM-Manager.
  • In a job for a concrete branch or a tag, the link "SCM-Manager" in the main navigation on the left will get you directly to the sources in SCM-Manager for this branch or tag.
  • In a job for a pull request, the link "SCM-Manager" in the main navigation on the left will navigate to the pull request in SCM-Manager.
  • From the page for a build result, the link "SCM-Manager" in the main navigation on the left leads to the Sources view in SCM-Manager for the concrete revision that has been built.
  • In the Changes view, there are links that lead to the details of a change showing the authors, the commit message, and the diff for the commit.

Development

Build

To build the plugin just run the maven package phase.

mvn package

Local Jenkins Instance

Start the local Jenkins instance:

mvn hpi:run

Plugin Update

At times, it may become necessary to update the Jenkins version of this plugin. Take following steps into account:

  • On mvnrepository - io.jenkins.tools.bom, pick the LTS version you want to update this plugin to. You can see all available LTS BOMs in this list on mvnrepository.com.
    • Enter the values into the io.jenkins.tools.bom:bom-{version} dependency.
  • Manually update the versions listed in the properties section. You can pick the version numbers from the respective artifact list of the BOM version on mvnrepository.com.
  • Also consider to update the version of org.jenkins-ci.plugins:plugin (the parent). Check out the latest version here.
