Warning
The ORAS Java SDK is currently in beta state and might impact the stability of this plugin.
It's configuration and APIs might change in future releases
Stores archived build artifacts and stashes in an OCI registry using ORAS, via the ORAS Java API plugin.
- The OCI repository is the sanitized Jenkins job full name (folders included), e.g. the job
folder/My Jobmaps to the repositoryfolder/my-job. - Every build's archived artifacts are anchored by a small "root" artifact, tagged with the build number (e.g.
9). This root artifact carries no content of its own; it only exists to be referenced. - Every archived file is pushed as its own single-layer manifest that refers back to the build's root artifact using the OCI 1.1
subjectfield (i.e. it's a referrer of the root artifact). The archived path (relative to the artifacts root) is stored both as a manifest annotation and as the layer'sorg.opencontainers.image.titleannotation. - Discovering every file archived for a build is therefore a single call to the registry's referrers API for the root artifact's digest - no separate index needs to be built or maintained.
- Stashes are simpler: a single artifact, tagged
stash-<name>, with one tar.gz layer.

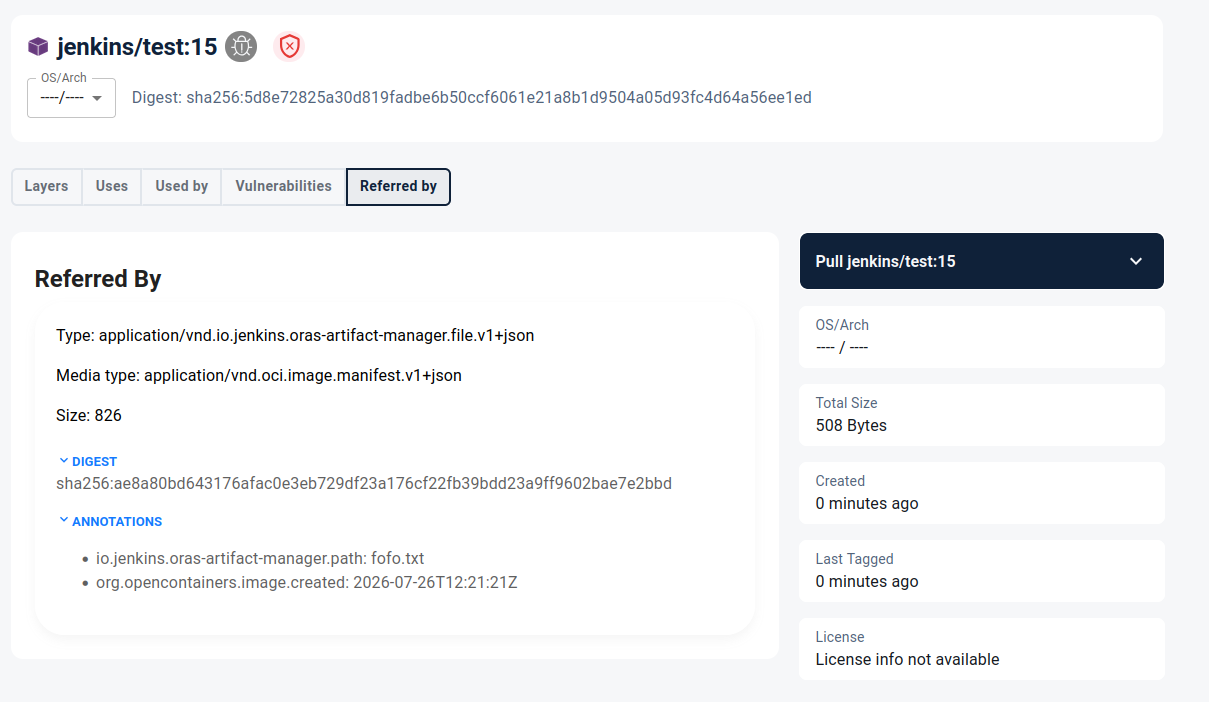

Example of an Artifact (discovered via ORAS)
oras discover localhost:5000/test:13
localhost:5000/test@sha256:ea376d3b8be4af2ddef42516fafe57e27e1d667f50b8c6b45c57807aa189c93c
└── application/vnd.io.jenkins.oras-artifact-manager.file.v1+json
├── sha256:4ab3a792e7052bb85cd2d75c8a5ae4910fac665bf053f4bb6e5c10c9d2527733
│ └── [annotations]
│ ├── io.jenkins.oras-artifact-manager.path: fofo.txt
│ └── org.opencontainers.image.created: "2026-07-26T10:10:34Z"
├── sha256:f160aba27541d93f989602ba74315d6c768a338271c99855a11d726a0572e5aa
│ └── [annotations]
│ ├── org.opencontainers.image.created: "2026-07-26T10:10:34Z"
│ └── io.jenkins.oras-artifact-manager.path: test/bar.txt
└── sha256:5b6950cad951815434d9cb49ac640c2e09f6a34fe54a746daad07cb959944975
└── [annotations]
├── io.jenkins.oras-artifact-manager.path: test/tata/toto.txt
└── org.opencontainers.image.created: "2026-07-26T10:10:34Z"
The root manifest looks like
oras manifest fetch localhost:5000/test:13 | jq
{
"schemaVersion": 2,
"mediaType": "application/vnd.oci.image.manifest.v1+json",
"artifactType": "application/vnd.io.jenkins.oras-artifact-manager.build.v1+json",
"config": {
"mediaType": "application/vnd.oci.empty.v1+json",
"digest": "sha256:44136fa355b3678a1146ad16f7e8649e94fb4fc21fe77e8310c060f61caaff8a",
"size": 2,
"data": "e30="
},
"annotations": {
"org.opencontainers.image.created": "2026-07-26T10:10:34Z",
"io.jenkins.oras-artifact-manager.build-number": "13",
"io.jenkins.oras-artifact-manager.job": "test"
},
"layers": []
}
A file manifest looks like
oras manifest fetch localhost:5000/test@sha256:4ab3a792e7052bb85cd2d75c8a5ae4910fac665bf053f4bb6e5c10c9d2527733 | jq
{
"schemaVersion": 2,
"mediaType": "application/vnd.oci.image.manifest.v1+json",
"artifactType": "application/vnd.io.jenkins.oras-artifact-manager.file.v1+json",
"config": {
"mediaType": "application/vnd.oci.empty.v1+json",
"digest": "sha256:44136fa355b3678a1146ad16f7e8649e94fb4fc21fe77e8310c060f61caaff8a",
"size": 2,
"data": "e30="
},
"subject": {
"mediaType": "application/vnd.oci.image.manifest.v1+json",
"digest": "sha256:ea376d3b8be4af2ddef42516fafe57e27e1d667f50b8c6b45c57807aa189c93c",
"size": 506
},
"annotations": {
"io.jenkins.oras-artifact-manager.path": "fofo.txt",
"org.opencontainers.image.created": "2026-07-26T10:10:34Z"
},
"layers": [
{
"mediaType": "application/vnd.oci.image.layer.v1.tar",
"digest": "sha256:ce88c3c4e094598f8254b0517c6efa781adccdda66d796fd5100f7f10947447d",
"size": 5,
"annotations": {
"org.opencontainers.image.title": "fofo.txt"
}
}
]
}

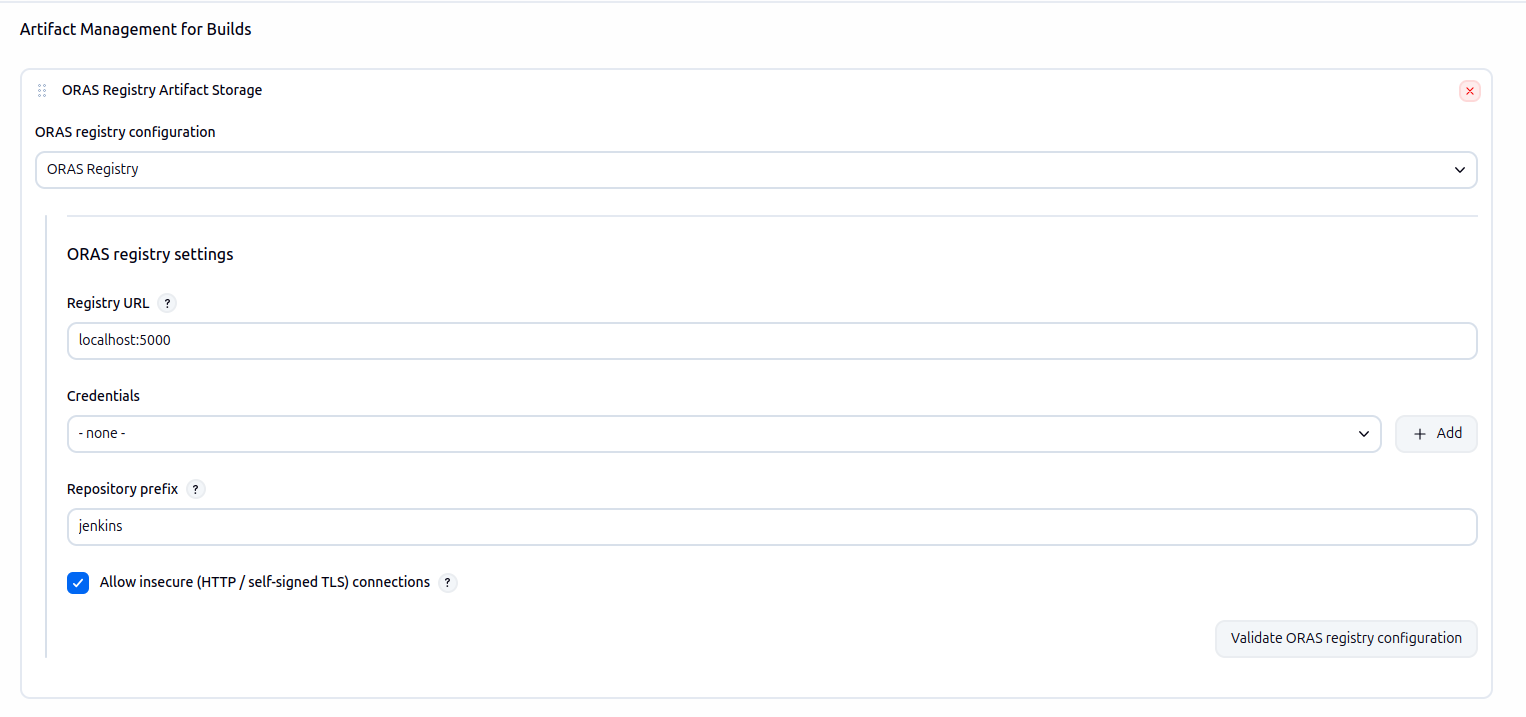

Configure a global ORAS registry (Manage Jenkins » System, under the Build artifact management for builds / Artifact Manager section), pointing it at your registry URL and, optionally, credentials. Then add an ORAS Registry Artifact Storage artifact manager, referencing that registry configuration.
Archived artifacts and stashes from every job will then be stored in the configured registry, following the model described above.
Report issues and enhancements in the GitHub issue tracker.
Licensed under MIT, see LICENSE
