OpenMFA

OpenMFA is a Jenkins plugin that adds TOTP-based MFA for interactive logins. It introduces setup, verification, and management flows for user accounts inside Jenkins.

• OpenMFA Plugin
  • Table of Contents
  • Features
  • Requirements
  • Getting Started
  • User Flow
  • MFA User Management
  • Remember MFA ("Keep me signed in")
  • Configuration as Code (JCasC)
  • MFA Exemptions
  • Ephemeral JENKINS_HOME (Kubernetes / jenkins-operator)
  • Security Notes
  • Development
    • VS Code Debugging
    • Using the .env File
    • Code Style
  • License

• TOTP MFA using authenticator apps (RFC 6238 compatible)
• QR-based enrollment flow for end users
• Global admin configuration for issuer and enforcement
• MFA user management page for administrators
• Session-based MFA verification after primary login
• Remember MFA across sessions for users who check "Keep me signed in" (signed cookie, configurable duration, disabled by setting it to 0)
• Basic brute-force protection on code verification attempts
• Supports Jenkins dark theme for all UI elements
• Configurable exemptions for service accounts and specific roles

• Jenkins 2.568.3 or newer

1. Install the plugin from the Jenkins Plugin Manager or build it from source.
2. Go to Manage Jenkins -> Security -> OpenMFA Configuration.
3. Configure:
   • Issuer Name
   • Require MFA for all users
   • Remember MFA for "Keep me signed in" (hours) (default: 24, 0 disables)
   • Exempt Users (optional)
   • Exempt Roles (optional)
4. Save settings.
5. Ask users to enroll via the OpenMFA setup page before broad enforcement.

Showcases

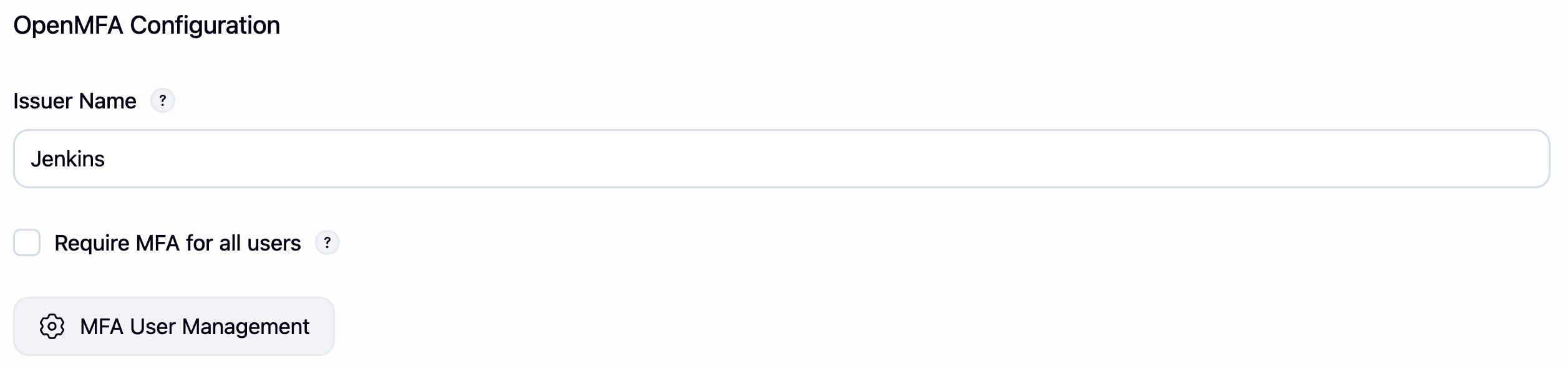

(OpenMFA Global Configuration: Manage Jenkins > Security > OpenMFA Configuration)

1. User signs in with username/password.
2. If MFA is required and the user is not enrolled, user is redirected to MFA setup.
3. User scans QR code in authenticator app and verifies setup.
4. On future logins, user enters a 6-digit TOTP code.

Showcases

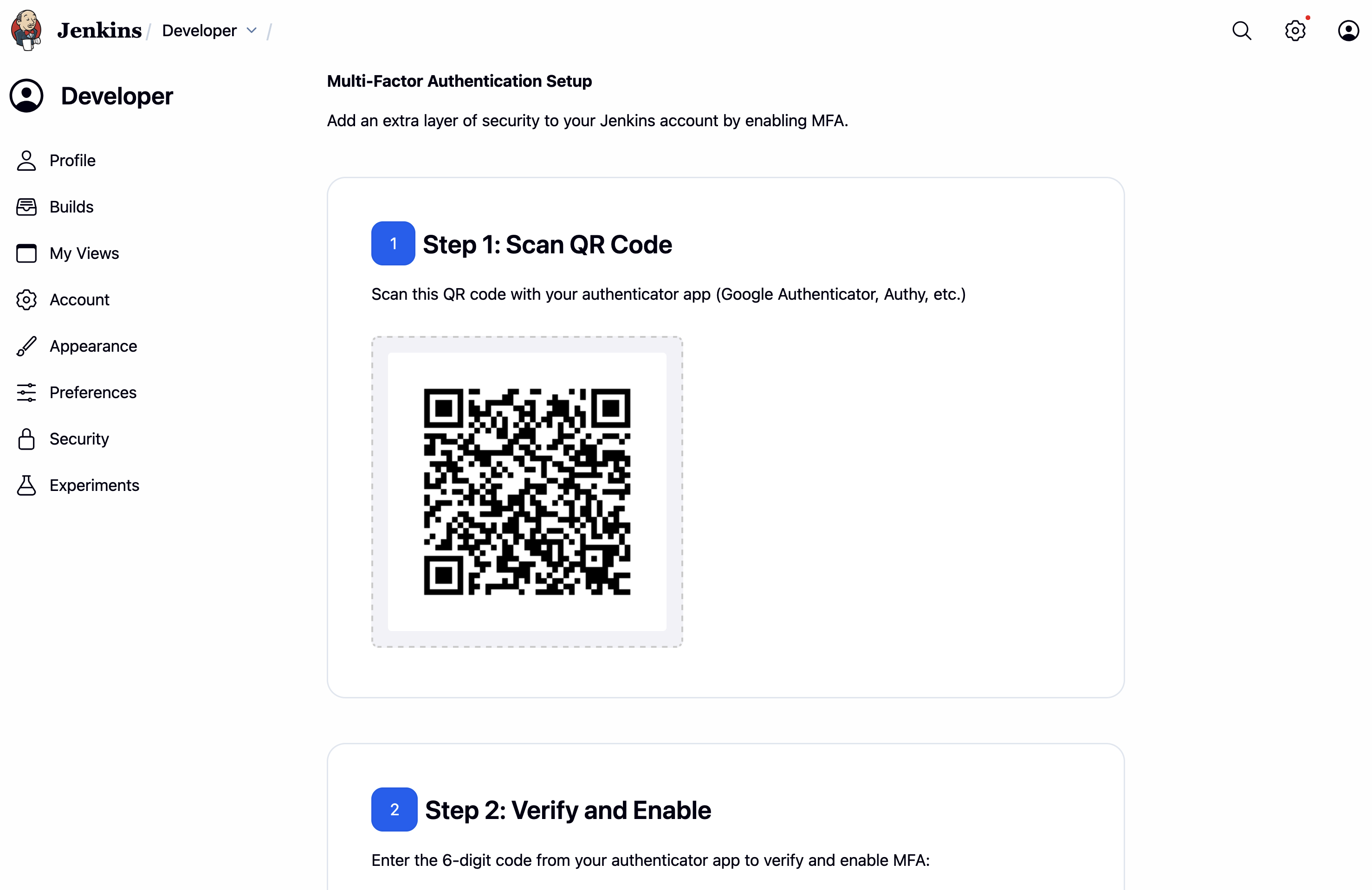

(MFA setup page: User Property > Security > Setup MFA)

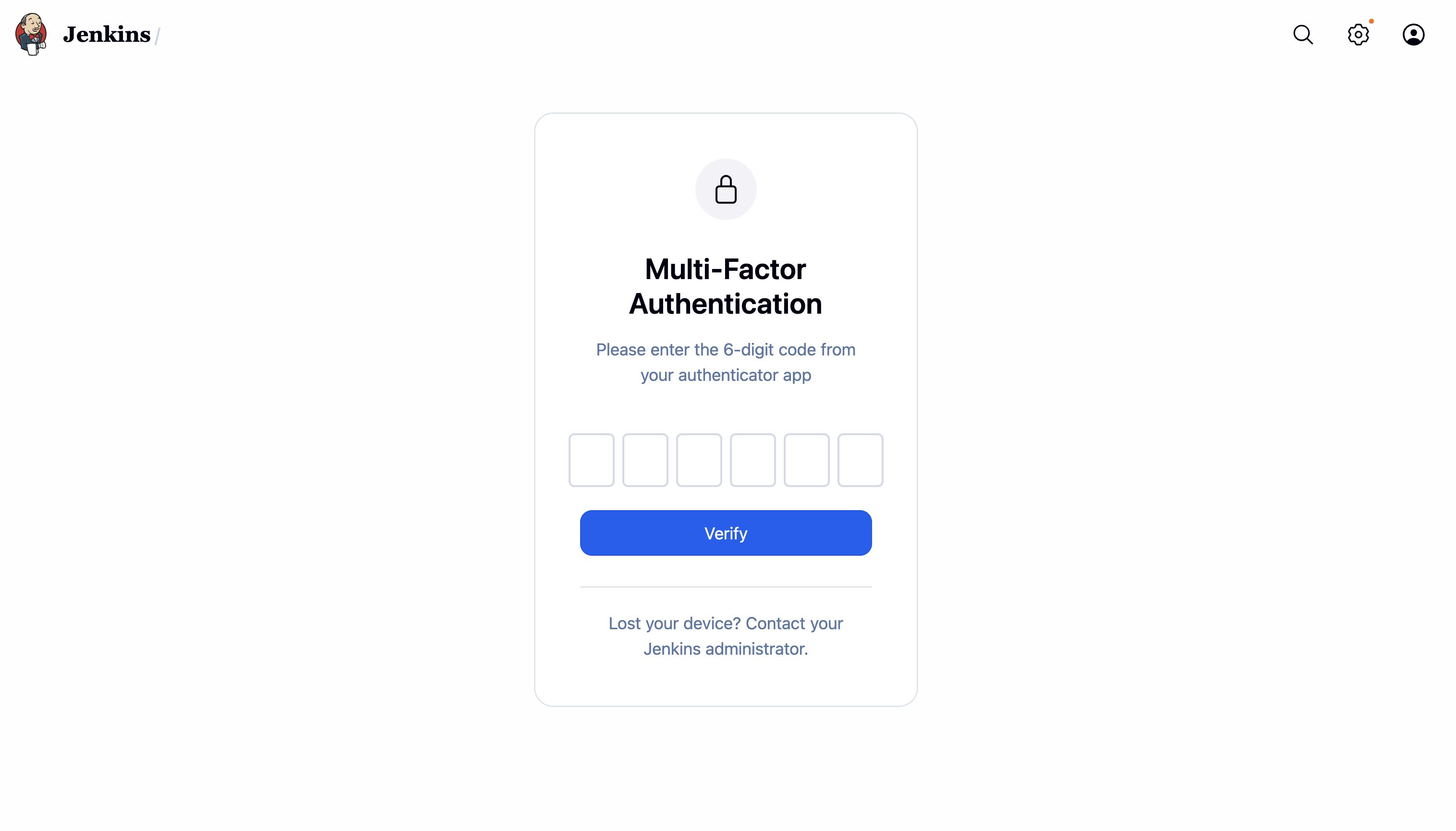

(MFA login challenge: after Jenkins login)

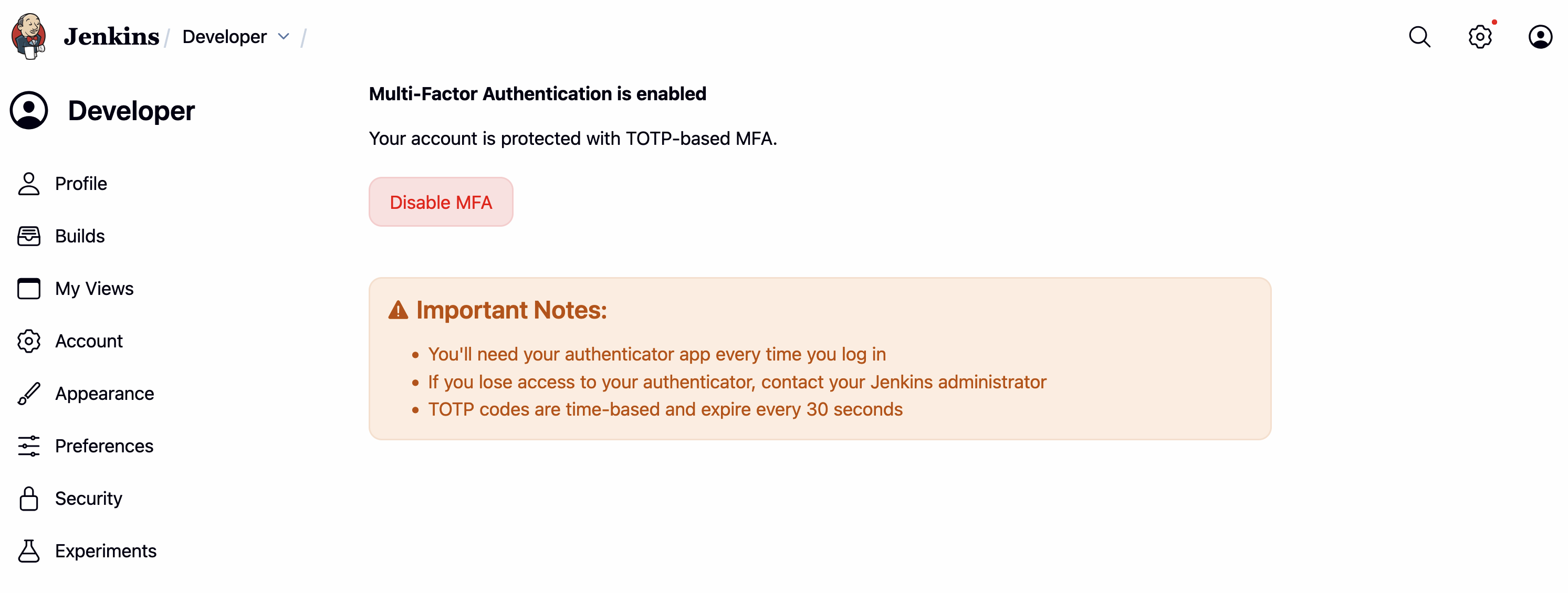

(MFA enabled: User Property > Security > Manage MFA )

(MFA enabled: User Property > Security)

• Go to Manage Jenkins > MFA User Management.
• Use this page to inspect enrollment state and perform admin-side MFA operations.

Showcases

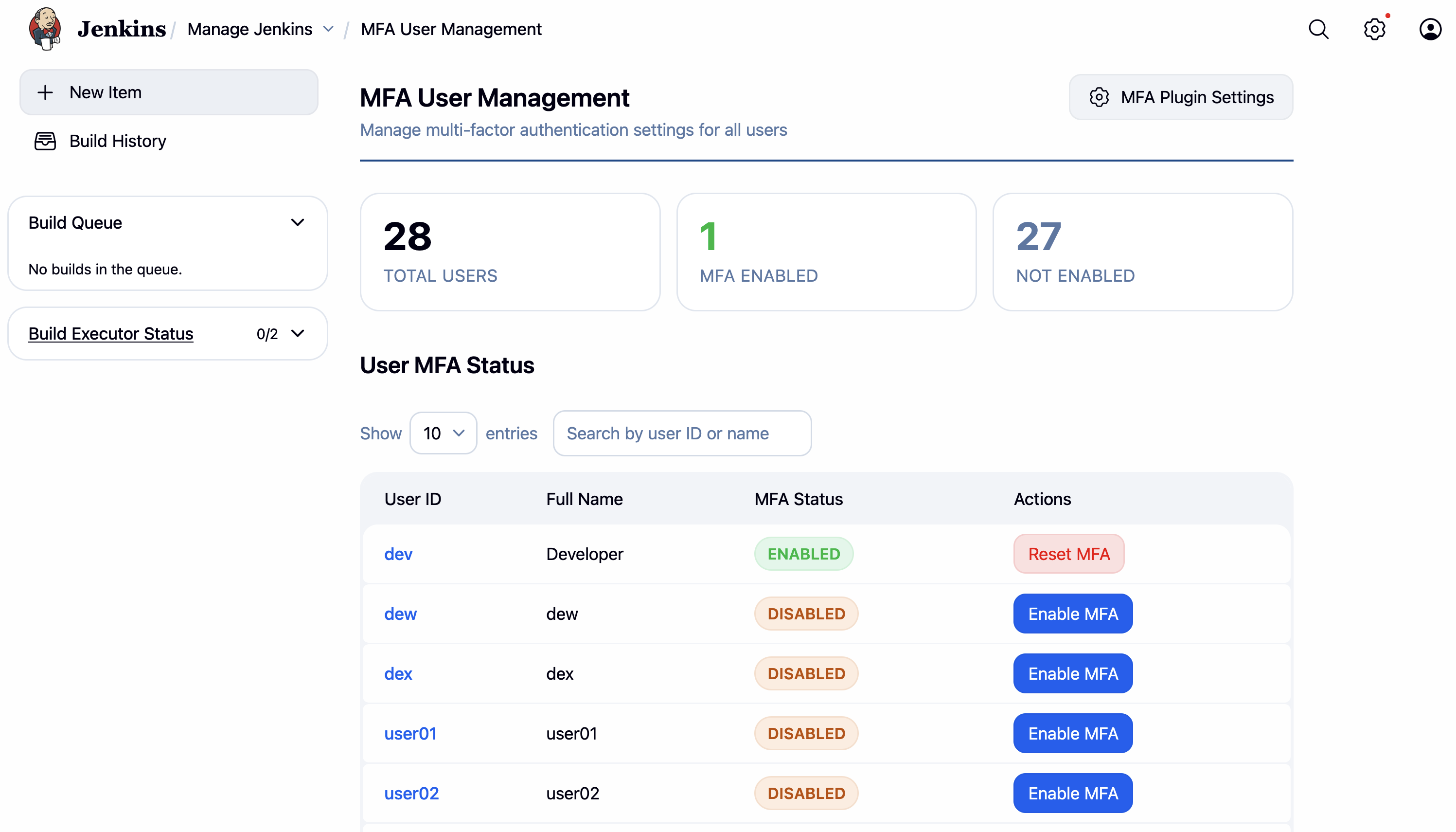

(MFA user management: Manage Jenkins > MFA User Management)

By default, MFA verification lives only in the HTTP session, so every new session (new browser session, session timeout, controller restart) triggers a new MFA challenge -- even for users who checked Jenkins' "Keep me signed in" at login.

With this feature, users who logged in with "Keep me signed in" receive a long-lived openmfa-remember cookie after passing MFA and are not challenged again until it expires. Users who log in without "Keep me signed in" keep the per-session behavior.

How it works:

• The cookie is a stateless, HMAC-SHA256-signed token bound to the username, an absolute expiry, and a hash of the user's current TOTP secret. Nothing is stored server-side per device.
• Duration is configured by Remember MFA for "Keep me signed in" (hours) (default: 24). Setting it to 0 disables the feature entirely.
• Re-enrolling or disabling MFA changes the TOTP secret and therefore invalidates all previously issued cookies for that user.
• Logging out clears the cookie.
• The signing key is generated automatically on first use and persisted in the global configuration. Rotating the key (or setting a new one via JCasC) immediately invalidates all issued remember-MFA cookies -- this is the emergency "forget all remembered devices" switch.

No configuration is required on a standard installation with a persistent JENKINS_HOME. For ephemeral setups, see Ephemeral JENKINS_HOME.

This plugin exposes global configuration and can be managed through Jenkins Configuration as Code.

Recommended workflow:

1. Configure OpenMFA once from the Jenkins UI.
2. Export current JCasC from your Jenkins instance.
3. Copy the OpenMFA section into your managed JCasC repository.
4. Apply via your standard CASC_JENKINS_CONFIG workflow.

Example:

security:
  openMFA:
    issuer: 'Jenkins'
    requireMFA: true
    rememberMfaHours: 24
    # Optional. Omit to let the plugin generate and persist a key in
    # JENKINS_HOME. Set it explicitly (via any JCasC secret source, e.g.
    # Vault, env var, or mounted secret) when JENKINS_HOME is ephemeral,
    # so remember-MFA cookies survive restarts.
    rememberMfaKey: ${OPENMFA_REMEMBER_KEY}
    exemptUsers:
      - svc-deploy
      - break-glass
    exemptRoles:
      - ci-agents
      - service-accounts

You can exempt specific users or roles from MFA requirements:

• Exempt Users: Individual usernames that bypass MFA (case-insensitive)
• Exempt Roles: Group/role names that bypass MFA for all members

Exemptions are useful for:

• Service accounts used by CI/CD pipelines
• Emergency break-glass accounts
• Automated agents that cannot complete MFA

Note: Exempted users bypass MFA entirely. Do not exempt regular user accounts.

On setups where JENKINS_HOME does not survive restarts (e.g. jenkins-operator with its default ephemeral home), two pieces of state need attention:

• Remember-MFA signing key -- set rememberMfaKey via JCasC from an external secret source (Vault, Kubernetes Secret, env var). The key is then re-applied on every boot and issued cookies stay valid across pod restarts. Without it, each fresh instance generates a new key and all remembered devices are challenged again.
• User TOTP enrollments -- stored by Jenkins in $JENKINS_HOME/users/ and encrypted with $JENKINS_HOME/secrets/master.key. These are runtime user data and cannot come from configuration: persist users/ and secrets/ together (PVC mounts or backup/restore), always as a pair -- one without the other is unusable.

• Treat JCasC files and Jenkins configuration files as privileged, since they control authentication behavior.
• API token authentication is not challenged with interactive MFA. Basic auth with a real password is challenged; use API tokens for scripted access.
• OpenMFA uses per-session verification and redirects back to the original destination after successful MFA.
• The remember-MFA cookie is HttpOnly, Secure on HTTPS, HMAC-SHA256 signed with constant-time comparison, and carries no secret material -- only the username, expiry, and signature.

The maven-hpi-plugin offers important commands for Jenkins plugin development:

• Build and package your plugin (.hpi):

  mvn install

  This compiles the plugin and creates the .hpi file (e.g., target/openmfa-plugin.hpi), suitable for installation in Jenkins.

• Run Jenkins in development mode with your plugin:

  mvn hpi:run

  This starts a local Jenkins controller instance with your plugin pre-installed, typically at http://localhost:8080/jenkins/.

If you use Visual Studio Code, the repo includes a sample .vscode/launch.json for debugging Jenkins plugin development:

• Debug Jenkins Plugin: Attaches to a Jenkins process started with mvn hpi:run in debug mode (-Dmaven.surefire.debug), listening on port 5005.

• Debug Jenkins Plugin (mvnDebug): Attaches to Jenkins launched with mvnDebug, typically listening on port 8000.

To use:

1. Open this repository in VS Code.
2. In VS Code, go to the "Run and Debug" panel and select a launch configuration.

You can set breakpoints in your Java code immediately.

You can configure your development environment by creating a .env file in the project root. This file is used to provide environment variables, such as JAVA_HOME, which are required for Maven or Jenkins commands.

• Sample .env file:

  JAVA_HOME=/path/to/your/java
  # JENKINS_HOME=/path/to/jenkins_home (optional)


How to use:

1. Copy .env.example to .env:

   cp .env.example .env

2. Edit .env, setting JAVA_HOME to your local Java installation and any other variables as needed.
3. The .env file is automatically loaded when running development commands via the provided .vscode/run.sh (used in vscode/tasks.json) script, ensuring your environment variables (like JAVA_HOME) are available.

Tip: .env is ignored by git, so your local secrets and paths are not committed. Use .env.example as a starting point for other developers.

This project uses Spotless with Eclipse formatter rules from fmt.xml. It also ships a prek config in .pre-commit-config.yaml.

• Install git hooks with prek:

  prek install

• Run all configured checks/formatters with prek:

  prek run --all-files

• Check formatting:

  mvn spotless:check

• Apply formatting:

  mvn spotless:apply

Spotless checks are also executed during Maven compile, so formatting issues fail the build.

MIT. See LICENSE.md.
