Logstash
2.3.1Minimum Jenkins requirement: 2.60.3ID: logstash

This plugin pushes logs and build data to a Logstash indexer such as Redis, RabbitMQ ElasticSearch, Logstash or Valo.

Migration from v1.x

With version 2.0 the global configuration has been moved from Global Tool Configuration to the regular Jenkins configuration page (Jenkins → Manage Jenkins → Configure System). There was also a major change in the way the plugin works. It is no longer a BuildWrapper but a ConsoleLogFilter and you enable it via a JobProperty. This is necessary to reliably ensure that passwords are masked when the MaskPasswords plugin is installed and allow to enable log forwarding globally.

An existing global configuration will be migrated and FreeStyleJobs that use the BuildWrapper will be converted to use the JobProperty after updating the plugin and restarting Jenkins.

The migration from v0.8.0 to 2.0 is not tested. You will definitely need to configure the indexer in the global configuration.

Migration from v0.8.0 to v1.x

Beginning with version 1.0.0, connection information for the Logstash indexer is stored in a global config (version 0.8.0 and older stored this information in the project settings). Upon upgrading you will need to go to Jenkins → Manage Jenkins → Global Tool Configuration to re-enter the connection information.

You should also refresh the configuration of every job that uses this plugin to eliminate the obsolete fields and prevent warnings from occurring in the Jenkins server logs. To do this, either edit the jobs individually in the UI and click the "Save" button, or go to Jenkins → Manage Jenkins → Manage Old Data and click "Discard Unreadable Data".

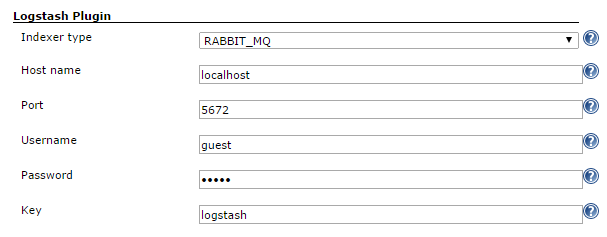

Figure 1: Global configuration settings

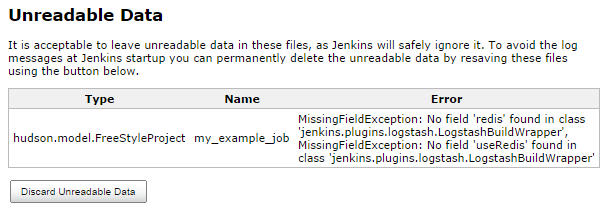

Figure 2: Obsolete configuration data found in jobs using v0.8.0 or older.

Features

Indexers Currently Supported

The following data stores are currently supported for pushing logs and build data to:

  • Redis
  • RabbitMQ, vhosts are supported
  • Syslog
  • Elastissearch (you have to configure the url including the index and a type, e.g. http://elasticseach:9200/logstash/jenkins. Specifying just the index is not sufficient)
  • Logstash
    1. When configured with a tcp input choose logstash mode
    2. When configured with a http input choose elasticsearch mode. In that case index and type are not required.



Enable Globally

It is now possible to enable the log forwarding globally.

Note: Enable globally doesn't work for pipeline jobs currently as the workflow api doesn't support this yet (see JENKINS-45693)

JobProperty

This component streams individual log lines to the indexer for post-processing, along with any build data that is available at the start (some information such as the build status is unavailable or incomplete).

Post-Build Publisher

This component pushes the tail of the job's log to the indexer for post-processing, along with all build data at the time the post-build action had started (if any post-build actions are scheduled after this plugin they will not be recorded).

Pipeline

Publisher

Logstash plugin can be used as a publisher in pipeline jobs to send the tail of the log as a single document.

Example for publisher in pipeline
node('master') {
	sh'''
		echo 'Hello, world!'
	'''
	logstashSend failBuild: true, maxLines: 1000
}

Note: Due to the way logging works in pipeline currently, the logstashSend step might not transfer the lines logged directly before the step is called. Adding a sleep of 1 second might help here.
Note: In order to get the the result set in pipeline it must be set before the logstashSend step.
Note: the  logstashSend step requires a node to run.

Step with Block

It can be used as a wrapper step to send each log line separately.

Once the result is set, it will appear in the data sent to the indexer.

Note: when you combine with timestamps step, you should make the timestamps the outer most block. Otherwise you get the timestamps as part of the log lines, basically duplicating the timestamp information.

Example for pipeline step
timestamps {
  logstash {
    node('somelabel') {
      sh'''
		echo 'Hello, World!'
	  '''
      try {
        // do something that fails
        sh "exit 1"
        currentBuild.result = 'SUCCESS'
	  } catch (Exception err) {
        currentBuild.result = 'FAILURE'
      }
    }
  }
}



Note: Information on which agent the steps are executed is not available at the moment.



JSON Payload Format

JSON payload Example
{
   "data":{
      "id":"2014-10-13_19-51-29",
      "result":"SUCCESS",
      "projectName":"my_example_job",
      "fullProjectName":"folder/my_example_job",
      "displayName":"#1",
      "fullDisplayName":"My Example Job #1",
      "url":"job/my_example_job/1/",
      "buildHost":"Jenkins",
      "buildLabel":"",
      "buildNum":1,
      "buildDuration":0,
      "rootProjectName":"my_example_job",
      "rootFullProjectName":"folder/my_example_job",
	  "rootProjectDisplayName":"#1",
      "rootBuildNum":1,
      "buildVariables":{
         "PARAM1":"VALUE1",
         "PARAM2":"VALUE2"
      },
      "testResults":{
         "totalCount":45,
         "skipCount":0,
         "failCount":0,
         "failedTests":[]
      }
   },
   "message":[
      "Started by user anonymous",
      "Building in workspace /var/lib/jenkins/jobs/my_example_job/workspace",
      "Hello, World!"
   ],
   "source":"jenkins",
   "source_host":"http://localhost:8080/jenkins/",
   "@timestamp":"2014-10-13T19:51:29-0700",
   "@version":1
}

Example payload sent to the indexer (e.g. RabbitMQ) using the post-build action component. Note that when the buildwrapper is used, some information such as the build result will be missing or incomplete, and the "message" array will contain a single log line.

Note that data.testResults will only be present if a publisher records your test results in the build, for example by using the JUnit Plugin.

Changelog

See Changelog on github

Issues

To report a bug or request an enhancement to this plugin please create a ticket in JIRA.
