IBM i Pipeline Steps

logo

Jenkins plugin providing IBM i pipeline steps such as command execution, Db2 queries execution, Save Files transfer and IFS transfers.


Configuration

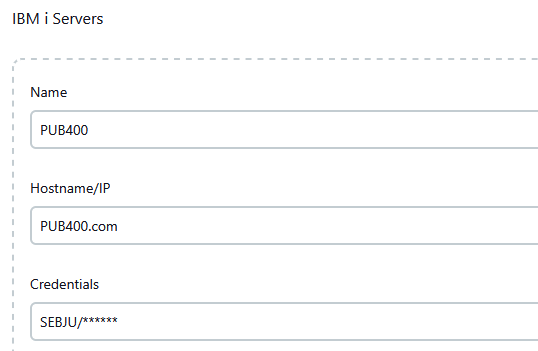

One or more IBM i servers need to be declared in Jenkins System settings before the IBM i steps can be used.

  1. Open the System settings: Manage Jenkins -> System
  2. Scroll down to the IBM i Servers section and click Add IBM i
  3. Fill in the Name and Hostname/IP fields, then select the Credentials to use to connect to the server. Click on the + Add button to add new credentials.
  4. Click on Advanced to show optional fields to force a CCSID and enable secure connection

ibmi_servers ibmi_server

Steps

onIBMi

Every IBM i step below must be run inside an onIBMi step block. This step opens the connection to the IBM i server and makes it available to the other IBM i steps. Once the end of the onIBMi block is reached, the connection is closed, related resources are freed and the IBMI_ environment variables are removed.

IBMI_ environment variables

This steps loads the following environment variables during its execution. These variables are accessible through the env object (e.g. env.IBMI_PROFILE).

Name Description
IBMI_HOST The connected IBM i hostname
IBMI_PROFILE The user profile used to connect to the IBM i
IBMI_CCSID The current CCSID
IBMI_COMMAND_JOB The IBM i command job identifier (i.e. number/user/name)
IBMI_VERSION The OS version of the IBM i (i.e. version.release)

Parameters

Name Required Type Description
name String The name of an IBM i server, as defined in the System settings.
iasp String The name of an iASP that will be set for this connection (in both command and database jobs).
traceEnabled boolean When true, more logs will be printed during IBM i steps execution; defaults to false.

Example

onIBMi('PUB400') {
    print "Command job is ${env.IBMI_COMMAND_JOB}"
    print "Current CCSID is ${env.IBMI_PROFILE}"

    //Some pipeline steps running on PUB400
    ibmiCommand "SNDMSG MSG('Hello from Jenkins') TOUSR(ESPENGLER)"
}

onIBMi(server: 'DEVSERVER', iasp: "IASP1") {
    //Some pipeline steps running on DEVSERVER with iASP IASP1 enabled
    ibmiCommand "CRTLIB LIB(IASPLIB) ASPDEV(IASP1)"
}

onIBMi(server: 'PUB400', traceEnabled: true) {
    //Some pipeline steps running on PUB400 with more logs
    ibmiCommand "SNDMSG MSG('Hello from Jenkins again') TOUSR(PVENKMAN)"
}

ibmiCommand

Runs a CL command and returns a CallResult object.

Parameters

Name Required Type Description
command String The CL command to run
failOnError boolean v

Returned value

A CallResult object.

Example

//Create a library
ibmiCommand "CRTLIB LIB(COOLSTUFF)"

//Create a library and carry on only if it exists
def library = 'COOLSTUFF'
def result = ibmiCommand(command: "CRTLIB LIB($library)", failOnError: false)
if (!result.successful) {
    if (result.getMessage('CPF2111') != null) {
        echo "Library $library already exists"
    } else {
        //Any other error is reported and stops the pipeline
        error result.getPrettyMessages()
    }
}

//Delete a library; carry on whatever happens
ibmiCommand(command: "CRTLIB LIB(MAYBELIB)", failOnError: false)

ibmiRunSQL

Executes a Db2 for i SQL query and returns an SQLResult object.

Parameters

Name Required Type Description
sql string The SQL query to run

Returned value

An SQLResult object.

Example

//List all listening ports
def result = ibmiRunSQL "SELECT * from QSYS2.netstat_info where local_address = '0.0.0.0'"
print "Query returned ${result.rowCount} row(s)"

//Print well-known ports
result.rows.each { row ->
    def portName = row.get("LOCAL_PORT_NAME")
    if (portName != null) {
        print "${row.getString("LOCAL_PORT")} ($portName)"
    }
}

//Run a delete query
ibmiRunSQL "Call QSYS2.QCMDEXC('DSPOBJD OBJ(QGPL/*ALL) OBJTYPE(*ALL) DETAIL(*FULL) OUTPUT(*OUTFILE) OUTFILE(QTEMP/OBJECTS)')"
def delete = ibmiRunSQL "Delete from QTEMP/OBJECTS"
print "Query deleted ${delete.updateCount} row(s)"

ibmiGetSAVF

Downloads a Save File by copying it to a temporary stream file on the IFS and downloading it. The temporary stream file is deleted once the step is done. The step returns the description of the Save File as well as its content.

Parameters

Name Required Type Description
library String The Save File library.
name String The Save File name.
toFile String A local path where the Save File will be downloaded.

Returned value

A SaveFileContent object.

Example

def savfContent = ibmiGetSAVF(libray: "QTEMP", name: "BACKUP", toFile: "backup.savf")
print "${savfContent.entries.size} object(s) saved"
//Print each saved object
savfContent.entries.each { entry -> print "  - ${entry.name} (${entry.type})" }

ibmiPutSAVF

Uploads a local file on the IFS and restore the Save File as an Object in a library with the given name. The local file must be a stream file of a Save File. The uploaded stream file is deleted once the step is done. The step returns the description of the Save File as well as its content.

Parameters

Name Required Type Description
fromFile String The local path of the Save File's stream file to upload.
library String The Save File library.
name String The Save File name.

Returned value

A SaveFileContent object.

Example

def backupContent = ibmiPutSAVF(fromFile: "backup.savf", library: "QTEMP", name: "BACKUP")
imbiCommand "RSTLIB SAVLIB(${backupContent.savedLibrary}) DEV(*SAVF) SAVF(QTEMP/BACKUP)"

ibmiGetIFS

Downloads a remote IFS file or folder and puts it in a local folder. The local folder is created if needed.

Parameters

Name Required Type Description
from String The remote IFS path of the folder or file to download.
to String The local path of the folder where the from IFS target will be downloaded.

Returned value

None

Example

//Copy an IFS folder to the local workspace root
ibmiGetIFS(from: "/home/rstanz/library", to: ".")

//Copy an IFS file to the local folder named "download"
ibmiGetIFS(from: "/home/wzeddemore/paycheck.txt", to: "download")

ibmiPutIFS

Uploads a local file or folder and puts it in a remote IFS folder. The remote IFS folder is created if needed.

Parameters

Name Required Type Description
from String The local path of the folder or file to upload.
to String The remote IFS path of the folder where the from IFS target will be uploaded.

Returned value

None

Example

//Put a single local file into the remote /tmp/toBeDeleted IFS folder
ibmiPutIFS(from: "jail/slimer.png", to: "/tmp/toBeDeleted")

//Put a local folder into the /home/pvenkman folder (resulting path is /home/pvenkman/tests
ibmiPutIFS(from: "tests", to: "/home/pvenkman")

ibmiGetSPLF

Downloads spooled files from a Job into a local folder and returns the spooled files list.

Parameters

Name Required Type Description
jobName String The Job name.
jobNumber String The Job number.
jobUser String The The Job user.
to String The local path of the folder where the spooled files will be be downloaded.
clearTo boolean If true, the local folder is cleared before downloading the spooled files; defaults to false.

Returned value

A SpooledFiles object.

Example

//Put all spooled files from a job into the local splfs folder
def spooledFiles = ibmiGetSPLF(jobName: "SPMM", jobNumber: "50484", jobUser: "GOZER", to: "splfs")
//Print information about the downloaded spooled files
print "${spooledFiles.size} spooled file(s) downloaded"
spooledFiles.each { splf -> print "${splf.name} (${splf.number})" }

Returned objects

CallResult

Methods Return type Description
getMessages() List<AS400Message> Returns the list of AS400Message generated during the command execution.
getMessage(String messageId) AS400Message Look for the first AS400Message whose ID is messageId and returns it. Returns null if not found.
getPrettyMessages() String Returns a String resulting from the concatenation of every AS400Message returned by the command, one per line, formatted using this pattern: [{id}][{severity}] {text}.
isSuccessful() boolean Returns true if the command execution was successful, false otherwise.

SQLResult

Methods Return type Description
getColumns() List<SQLColumn> Select statements only : the definition of each columns returned by the query.
getColumnCount() int Select statements only : the number of columns returned by the query.
getRows() List<SQLRow> Select statements only : the rows returned by the query.
getRowCount() int Select statements only : the number of rows returned by the query.
getUpdateCount() int Insert/Update/Delete statements only : the number of rows affected by the query.
toJSON() String Select statements only : a JSON representation of the rows.
toCSV() String Select statements only : a CSV representation of the rows. First line is the header, then one line per rows returned

SQLColumn

Methods Return type Description
getName() String The column's name.
getTypeName() String The columns's database-specific type. name.
getSize() int The column's size.
getScale() int The number of digits to right of the decimal point. 0 is returned for data types where the scale is not applicable.

SQLRow

Methods Return type Description
getCells() Map<String,Object> A Map whose key is the column name and the value is the column's value.
get(String columnName) Object Returns the value of the given columnName.
getString(String columnName) String Returns the String value of the given columnName.
getInt(String columnName) int Returns the int value of the given columnName.
getDouble(String columnName) double Returns the double value of the given columnName.
getFloat(String columnName) float Returns the float value of the given columnName.
getShort(String columnName) short Returns the short value of the given columnName.
getBigDecimal(String columnName) BigDecimal Returns the BigDecimal value of the given columnName or null if it cannot be cast.
getDate(String columnName) Date Returns the Date value of the given columnName or null if it cannot be cast.
getTime(String columnName) Time Returns the Time value of the given columnName or null if it cannot be cast.
getTimeStamp(String columnName) Timestamp Returns the Timestamp value of the given columnName or null if it cannot be cast.

SaveFileContent

Methods Return type Description
getName() String The Save File name.
getCreationLPAR() String The name of the IBM i on which the Save File was created.
getSavedLibrary() String The library saved in the Save File.
getDescription() String The Save File description.
getTargetRelease() String The SAVxxx command's TGTRLS parameter; If *CURRENT or *PREV was used, this will return the actual VxRyMz value.
getSize() long The Save File size in bytes.
getEntries() List<SAVFEntry> The list of objects saved in the Save File.
toJSON() String The JSON representation of the SAve File metadata and its content.

SAVFEntry

Methods Return type Description
getName() String The name of the saved Object.
getDescription() String The description of the saved Object.
getExtendedObjectAttribute() String The extended information about the object type.
getLibrary() String The library from which the object was saved.
getOwner() String The object owner's user profile.
getSize() long The total size of the Object in bytes.
getType() String The type of the object.
isDataSaved() boolean Indicates whether the data for this object was saved with the object.

SpooledFiles

All the methods from List< SpooledFile> and the methods below.

Methods Return type Description
toJSON() String The JSON representation of each SpooledFile in the list.

SpooledFile

Methods Return type Description
getName() String The name of the spooled file.
getNumber() int The number of the spooled file.
getSize() long The spooled file size in bytes.
getJobName() String The name of the job that owns the spooled file.
getJobNumber() String The number of the job that owns the spooled file.
getJobUser() String The user of the job that owns the spooled file.
getUserData() String The user-specified data that describes the file.
getFileName() String The local file name of the spooled file.

Examples

Save a library, download the Save File and archive its content description

node {
    stage('IBMi') {
        onIBMi(server: 'PUB400', traceEnabled: true) {
            ibmiCommand "CRTSAVF QTEMP/MYSAVEFILE"
            ibmiCommand "SAVLIB LIB(COOLSTUFF) DEV(*SAVF) SAVF(QTEMP/MYSAVEFILE)"

            def saveFileContent = ibmiGetSAVF library: "QTEMP", name: "MYSAVEFILE", toFile: "COOLSTUFF.savf"
            writeFile encoding: "UTF-8", file: "output/downloadSAVF.json", text: saveFileContent.toJSON()
            archiveArtifacts artifacts: "output/*.json"
        }
    }
}

Transfer a libray from one LPAR to another

node {
    stage('Save') {
        onIBMi(server: 'IBMI_1', traceEnabled: true) {
            ibmiCommand "CRTSAVF QTEMP/BACKUP"
            ibmiCommand "SAVLIB LIB(ECTO1) DEV(*SAVF) SAVF(QTEMP/BACKUP)"
            ibmiGetSAVF library: "QTEMP", name: "BACKUP", toFile: "ecto1.savf"
        }
    }

    stage('Restore') {
        onIBMi(server: 'IBMI_2', traceEnabled: true) {
            def content = ibmiPutSAVF(fromFile: "ecto1.savf", library: "QTEMP", name: "BACKUP")
            ibmiCommand "RSTLIB SAVLIB(${content.savedLibrary}) DEV(*SAVF) SAVF(QTEMP/BACKUP)"
        }
    }
}
