This plugin executes a groovy script in the Jenkins JVM. Typically, the script checks some conditions and changes accordingly the build result, puts badges next to the build in the build history and/or displays information on the build summary page.
Migration from 1.X
From version 2.0, Groovy Postbuild plugin introduces Script Security
Plugin.
Administrators can prevent users without proper privileges from running
harmful scripts.
For details, see Script Security
Plugin.
This doesn't affect Jenkins without security
enabled and
users with administrative privilege (to be exact, with RUN_SCRIPTS
permission).
When you upgrade the Groovy Postbuild plugin from 1.X to 2.X, you and
your Jenkins users
also requires update configurations of Groovy Postbuild, or they will
fail with outputs like this:
ERROR: Failed to evaluate groovy script.
org.jenkinsci.plugins.scriptsecurity.scripts.UnapprovedUsageException: script not yet approved for use
at org.jenkinsci.plugins.scriptsecurity.scripts.ScriptApproval.using(ScriptApproval.java:398)
at org.jenkinsci.plugins.scriptsecurity.sandbox.groovy.SecureGroovyScript.evaluate(SecureGroovyScript.java:165)
at org.jvnet.hudson.plugins.groovypostbuild.GroovyPostbuildRecorder.perform(GroovyPostbuildRecorder.java:343)
at hudson.tasks.BuildStepMonitor$1.perform(BuildStepMonitor.java:20)
at hudson.model.AbstractBuild$AbstractBuildExecution.perform(AbstractBuild.java:785)
at hudson.model.AbstractBuild$AbstractBuildExecution.performAllBuildSteps(AbstractBuild.java:757)
at hudson.model.Build$BuildExecution.post2(Build.java:183)
at hudson.model.AbstractBuild$AbstractBuildExecution.post(AbstractBuild.java:706)
at hudson.model.Run.execute(Run.java:1690)
at hudson.model.FreeStyleBuild.run(FreeStyleBuild.java:46)
at hudson.model.ResourceController.execute(ResourceController.java:88)
at hudson.model.Executor.run(Executor.java:246)
Scripts using only whitelisted methods of manager
Scripts using only whitelisted methods of
manager
can run with using Groovy sandbox.
They can be validated only by checking "Use Groovy Sandbox".
Scripts using non-whitelisted methods
Scripts using non-whitelisted methods of
manager
or methods not of manager requires
approval of administrators.
Administrators should check and approve those scripts in Manage Jenkins > In-process Script Approval.
Scripts using external jar files
If you refer external jar files from your scripts, you need to have those jar files approved by administartors.
Administrators should check and approve those jar files in Manage Jenkins > In-process Script Approval.
Scripts using external class directories
Script Security Plugin doesn't support class directories.
If you refer external class directories from your scripts, you should
archive them into jar files.
It can be performed by running a following command:
jar -cf mylib.jar -C /path/to/classes .
You can use /path/to/mylib.jar as an additonal classpath for scripts.
Usage
The groovy script can use the variable manager, which provides various
methods to decorate your builds.
Those methods can be classified into whitelisted methods and
non-whitelisted methods.
You can always use Whitelisted methods, but you can use
Non-whitelisted methods only when "Enable groovy postbuild security"
is not enabled (version 1.X) or in scripts approved by administrators
(since version 2.x)
Whitelisted methods
- getEnvVariable(key) - get a variable value. (since 1.10)
- getResult() - get a build result string (like SUCCESS, FAILURE) (since 2.2)
- logContains(regexp) - returns true if the build log file contains a line matching regexp.
- getLogMatcher(regexp) - returns a java.util.regex.Matcher for the first occurrence of regexp in the build log file.
-
addShortText(text) - puts a badge with a short text, using the default format.
-
addShortText(text, color, background, border, borderColor) - puts a badge with a short text, using the specified format. For Colors supported, Google "html color names".
-
addBadge(icon, text) - puts a badge with the given icon and text. In addition to the 16x16 icons offered by Jenkins, groovy-postbuild provides the following icons (watch out for duplicates, see Example 5):
- completed.gif
- db_in.gif
- db_out.gif
- delete.gif
- error.gif
- folder.gif
- green.gif
- info.gif
- red.gif
- save.gif
- success.gif
- text.gif
- warning.gif
- yellow.gif
- addBadge(icon, text, link) - like addBadge(icon, text), but the Badge icon then actually links to the given link (since 1.8)
- addInfoBadge(text) - puts a badge with
info icon and the given text.
- addWarningBadge(text) - puts a badge with
warning icon and the given text.
- addErrorBadge(text) - puts a badge with
error icon and the given text.
- addHtmlBadge(html) - puts a badge with html source (since 2.5). Unsafe html codes will be removed.
- removeBadges() - removes all badges from the current build. It is
often used with
setBuildNumber
. - removeBadge(index) - removes the badge with the given index. It is
often used with
setBuildNumber
.
- buildUnstable() - sets the build result to UNSTABLE.
- buildFailure() - sets the build result to FAILURE.
- buildSuccess() - sets the build result to SUCCESS.
- buildIsA(klass) - test the build is a specified class (since 2.0)
Non-whitelisted methods
Methods returning non-primitive objects aren't whitelisted as groovy-postbuild doesn't ensure every methods of those objects are safe.
- hudson - the current Hudson instance (see hudson.model.Hudson).
- build - the current build (see hudson.model.AbstractBuild).
- listener - the build listener (see hudson.model.BuildListener).
-
envVars - the build variables map. You can get a variable value with
manager.envVars['varname']
You shouldn't update values. This isn't whitelisted, and it is recommended to use
getEnvVariable(key)
instead. (since 1.10)
- contains(file, regexp) - returns true if the given file contains a line matching regexp. Not whitelisted as it allows users access any files (for example, a file containing passwords).
- getMatcher(file, regexp) - returns a java.util.regex.Matcher for the first occurrence of regexp in the given file.
- setBuildNumber(number) - sets the build with the given number as current build. The current build is the target of all methods that add or remove badges and summaries or change the build result.
- createSummary(icon) - creates an entry in the build summary page and
returns a summary object corresponding to this entry. The icon
must be one of the 48x48
icons
offered by Jenkins. You can append text to the summary object by
calling its appendText methods. Be careful appending
HTML-unescaped texts as they can be harmful.
- appendText(text, escapeHtml)
- appendText(text, escapeHtml, bold, italic, color)
- removeSummaries() - removes all summaries from the current build.
- removeSummary(index) - removes the summary with the given index.
Rest interfaces
It is also possible to delete badges and summaries by using the following links:
- remove all badges:
http``://``your-jenkins``/job/``your-job``/``build-number``/parent/parent/plugin/groovy-postbuild/removeBadges
- remove all summaries:
http``://``your-jenkins``/job/``your-job``/``build-number``/parent/parent/plugin/groovy-postbuild/removeSummaries
- remove the badge with the given index:
http``://``your-jenkins``/job/``your-job``/``build-number``/parent/parent/plugin/groovy-postbuild/removeBadge?index=``idx
- remove the summary with the given index:
http``://``your-jenkins``/job/``your-job``/``build-number``/parent/parent/plugin/groovy-postbuild/removeSummary?index=``idx
Example usages

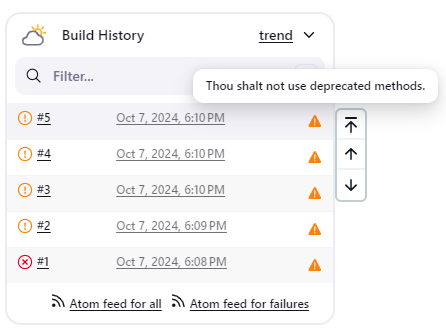

Example 1
The script below puts a warning badge and mark the build as unstable if it detects that deprecated methods were used.
if(manager.logContains(".*uses or overrides a deprecated API.*")) {
manager.addWarningBadge("Thou shalt not use deprecated methods.")
manager.createSummary("warning.gif").appendText("<h1>You have been warned!</h1>", false, false, false, "red")
manager.buildUnstable()
}
[TABLE]

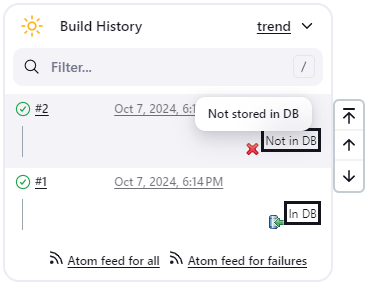

Example 2
Suppose we have a parameterized build, which uses the boolean parameter storeToDB in order to instruct the build to store some artifacts into the database. The script below puts a badge next to the builds for which this parameter is set.
if("true".equals(manager.build.buildVariables.get("storeToDB"))) {
manager.addBadge("db_in.gif", "Stored to DB")
}

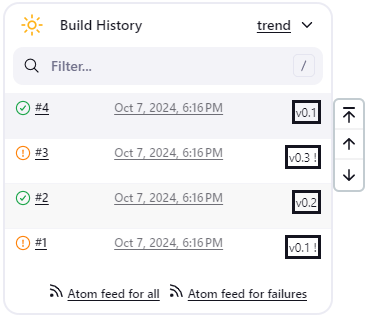

Example 3
Suppose we have a parameterized build, which uses the string parameter version. The script below puts a short text indicating the value of this parameter next to successful and unstable builds.
if(manager.build.result.isBetterOrEqualTo(hudson.model.Result.UNSTABLE)) {
manager.addShortText("v${manager.build.buildVariables.get('version')}")
}

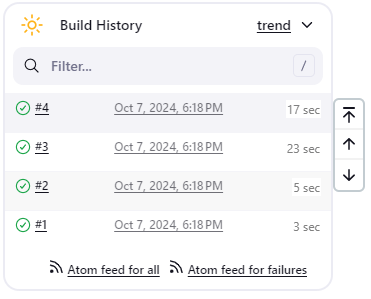

Example 4
The script below determines how long it took to build the project and displays the corresponding value as a short text next to each build.
def matcher = manager.getLogMatcher(".*Total time: (.*)\$")
if(matcher?.matches()) {
manager.addShortText(matcher.group(1), "grey", "white", "0px", "white")
}

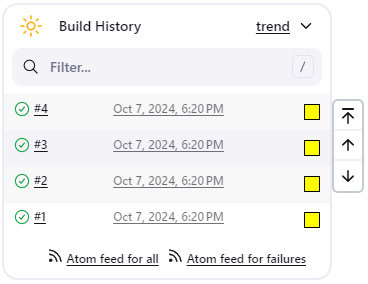

Example 5
For badges, you can choose from the 16x16 icons provided by Jenkins or from the icons provided by this plugin. Some of the names of groovy-postbuild icons conflict with the names of Jenkins icons (e.g. yellow.gif). For these icons, you have to provide the complete path (e.g. /images/16x16/yellow.gif), in case you want a badge with the Jenkins icon. You can also use icons provided by other plugins (e.g. Green Balls), by specifying the complete path to the icon.
manager.addBadge("star-gold.gif", "icon from Jenkins")
manager.addBadge("yellow.gif", "icon from groovy-postbuild plugin")
manager.addBadge("/images/16x16/yellow.gif", "icon from Jenkins")
manager.addBadge("/plugin/greenballs/16x16/green.gif", "icon from greenballs plugin")
Example 6
The script below displays on the build summary page all classes that use Sun proprietary API.
pattern = ~/.*src\/main\/java\/(.*)\.java:[^ ]* (.*) is Sun proprietary API and may be removed in a future release.*/
def map = [:]
manager.build.logFile.eachLine { line ->
matcher = pattern.matcher(line)
if(matcher.matches()) {
ownClass = matcher.group(1).replaceAll("/", ".")
sunClass = matcher.group(2)
map[ownClass] = sunClass
}
}
if(map.size() > 0) {
def summary = manager.createSummary("warning.gif")
summary.appendText("Classes using Sun proprietary API:<ul>", false)
map.each {
summary.appendText("<li><b>$it.key</b> - uses $it.value</li>", false)
}
summary.appendText("</ul>", false)
}
Example 7
The script below removes all badges and summaries from previous builds.
currentBuildNumber = manager.build.number
for(i=1; i<currentBuildNumber; i++) {
if(manager.setBuildNumber(i)) {
manager.removeBadges()
manager.removeSummaries()
}
}
Example 8
The script below marks the running build as deployed and the previous build as undeployed.
manager.addShortText("deployed")
manager.createSummary("gear2.gif").appendText("<h2>Successfully deployed</h2>", false)
currentBuildNumber = manager.build.number
if(manager.setBuildNumber(currentBuildNumber - 1)) {
actions = manager.build.actions
actions.each { action ->
if (action.metaClass.hasProperty(action, "text") && action.text.contains("deployed")) {
actions.remove(action)
}
}
currDate = new Date().dateTimeString
manager.addShortText("undeployed: $currDate", "grey", "white", "0px", "white")
manager.createSummary("gear2.gif").appendText("<h2>Undeployed: $currDate</h2>", false, false, false, "grey")
}
Example 9 (thanks to Ken Bertelson)
The script below changes the description of the first failed test.
def tr = manager.build.testResultAction.result
def cr = tr.failedTests.get(0)
cr.description = "My CaseResult desc"
Example 10 (thanks to Frank Merrow)
Trivial, but hard to find the first time: Write a line to the job's Console Output:
manager.listener.logger.println("I want to see this line in my job's output");
Issues
To report a bug or request an enhancement to this plugin please create a ticket in JIRA (you need to login or to sign up for an account). Also have a look on How to report an issue
Changelog
Version 2.5 (Jun 24, 2019)
-
Requires Jenkins-2.121.1 and later.
-
New feature:
addHtmlBadge
is available JENKINS-57917 - Getting issue details... STATUSmanager.addHtmlBadge('<i>Italic text</i>');
-
groovy-postbuild no longer requires Overall/Administer permission: JENKINS-54262 - Getting issue details... STATUS
- It caused problems when used with Authorize Project plugin
-
Suppress "WARNING: Avoid calling getLogFile on ..." when used in pipeline jobs.
- It gets warned since Pipeline Job Plugin 2.26.
Version 2.4.3 (Nov 18, 2018)
- FIX: removeSummary / removeSummaries doesn't work (throw UnsupportedOperationException) (JENKINS-54184)
Version 2.4.2 (Aug 8, 2018)
- FIX: removeBadge / removeBadges doesn't work (throw UnsupportedOperationException) (JENKINS-52043)
Version 2.4.1 (May 4, 2018)
- Have Build Monitor
Plugin
not to cause errors.
(JENKINS-50420)
- Introduced fake
GroovyPostbuildAction
. - The feature of build-monitor to cooperate with groovy-postbuild doesn't work yet. It requires the upcoming version of build-monitor plugin to have it work again.
- Introduced fake
Version 2.4 (Mar 25, 2018)
-
Now built for Jenkins-2.60.3 and later
-
Extract badge and summary features to Badge plugin (JENKINS-43992).
- You can use badge and summary features in pipeline only with badge-plugin. See Badge Plugin for more details.
-
Sanitize HTML in the badges.
- You no longer be able to use HTML expressions in badge contents.
-
Don't upgrade to this version if you use Build Monitor Plugin.
- Groovy-postbuild-2.4 breaks build-moitor-1.12 or earlier. Sorry.
- Please postpone upgrading groovy-postbuild till fixing this issue: JENKINS-50420
- No new features in groovy-postbuild-2.4, and you can use
groovy-postbuild-2.3.1.
- You can downgrade your groovy-postbuild in the Jenkins Plugin Management page.
- You can download earlier versions of groovy-postbuild from "Archives" link in https://plugins.jenkins.io/groovy-postbuild
-
Some classes are migrated to badge-plugin. Please change classes in your codes if you access those classes:
Old Class New Class org.jvnet.hudson.plugins.groovypostbuild.GroovyPostbuildAction com.jenkinsci.plugins.badge.action.BadgeAction org.jvnet.hudson.plugins.groovypostbuild.GroovyPostbuildSummaryAction com.jenkinsci.plugins.badge.action.BadgeSummaryAction
Version 2.3.1 (Feb 7, 2016)
- Dependency to pipeline (aka. workflow) is optional (JENKINS-32589).
Version 2.3 (Dec 27, 2015)
- Now built for Jenkins-1.609 and later
- Supports workflow
(JENKINS-26918)
- You can use
manager
in workflow scripts.
- You can use
Version 2.2.2 (Oct 17, 2015)
- Added MIT License (JENKINS-21270)
Version 2.2.1 (Aug 18, 2015)
- Improved the behavior with Template Project
Plugin
(JENKINS-21276)
- Prior versions disturbed the execution of Template Project Plugin when the build was failed (even if the groovy script succeeded).
Version 2.2 (Dec 19, 2014)
- added getResult() as a whitelisted method (JENKINS-25738)
Version 2.1 (Oct 25, 2014)
- You can access other plugins in groovy scripts (JENKINS-14154)
Version 2.0 (Sep 21, 2014)
- Changed target Jenkins core from 1.466 to 1.509.4.
- Introduced Script Security
Plugin.
(JENKINS-15212)
- You need reconfigure your projects or approve scripts. Have a look at #Migration from 1.X
- Added
manager.buildIsA(klcass)
. (JENKINS-24694)
Version 1.10 (July 26, 2014)
- added
envVars
andgetEnvVariable(key)
Version 1.9 (April 29, 2014)
- JENKINS-21924 Support run for matrix parent
- change log level for each search from info to fine
Version 1.8 (August 22, 2012)
- JENKINS-13024 Error in log indicating a missing descriptor
- added clickable badge
- Changed required Jenkins version to 1.466
Version 1.7 (May 2, 2012)
- JENKINS-13024 Error in log indicating a missing descriptor
Version 1.6
- JENKINS-9383 security - restrict access to internal objects
Can use now additional classpath for groovy postbuild scripts to have them in a central location. Scriptler Plugin?
Version 1.5 (November 5, 2011)
-
Remove a html tag from the config page which causes an error on IE 7 (JENKINS-10079)
