Job and Stage monitoring

Note: breaking change in version 3.0

Version 3.0 is listed as a breaking change in the Jenkins plugin update center. This is because the optional user/password for notifying influxDB now uses the credentials store instead of separate strings.

This is more secure, because otherwise the credentials are stored in plain text on the Jenkins master.

If you are using the influxDB feature (and using user/password) to will need to reconfigure the plugin to get them from a Jenkins credential after upgrading. If this does not apply to you, you don't need to do anything after upgrading.

Overview

This plugin automatically sends status notification for all stages in any pipeline job. You can configure the plugin to send status information to:

  • Github, to see per-stage build status from the PR page

  • InfluxDb or StatsD (for automatic monitoring of build health) for any pipeline job

For example:

pipeline {

  agent any

  stages {

    stage('Stage 1') {

      ...

    }

    stage('Stage 2') {

      ...

    }

    }

}

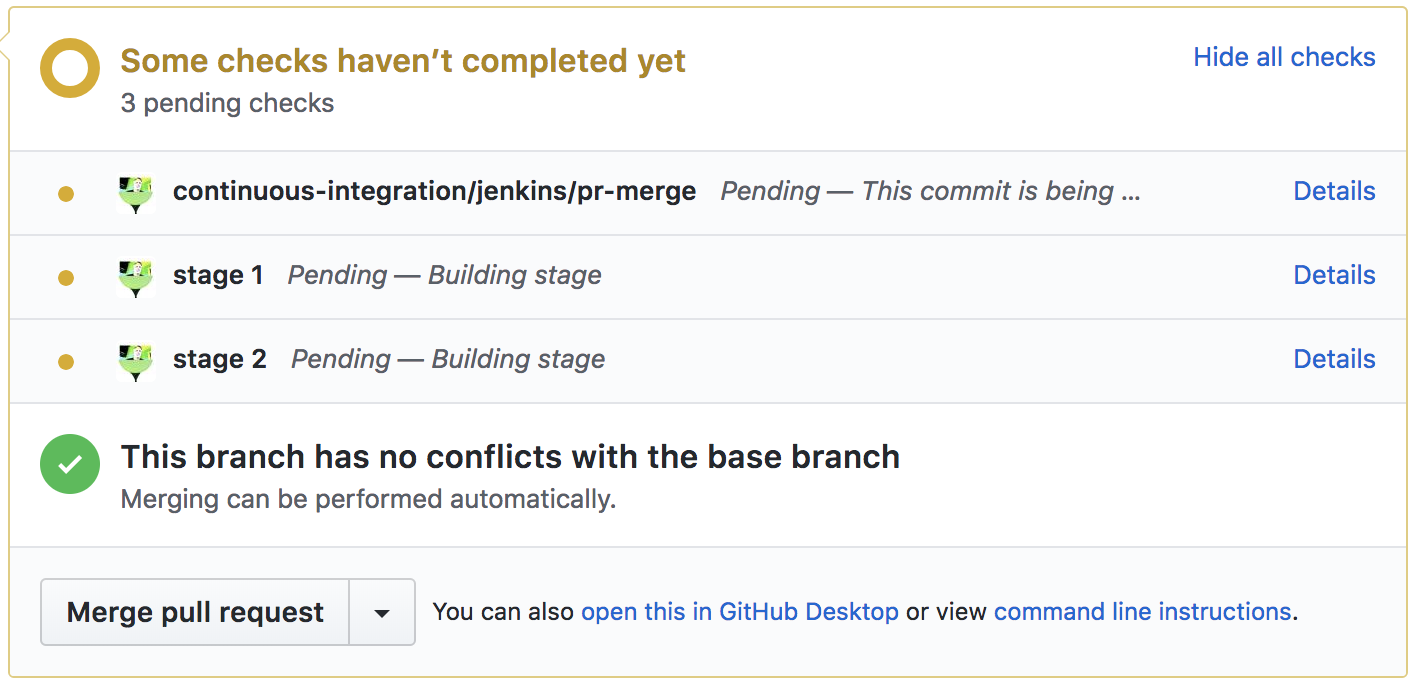

The github page for the commit will initially show pending for each stage:

{height="250"}

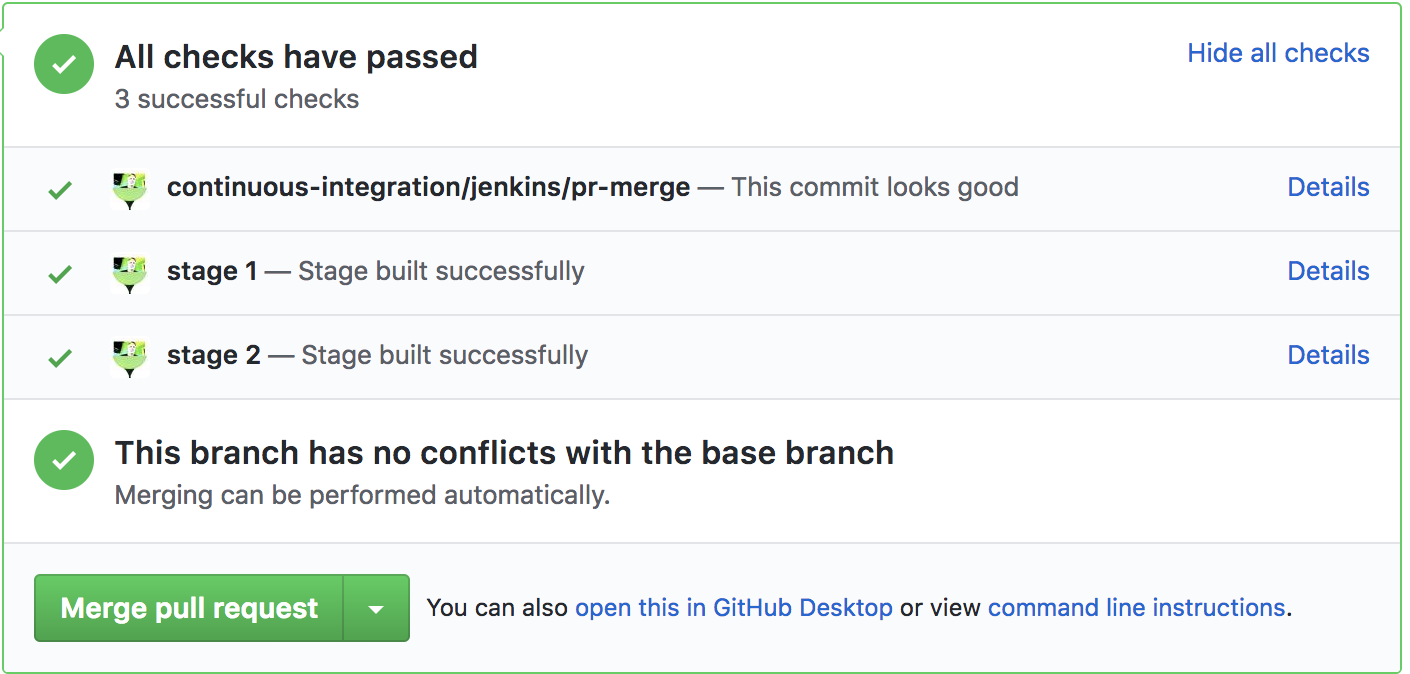

As each step is completed, the status will change to completed or error, depending on the outcome of the stage. At the end of a successful build, the PR page will show the following:

{height="250"}

Showing build health in Grafana

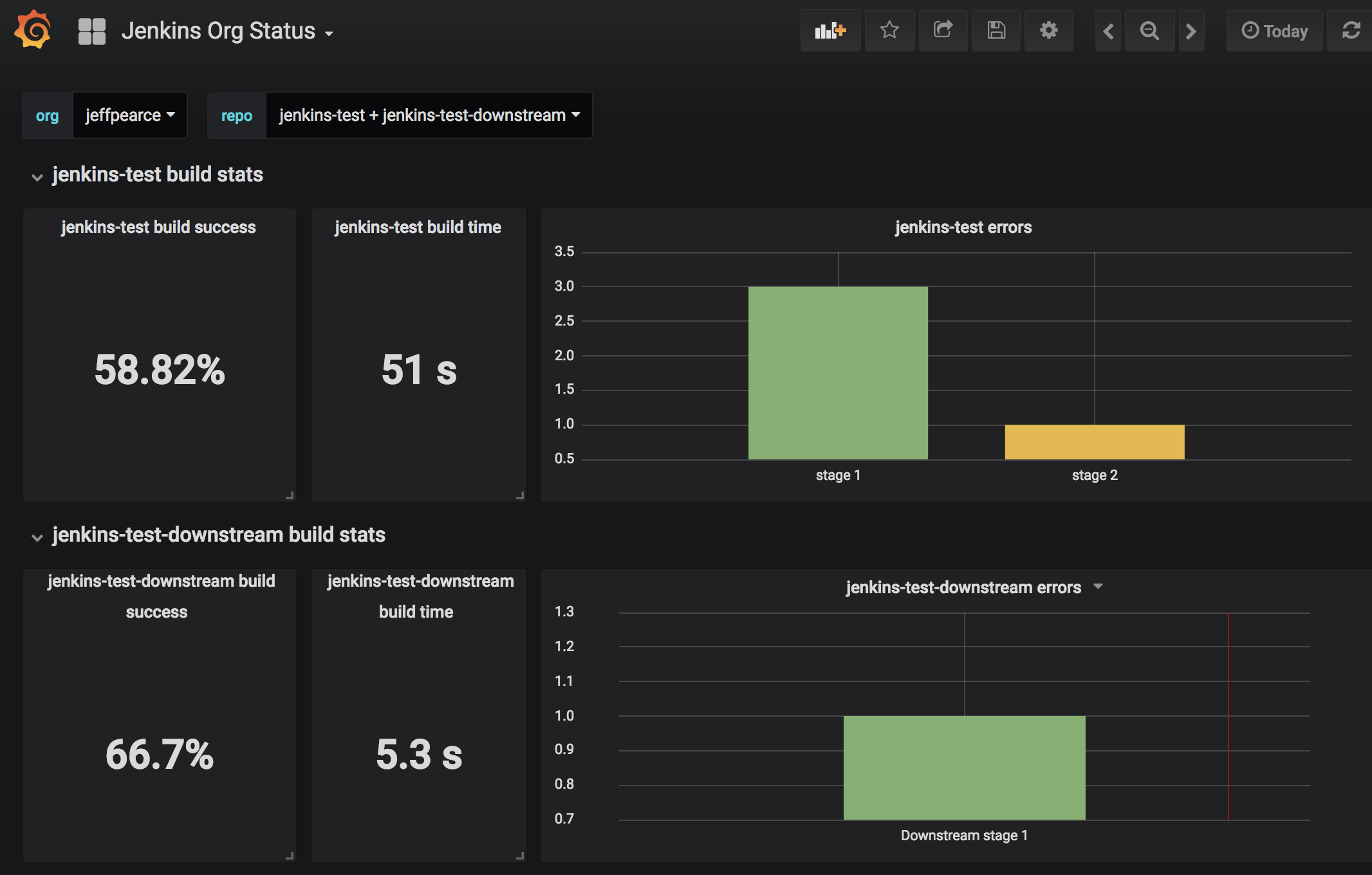

The plugin can optionally be configured to send job and stage status to an influxdb instance. This can be used to build dashboards in Grafana - you can use the provided sample dashboards as-is, or as a starting point for you own dashbaords. The sample dashboard shows overall build pass rate, average build time, and error counts for each stage.

{height="250"}

The dashboard can configured to show all jobs, or you can select the jobs you want to show.

Configuring the plugin to send stats to Grafana

By default, the plugin only provides status to Github. To enable reporting stats to influxdb for the Grafana dashboards:

  1. Open the system settings page in Jenkins (Manage Jenkins > Configure System)
  2. Find the Autostatus Config section
  3. Click the Send to influxdb option

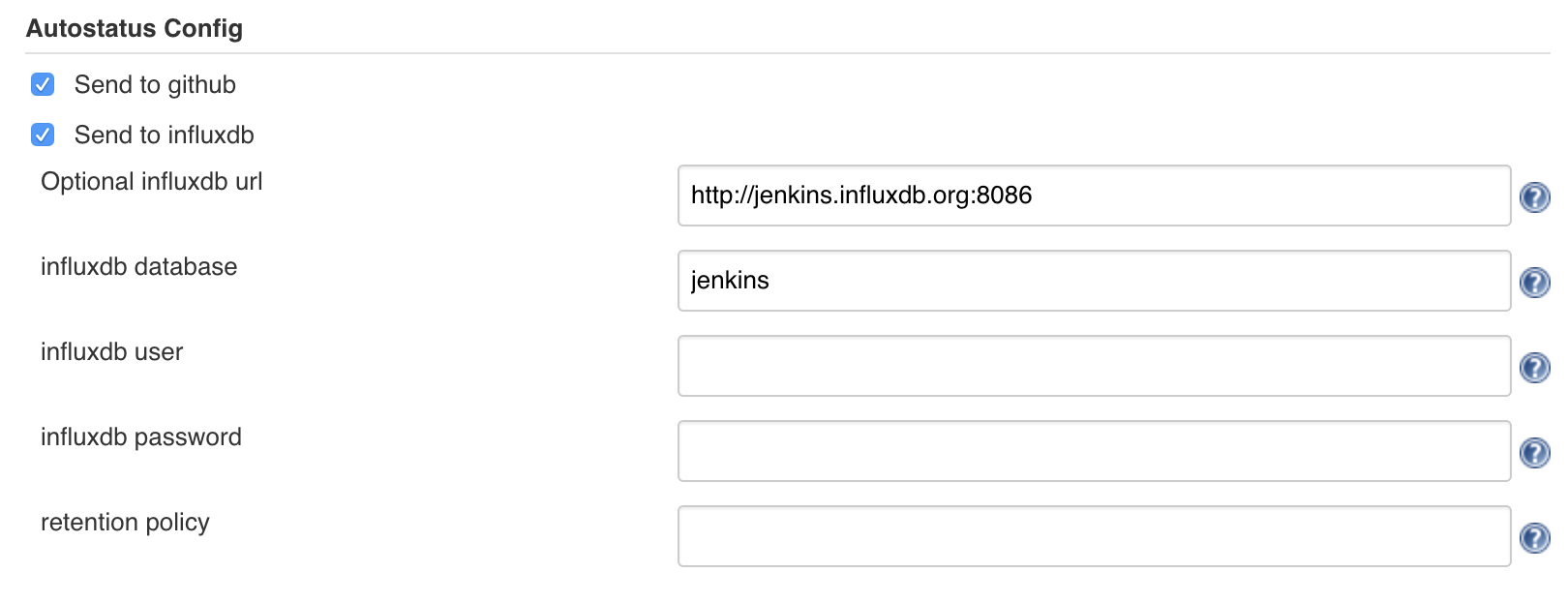

  4. Enter information for influxdb installation. You must provide the influxdb URL and database - all other information is optional.{height="250"}

Configuring the plugin to send stats to StatsD

As noted above, by default the plugin only provides status to Github. To enable reporting metrics to StatsD (introduced in 3.5.0):

  1. Open the system settings page in Jenkins (Manage Jenkins > Configure System)
  2. Find the Autostatus Config section
  3. Click the Send to statsd option

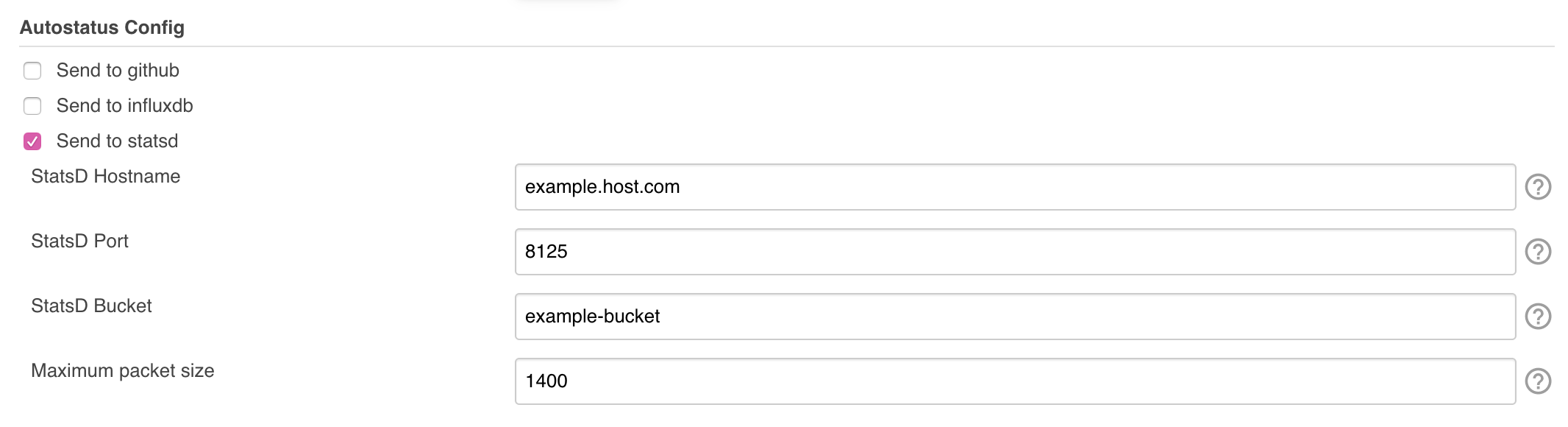

  4. Enter the relevant information for your StatsD collector. You can provide:
    1. StatsD Hostname
    2. StatsD Port
    3. StatsD Bucket
    4. Maximum packet size (optional, defaults to 1400)

{height="250"}

Importing the sample dashboard

A sample dashboard is available from grafana.com. The sample dashboard provides a dropdown for all of the orgs with stats, and a second dropdown for all of the repos within an org.

To import the sample dashboard (instructions current as of Grafana 5.0):

  1. Log into your grafana installation with a login that has permissions to create dashboards.
  2. Click the dashboard dropdown in the upper left of the page
  3. Click the Import dashboard link
  4. Enter the id 5786 in the Grafana.com Dashboard field
  5. Click the Load button
  6. Select the influxdb source that matches the database configured in Jenkins
  7. Click Import

Once you've imported the dashboard, just select the org you want to monitor, then select the repos you want to provide stats for.

The sample dashboard is just a starting point to demonstrate how the influxdb stats can be used to build dashboards. You can create dashboards that show more detailed information, such as graphs of build health over time. I'll continue to publish additional samples to grafana.com as time permits.

Version History

Version 3.5.0 (20-June-2019)

  • Added new feature to send metrics to StatsD collectors

Version 3.2 (13-Sept-2018)

  • don't include time spent blocked in total job time sent to influxdb (blocked time sent as a separate field).

Version 3.1.1 (05-Sept-2018)

  • update README, update center description, and wiki link

Version 3.1 (04-Sept-2018)

Version 3.0.1 (02-Sept-2018)

Version 3.0 (02-Aug-2018)

Version 2.1 (23-Apr-2018)

  • Add support for all pipelines (previously only supported declarative pipeline jobs).
  • Added support to send stats to an influxdb server for build monitoring

Version 2.0 (06-Feb-2018)

  • Removed unnecessary serialization of GHRepository

Version 1.0.1 (18-Oct-2017)

  • Minor updates

Version 1.0 (16-Oct-2017)

  • Initial release, supporting sending stage status to github for declarative pipeline branches only
