SQLPlus Script Runner

SQLPlus Script Runner

This plugin enables you run Oracle SQL*Plus scripts on your Jenkins jobs (user defined scripts or a script inside a workspace).

Oracle SQL*Plus installation required!

Java version: 11+

Releases

plugin version Java version description
3.x 11 Java 11 +
2.x 8 For mainly Jenkins 2.x, credentials plugins implemented and pipeline support
1.x 7 - For Jenkins 1.x

Quickstart

All you have to do is provide a valid ORACLE_HOME and you are in business:

Main Setup

You can run a script inside your workspace or a user defined for every job:

Job Setup

You can check later all SQL*Plus output inside your build output:

Script running inside a job

Download the last release and give it a try!

Using Pipeline

user defined script

node {
   echo 'SQLPlusRunner running user define script for system@xe'
   step([$class: 'SQLPlusRunnerBuilder',credentialsId:'system', instance:'xe',scriptType:'userDefined', script: '',scriptContent: 'select * from v$version'])
}

file script

node {
   echo 'SQLPlusRunner running file script for system@xe'
   step([$class: 'SQLPlusRunnerBuilder',credentialsId:'system', instance:'xe',scriptType:'file', script: 'start.sql',scriptContent: ''])
}

Optional parameters

parameter type description sample
customOracleHome varchar Custom ORACLE_HOME C:\ORACLE\BIN
customSQLPlusHome varchar Custom SQL*Plus (sqlplus/sqlplus.exe) location C:\SQLPLUS
customTNSAdmin varchar Custom TNS_ADMIN C:\TNS
customNLSLang varchar Custom customNLSLang ENGLISH_UNITED KINGDOM.WE8ISO8859P1
customSQLPath varchar Custom SQL_PATH C:\MYSCRIPTS
isSysDba boolean Enable login AS SYSDBA true
isHideSQLPlusVersion boolean EDisable SQL*Version test true

Developer guide

  1. Fork repository
  2. Code code code
  3. Run it with:
  • mvn clean
  • mvn -DskipTests package
  • mvn generate-sources (convert Message*.properties into Messages.java)
  • mvn compiler:compile
  • mvn -DskipTests package hpi:run
  1. Try it at http://localhost:8080
  2. Commit and submit pull request

Translator guide

  1. Fork repository
  2. Copy config.properties to config_.properties (example: config_pt_BR.properties)
  3. Copy global.properties to global_.properties
  4. Copy Messages.properties to Messages_.properties
  5. Copy all HTML files too
  6. Translate it
  7. Run it with:
  • mvn clean -DskipTests package hpi:run
  1. Try it at http://localhost:8080
  2. Commit and submit pull request

Having problems?

Please open a new issue and inform:

  • Jenkins server Operation System;
  • Jenkins version;
  • Where SQLPlus Script Runner is running (local machine or agent machine);
  • Agent machine Operation System (if applicable);
  • Oracle Database version;
  • Oracle SQL*Plus version;
  • Build log with debug info enabled.

Migration Guide from 1.x

To migrate your workspace from version 2 is very simple, all you need todo is:

  1. Create a credential for your user and password;
  2. Edit you job configuration and select one credential;
  3. Save your changes and you are good to go!

Configuration

Global

All you have to do is check the auto detect ORACLE_HOME option ( or a valid ORACLE_HOME ) and you are in business:

If you are having problems try to enable Debug info to see what is going on.

By Job

You can run a script inside your workspace or a user defined for every job:

Version 1.x:

Version 2.x :

Environment variables

Pay attention to what version you are using in order to work with variables:

variable Version 1.x Version 2.x
user ok replaced by credentials
password ok replaced by credentials
instance ok ok

You can use global variables for user and instance, first creating it in Jenkins→ configuration :

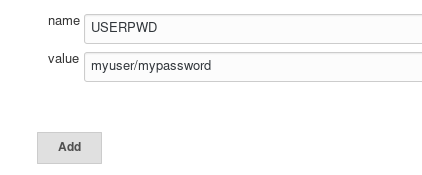

You user global variable can hold username and password as well like this (username/password):

And then using it:

Running

You can check later all SQL*Plus output inside your build output:

Reported problems

my script takes forever to execute...

Windows users sometimes get a running script stuck on build, even though they run everything on Oracle.

In that case you should use BuildTime Outplugin together to get everything working fine.

I have an error ORA-????

You should try running manually SQL*Plus before use Jenkins.

Sometimes on Linux Jenkins has his own Operation System user with his own variables.

Every time I get this error: *cannot find sqlplus *

Jenkins plugin can't find SQL*Plus executable file.

You should do in this order:

  1. Stop Jenkins;

  2. Find where are sqlplus executable file (usually at $ORACLE_HOME);

  3. Check if they have proper permissions (chmod 755 *);

  4. Create a global environment variable ORACLE_HOME like this: **export ORACLE_HOME=/oracle/app/oracle/product/12.1.0/dbhome_1/ ** or
    export ORACLE_HOME=<your-sqlplus-directory>

  5. Test your environment with: *sqlplus -v * , should return SQL*Plus version like SQL*Plus: Release 12.1.0.1.0 Production

  6. Start Jenkins;

  7. Use the try to detect ORACLE_HOME option;

  8. Retry your SQL*Plus operation.

Every time I get this error: libsqlplus.so: cannot open shared object file: No such file or directory or SP2-0667: Message file sp1.msb not found

SQL*Plus need its library and its message file to work properly.

You should do in this order:

  1. Stop Jenkins;

  2. Find where are libsqlplus.so files (usually at $ORACLE_HOME\lib );

  3. Check if they have proper permissions (chmod 755 *);

  4. Create a global environment variable LD_LIBRARY_PATH like this:
    **export LD_LIBRARY_PATH=$ORACLE_HOME/lib:$LD_LIBRARY_PATH **
    or export LD_LIBRARY_PATH=<your-libsqlplus-directory>:$LD_LIBRARY_PATH

  5. Test your environment with: *sqlplus -v * , should return SQL*Plus version like SQL*Plus: Release 12.1.0.1.0 Production

  6. Start Jenkins;

  7. Use the try to detect ORACLE_HOME option;

  8. Retry your SQL*Plus operation.

I want to hide my user / password from Console Output

  1. Install Mask Passwords Plugin;

  2. Setup to hide everything you want.

I have a bug to report

Please open a newissue and inform:

  • sqlplus-script-runner-plugin version;
  • Jenkins server Operation System;
  • Jenkins version ;
  • Where SQLPlus Script Runner is running (local machine or slave machine);
  • Slave machine Operation System (if applicable);
  • Oracle Database version;
  • Oracle SQL*Plus version;
  • Build log with debug info enabled.
